Adapter, Breakout Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Proto Board Type | Package Accepted | Number of Positions | Pitch | Board Thickness | Material | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

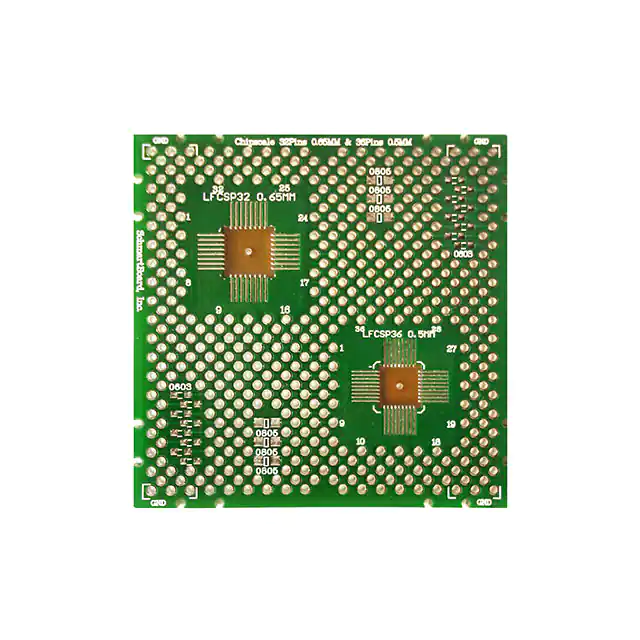

202-0043-01QFN SCHMARTBOARDEZ 36 PINS .5MM Schmartboard, Inc. |
4,697 | 10.00 |
|
Datasheet |
- | Bag | Active | SMD to Plated Through Hole Board | QFN | 32 | 0.026" (0.65mm) | - | - | 2.000" L x 2.000" W (50.80mm x 50.80mm) |
|

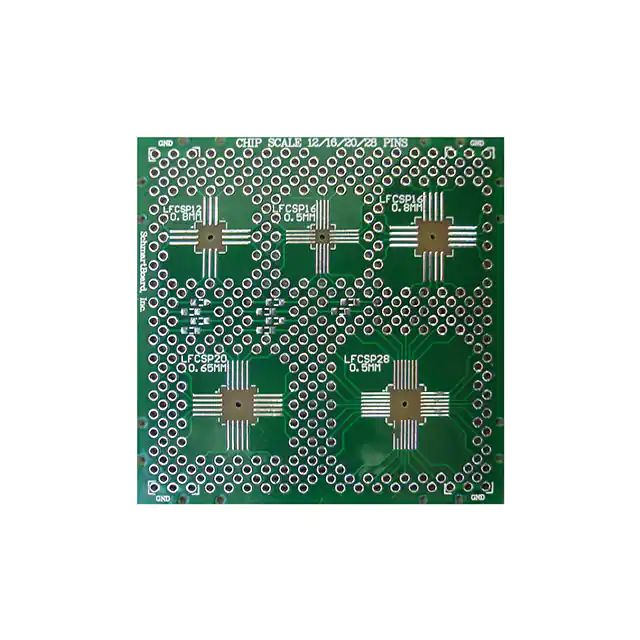

202-0042-01QFN SCHMARTBOARDEZ .5MM - 16 AND Schmartboard, Inc. |
2,880 | 10.00 |
|
Datasheet |
- | Bag | Active | SMD to Plated Through Hole Board | QFN | 20 | 0.020" (0.50mm) | - | - | 2.000" L x 2.000" W (50.80mm x 50.80mm) |
|

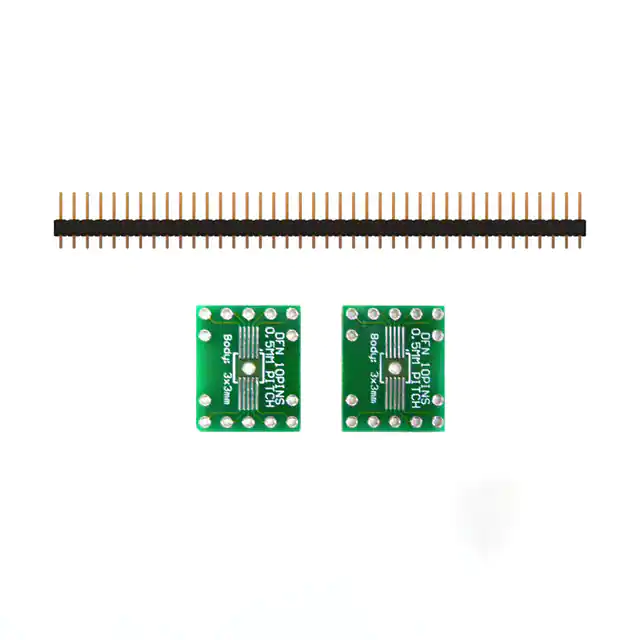

204-0022-01SCHMARTBOARDEZ 0.5MM PITCH 10 PI Schmartboard, Inc. |
1,725 | 6.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | DFN | 10 | 0.020" (0.50mm) | - | - | 1.000" L x 0.595" W (25.40mm x 15.11mm) |
|

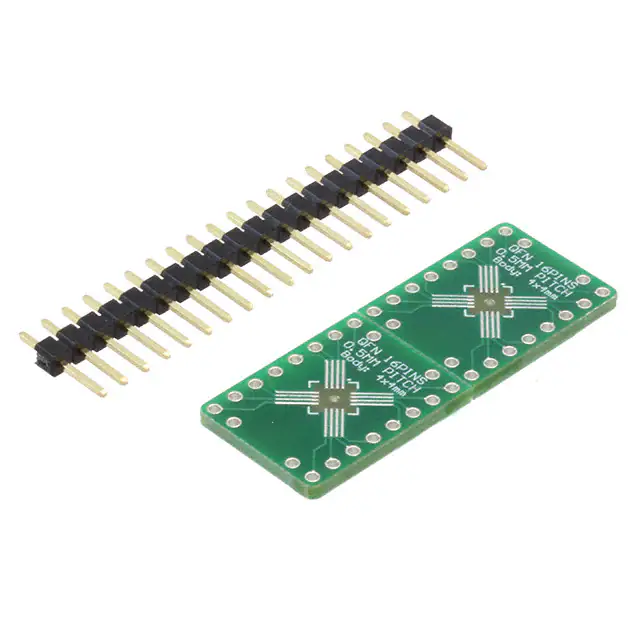

204-0026-01SCHMARTBOARDEZ .5MM PITCH, 16 PI Schmartboard, Inc. |
2,658 | 6.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | QFN, QFP | 16 | 0.020" (0.50mm) | - | - | 0.160" L x 0.600" W (4.06mm x 15.24mm) |
|

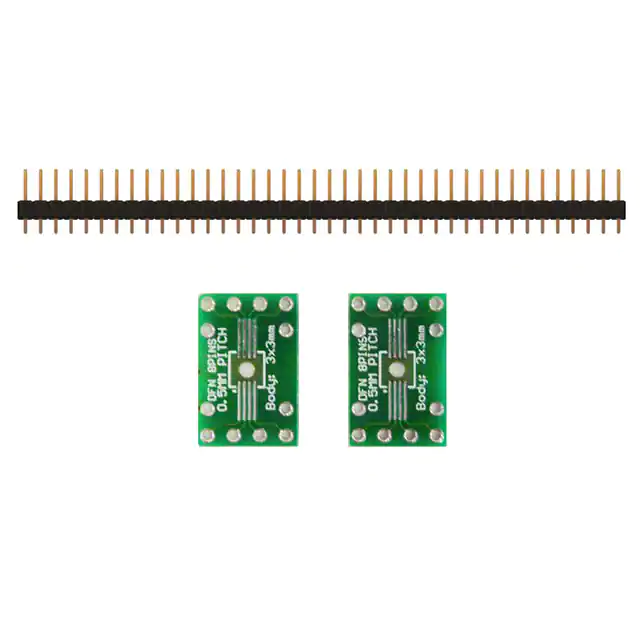

204-0021-01SCHMARTBOARDEZ 0.5MM PITCH 8 PIN Schmartboard, Inc. |
3,349 | 6.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | DFN | 8 | 0.020" (0.50mm) | - | - | 0.790" L x 0.595" W (20.07mm x 15.11mm) |
|

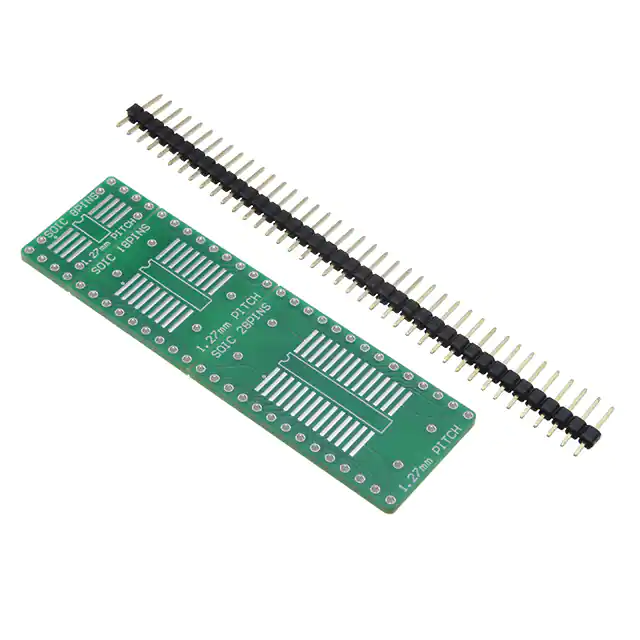

204-0004-01SCHMARTBOARDEZ 1.27MM PITCH SOIC Schmartboard, Inc. |
3,008 | 6.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | SOIC | - | 0.050" (1.27mm) | - | - | 2.690" L x 0.790" W (68.33mm x 20.07mm) |
|

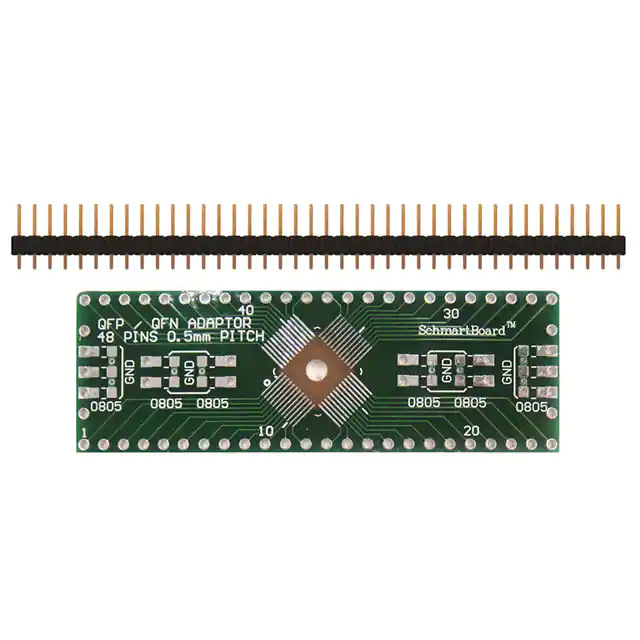

204-0014-01SCHMARTBOARDEZ .5MM PITCH, 48 PI Schmartboard, Inc. |
1,842 | 6.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | QFN, QFP | 48 | 0.020" (0.50mm) | - | - | 2.390" L x 0.795" W (60.71mm x 20.19mm) |
|

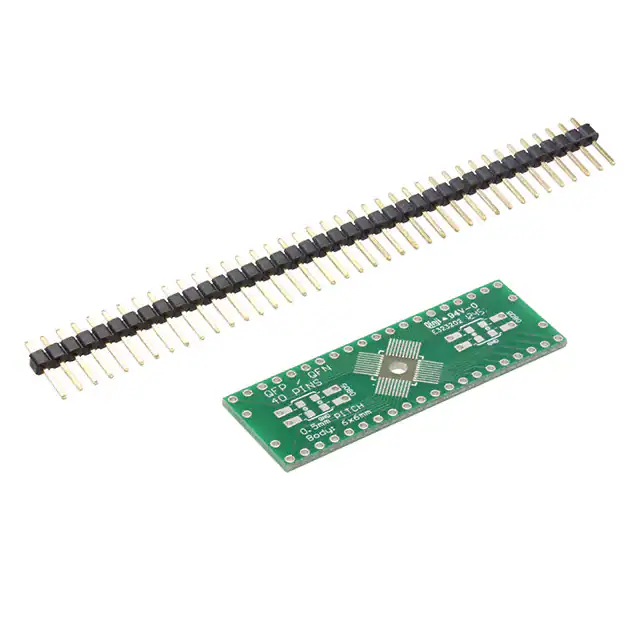

204-0044-01SCHMARTBOARDEZ 0.5MM PITCH 40 PI Schmartboard, Inc. |
4,264 | 6.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | QFN, QFP | 40 | 0.020" (0.50mm) | - | - | 1.990" L x 0.695" W (50.55mm x 17.65mm) |
|

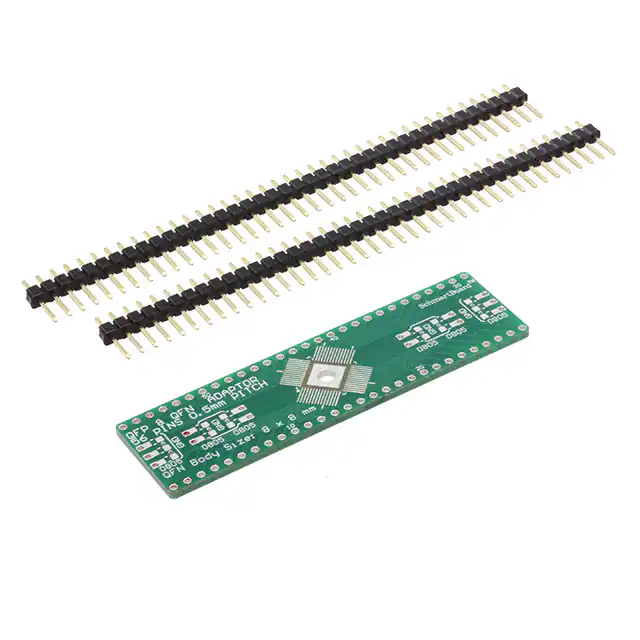

204-0019-01SCHMARTBOARDEZ .5MM PITCH, 56 PI Schmartboard, Inc. |
1,569 | 6.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | QFN, QFP | 56 | 0.020" (0.50mm) | - | - | 2.800" L x 0.795" W (71.12mm x 20.19mm) |
|

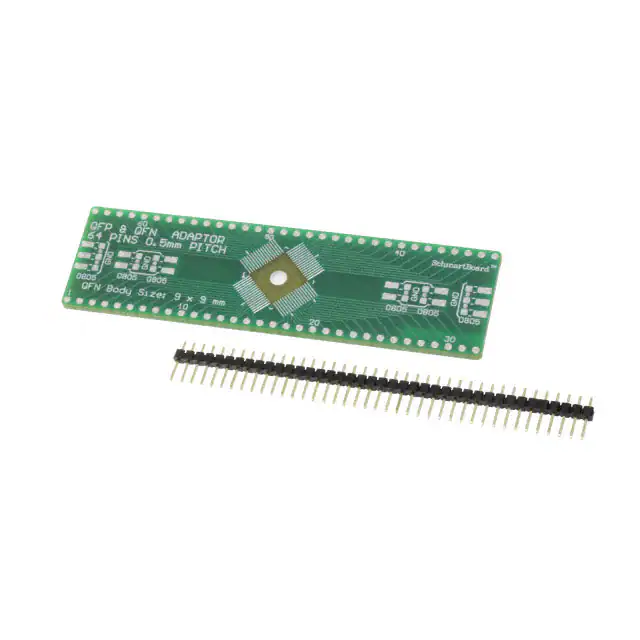

204-0018-01SCHMARTBOARDEZ .5MM PITCH, 64 PI Schmartboard, Inc. |
1,324 | 7.00 |
|
Datasheet |
- | Bag | Active | SMD to DIP | QFN, QFP | 64 | 0.020" (0.50mm) | - | - | 3.200" L x 0.895" W (81.28mm x 22.73mm) |
