Home > Products > Inductors, Coils, Chokes > Arrays, Signal Transformers

Arrays, Signal Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height
PF0552.823NLT INDUCT ARRAY 2 COIL 84UH SMD Pulse Electronics	4,046	1.16	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	84 µH	330 µH	±20%	2.4 A	1.2 A	2.4 A	1.2 A	130mOhm Max	530mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.236" (6.00mm)
PF0552.105NLT INDUCT ARRAY 2 COIL 1MH SMD Pulse Electronics	3,755	1.16	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	1 mH	4 mH	±20%	650 mA	320 mA	700 mA	350 mA	1.6Ohm Max	6.4Ohm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.236" (6.00mm)
PF0552.334NLT INDUCT ARRAY 2 COIL 340UH SMD Pulse Electronics	1,639	1.16	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	340 µH	1.3 µH	±20%	1.2 A	610 mA	1.2 A	620 mA	470mOhm Max	1.9Ohm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.236" (6.00mm)
PF0552.474NLT INDUCT ARRAY 2 COIL 470UH SMD Pulse Electronics	3,929	1.16	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	470 µH	1.9 mH	±20%	1 A	510 mA	1 A	510 mA	690mOhm Max	2.7Ohm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.236" (6.00mm)
PF0553.683NLT INDUCT ARRAY 2 COIL 66UH SMD Pulse Electronics	3,862	1.21	RFQ	Datasheet	PF0553NL	Nonstandard	Tape & Reel (TR)	Active	2	66 µH	270 µH	±20%	2.4 A	1.2 A	4.4 A	2.2 A	110mOhm Max	420mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
PF0553.222NLT INDUCT ARRAY 2 COIL 2UH SMD Pulse Electronics	1,119	1.21	RFQ	Datasheet	PF0553NL	Nonstandard	Tape & Reel (TR)	Active	2	2 µH	8.1 µH	±20%	13 A	6.2 A	25 A	13 A	3.7mOhm Max	15mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
PF0553.224NLT INDUCT ARRAY 2 COIL 220UH SMD Pulse Electronics	1,012	1.21	RFQ	Datasheet	PF0553NL	Nonstandard	Tape & Reel (TR)	Active	2	220 µH	890 µH	±20%	1.3 A	630 mA	2.4 A	1.2 A	380mOhm Max	1.5Ohm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)

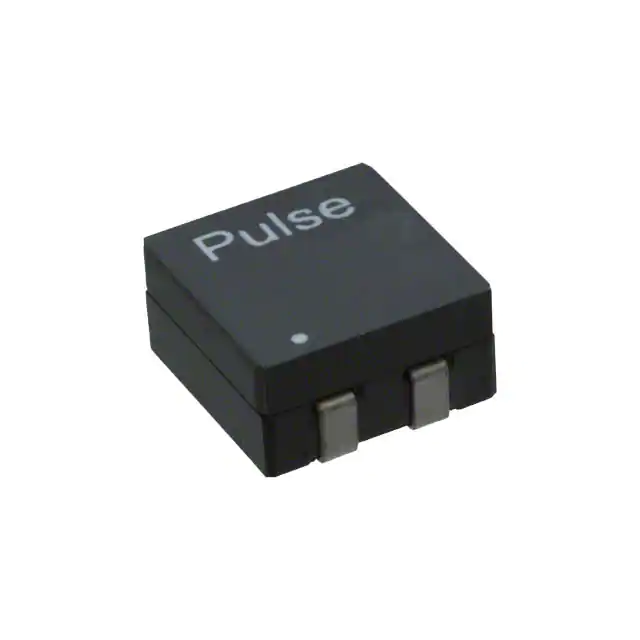

PA0766.341NLT INDUCT ARRAY 2 COIL 160NH SMD Pulse Electronics	4,702	0.00	RFQ	Datasheet	PA0766NL	Nonstandard	Tape & Reel (TR)	Obsolete	2	160 nH	700 nH	±20%	-	-	-	-	-	-	-	-	-	Surface Mount	0.551" L x 0.531" W (14.00mm x 13.50mm)	0.276" (7.00mm)
PA0766.421NLT INDUCT ARRAY 2 COIL 218NH SMD Pulse Electronics	4,298	1.28	RFQ	Datasheet	PA0766NL	Nonstandard	Tape & Reel (TR)	Obsolete	2	218 nH	870 nH	±20%	50 A	25 A	50 A	25 A	0.38mOhm Max	1.5mOhm Max	Unshielded	-	-40°C ~ 130°C	Surface Mount	0.551" L x 0.531" W (14.00mm x 13.50mm)	0.276" (7.00mm)
P0400NL INDUCT ARRAY 2 COIL 18.5UH SMD Pulse Electronics	2,940	1.59	RFQ	Datasheet	Tomcat	Nonstandard	Tube	Active	2	18.5 µH	74.1 µH	±20%	5.4 A	2.7 A	-	-	23.24mOhm	93mOhm	Unshielded	-	-40°C ~ 130°C	Surface Mount	0.715" L x 0.590" W (18.16mm x 14.99mm)	0.310" (7.87mm)

Total 126 Record«Prev 1... 4 5 6 789 10 11...13 Next»
