Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-24S-R-XRELAY AUTOMOTIVE SPST 130A 24V Picker Components |
1,322 | 0.00 |
|
Datasheet |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

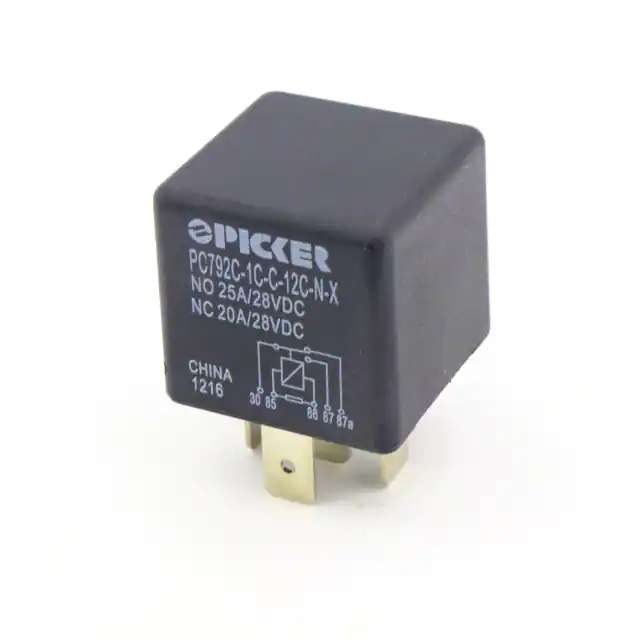

PC792C-1C-C-12C-N-XRELAY AUTOMOTIVE SPDT 50A 12V Picker Components |
4,759 | 2.93 |
|
Datasheet |
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
PC775-1A-24C-XRELAY AUTOMOTIVE SPST 75A 24V Picker Components |
3,141 | 0.00 |
|
Datasheet |
PC775 | Tray | Active | Non Latching | 120 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 15.6 VDC | 4.8 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12S-D-XRELAY AUTOMOTIVE SPST 130A 12V Picker Components |
2,776 | 0.00 |
|
Datasheet |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12S-R-XRELAY AUTOMOTIVE SPST 130A 12V Picker Components |
3,366 | 0.00 |
|
Datasheet |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

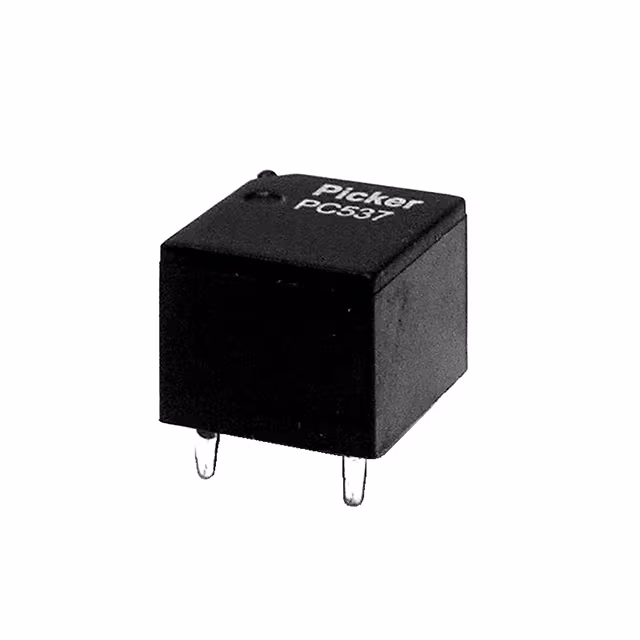

PC537-1A-12S-XRELAY AUTOMOTIVE SPST 30A 12V Picker Components |
3,650 | 0.72 |
|
Datasheet |
- | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
PC565-1C-12-XRELAY AUTOMOTIVE SPDT 25A 12V Picker Components |
4,232 | 0.76 |
|
Datasheet |
- | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
PC537-1C-12H-XRELAY AUTOMOTIVE SPDT 30A 12V Picker Components |
1,991 | 1.14 |
|
Datasheet |
- | Bag | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|

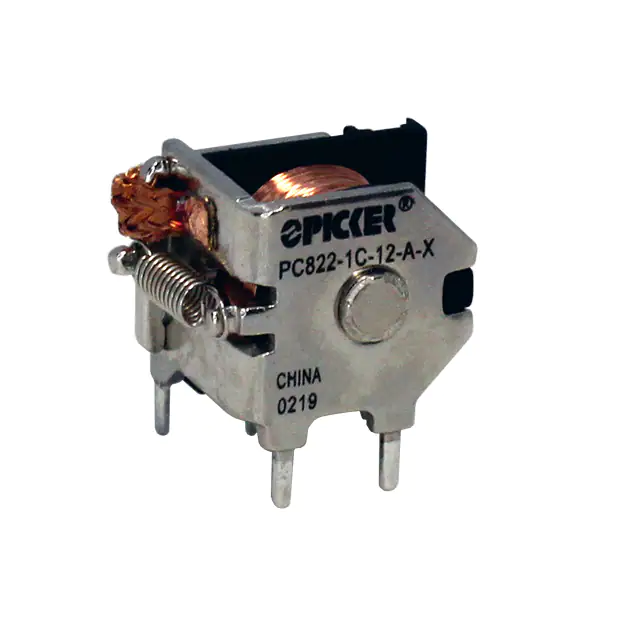

PC822-1C-12-A-XRELAY AUTOMOTIVE SPDT 45A 12V Picker Components |
3,818 | 1.25 |
|
Datasheet |
- | Tube | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
PC782-1C-12S-XRELAY AUTOMOTIVE SPDT 30A 12V Picker Components |
2,006 | 1.50 |
|
Datasheet |
- | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
