Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

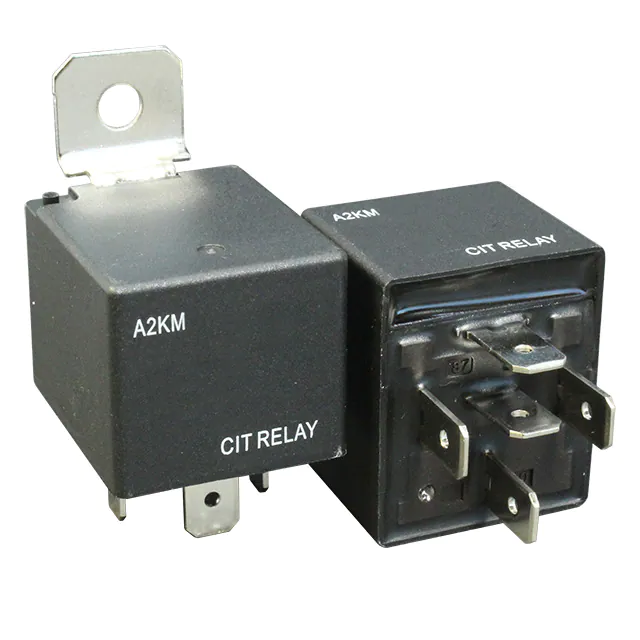

A2KM1CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 120A 12V CIT Relay and Switch |
2,639 | 4.83 |
|
Datasheet |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2KM1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 120A 12V CIT Relay and Switch |
1,868 | 4.83 |
|
Datasheet |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2KM1CSP24VDC1.6DRELAY AUTOMOTIVE SPDT 120A 24V CIT Relay and Switch |
4,976 | 4.90 |
|
Datasheet |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2KM1CSP24VDC1.6RRELAY AUTOMOTIVE SPDT 120A 24V CIT Relay and Switch |
1,968 | 4.90 |
|
Datasheet |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
A3K1ACQ12VDC1.6RELAY AUTOMOTIVE SPST 150A 12V CIT Relay and Switch |
3,886 | 5.43 |
|
Datasheet |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 150A 24V CIT Relay and Switch |
2,759 | 5.49 |
|
Datasheet |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 150A 12V CIT Relay and Switch |
1,145 | 5.49 |
|
Datasheet |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 150A 12V CIT Relay and Switch |
4,450 | 5.49 |
|
Datasheet |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3KM1ACQ12VDC1.6RELAY AUTOMOTIVE SPST 150A 12V CIT Relay and Switch |
2,730 | 5.53 |
|
Datasheet |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 150A 24V CIT Relay and Switch |
3,200 | 5.54 |
|
Datasheet |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
