Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SC5606-T1-ARF TRANS NPN 3.3V 21GHZ SOT523 |
4,760 | 0.00 |
|
- |
- | SOT-523 | Tape & Reel (TR) | Obsolete | NPN | 3.3V | 21GHz | 1.2dB @ 2GHz | 14dB | 115mW | 60 @ 5mA, 2V | 35mA | 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
NE856M02-T1-AZRF TRANS NPN 12V 6.5GHZ SOT89 |
2,333 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 12V | 6.5GHz | 1.1dB @ 1GHz | 12dB | 1.2W | 50 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
MRF553GRF TRNS NPN 16V 175MHZ PWR MACRO |
3,384 | 0.00 |
|
Datasheet |
- | Power Macro | Bulk | Obsolete | NPN | 16V | 175MHz | - | 11dB ~ 13dB | 3W | 30 @ 250mA, 5V | 500mA | - | - | - | Surface Mount | Power Macro |
|
|
MRF553RF TRANS NPN 16V 175MHZ |
7,922 | 0.00 |
|
Datasheet |
- | - | Bulk | Obsolete | NPN | 16V | 175MHz | - | 11.5dB | 3W | 30 @ 250mA, 5V | 500mA | - | - | - | - | - |
|
BFP 650F E6327RF TRANS NPN 4.5V 42GHZ 4TSFP |
3,457 | 0.00 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | NPN | 4.5V | 42GHz | 0.8dB ~ 1.9dB @ 1.8GHz ~ 6GHz | 11dB ~ 21.5dB | 500mW | 110 @ 80mA, 3V | 150mA | 150°C (TJ) | - | - | Surface Mount | 4-TSFP |
|
BFR 705L3RH E6327RF TRANS NPN 4.7V 39GHZ TSLP-3 |
7,521 | 0.00 |
|
Datasheet |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN | 4.7V | 39GHz | 0.5dB ~ 0.8dB @ 1.8GHz ~ 6Ghz | 25dB | 40mW | 160 @ 7mA, 3V | 10mA | 150°C (TJ) | - | - | Surface Mount | PG-TSLP-3 |
|
|
NE46134-T1-AZRF TRANS NPN 15V 5.5GHZ SOT89 |
9,233 | 0.00 |
|
- |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 15V | 5.5GHz | 1.5dB ~ 2dB @ 500MHz ~ 1GHz | 7dB | 2W | 40 @ 50mA, 10V | 250mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
NE664M04-T2-ARF TRANS NPN 5V 20GHZ SOT343F |
5,603 | 0.00 |
|
Datasheet |
- | SOT-343F | Tape & Reel (TR) | Obsolete | NPN | 5V | 20GHz | - | 12dB | 735mW | 40 @ 100mA, 3V | 500mA | 150°C (TJ) | - | - | Surface Mount | SOT-343F |
|
|
2SC4536-T1-AZRF TRANS NPN 15V 5.5GHZ SOT89 |
6,317 | 0.00 |
|
- |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 15V | 5.5GHz | 2dB @ 1GHz | 7dB | 2W | 40 @ 50mA, 10V | 250mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|

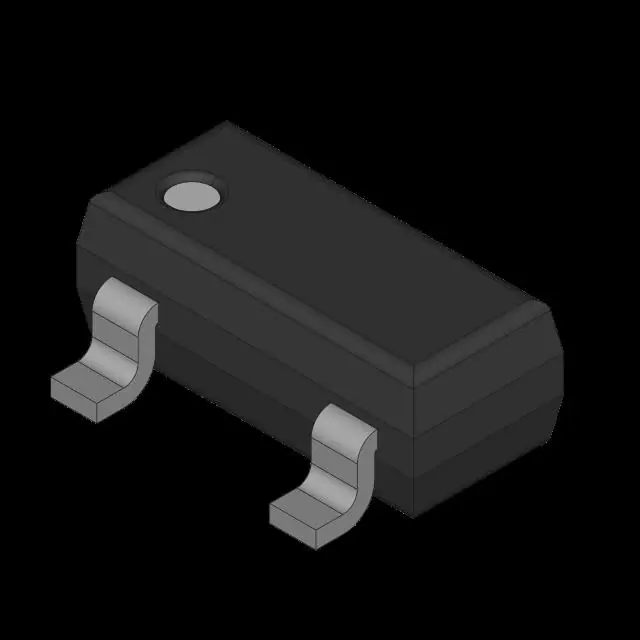

2SC5754-T2-ARF TRANS NPN 5V 20GHZ SOT343F |
4,778 | 0.00 |
|
Datasheet |
- | SOT-343F | Tape & Reel (TR) | Obsolete | NPN | 5V | 20GHz | - | 6.5dB | 735mW | 40 @ 100mA, 3V | 500mA | 150°C (TJ) | - | - | Surface Mount | SOT-343F |
|
BFQ790H6327XTSA1RF TRANS NPN 6.1V 1.85GHZ SOT89 |
2,937 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 6.1V | 1.85GHz | 2.6dB @ 1.8GHz | 17dB | 1.5W | 60 @ 250mA, 5V | 300mA | - | - | - | Surface Mount | PG-SOT89 |
SOT223-1.jpg)
|
BLT81,115RF TRANS NPN 9.5V 900MHZ SOT223 |
6,351 | 0.00 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | NPN | 9.5V | 900MHz | - | 8dB | 2W | 25 @ 300mA, 5V | 500mA | 175°C (TJ) | - | - | Surface Mount | SC-73 |
|
|
NE461M02-T1-AZRF TRANS NPN 15V SOT89 |
4,944 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 15V | - | 1.5dB ~ 2dB @ 500MHz ~ 1GHz | 8.3dB | 2W | 60 @ 50mA, 10V | 250mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
|
BLT50,115RF TRANS NPN 10V 470MHZ SOT223 |
3,670 | 0.00 |
|
- |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | NPN | 10V | 470MHz | - | - | 2W | 25 @ 300mA, 5V | 500mA | 175°C (TJ) | - | - | Surface Mount | SC-73 |
|
2N5109 PBFREERF TRANS NPN 20V 1.2GHZ TO39 |
9,518 | 0.00 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Obsolete | NPN | 20V | 1.2GHz | 3dB @ 200MHz | - | 1W | 40 @ 50mA, 15V | 400mA | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-39 |
|
MAX2601ESA-TRF TRANS NPN 15V 1GHZ 8SOIC |
2,582 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | NPN | 15V | 1GHz | 3.3dB @ 836MHz | 11.6dB | 6.4W | 100 @ 250mA, 3V | 1.2A | 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
MAX2602ESA-TRF TRANS NPN 15V 1GHZ 8SOIC |
6,356 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | NPN | 15V | 1GHz | 3.3dB @ 836MHz | 11.6dB | 6.4W | 100 @ 250mA, 3V | 1.2A | 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
MRF5812GR2RF TRANS NPN 15V 5GHZ 8SO |
6,034 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NPN | 15V | 5GHz | 2dB ~ 3dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 50 @ 50mA, 5V | 200mA | - | - | - | Surface Mount | 8-SOIC |
|
|
MRF5812GR1RF TRANS NPN 15V 5GHZ 8SO |
9,102 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NPN | 15V | 5GHz | 2dB ~ 3dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 50 @ 50mA, 5V | 200mA | - | - | - | Surface Mount | 8-SOIC |
|
2N2369SMALL-SIGNAL BJT |
9,407 | 0.00 |
|
- |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Active | NPN | 15V | - | - | - | 680mW | 40 @ 10mA, 1V | 200mA | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-18 (TO-206AA) |
