Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KSC1730YBURF TRANS NPN 15V 1.1GHZ TO92-3 |
7,574 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 15V | 1.1GHz | - | - | 250mW | 120 @ 5mA, 10V | 50mA | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
MMBT5770RF TRANS NPN 15V 600MHZ SOT23-3 |
6,102 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 15V | 600MHz | - | - | 225mW | 30 @ 3mA, 1V | 10mA | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
MMBTH34RF TRANS NPN 40V 500MHZ SOT23-3 |
5,785 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 40V | 500MHz | - | - | 225mW | 15 @ 20mA, 2V | 50mA | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
PN3563RF TRANS NPN 15V 1.5GHZ TO92-3 |
8,623 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 15V | 1.5GHz | - | 14dB ~ 26dB | 350mW | 20 @ 8mA, 10V | 50mA | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
,TO-226_straightlead.jpg)
|
PN918RF TRANS NPN 15V 600MHZ TO92-3 |
7,761 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 15V | 600MHz | 6dB @ 60MHz | 15dB | 350mW | 20 @ 3mA, 1V | 50mA | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
PN5179RF TRANS NPN 12V 2GHZ TO92-3 |
2,933 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 12V | 2GHz | 5dB @ 200MHz | 15dB | 350mW | 25 @ 3mA, 1V | 50mA | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
MPSH81RF TRANS PNP 20V 600MHZ TO92-3 |
5,385 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | PNP | 20V | 600MHz | - | - | 350mW | 60 @ 5mA, 10V | 50mA | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
CA3127MRF TRANS 5NPN 15V 1.15GHZ 16SOIC |
8,126 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 5 NPN | 15V | 1.15GHz | 3.5dB @ 100MHz | 27dB ~ 30dB | 85mW | 35 @ 5mA, 6V | 20mA | 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
HFA3046B96RF TRANS 5 NPN 12V 8GHZ 14SOIC |
6,475 | 0.00 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 5 NPN | 12V | 8GHz | 3.5dB @ 1GHz | - | 150mW | 40 @ 10mA, 2V | 65mA | 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
HFA3046BZ96RF TRANS 5 NPN 12V 8GHZ 14SOIC |
5,999 | 0.00 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 5 NPN | 12V | 8GHz | 3.5dB @ 1GHz | - | 150mW | 40 @ 10mA, 2V | 65mA | 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
HFA3096B96RF TRANS NPN/PNP 5.5GHZ 16SOIC |
8,570 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | - | Obsolete | 3 NPN + 2 PNP | 12V, 15V | 8GHz, 5.5GHz | 3.5dB @ 1GHz | - | 150mW | 40 @ 10mA, 2V / 20 @ 10mA, 2V | 65mA | 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
HFA3102B96RF TRANS 6 NPN 12V 10GHZ 14SOIC |
6,853 | 0.00 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 6 NPN | 12V | 10GHz | 1.8dB ~ 2.1dB @ 500MHz ~ 1GHz | 12.4dB ~ 17.5dB | 250mW | 40 @ 10mA, 3V | 30mA | 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
HFA3127B96RF TRANS 5 NPN 12V 8GHZ 16SOIC |
6,555 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 5 NPN | 12V | 8GHz | 3.5dB @ 1GHz | - | 150mW | 40 @ 10mA, 2V | 65mA | 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|

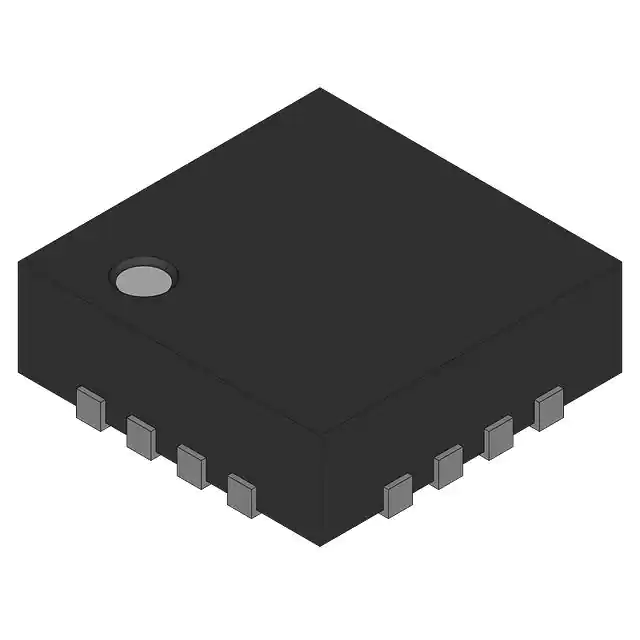

HFA3127RRF TRANS 5 NPN 12V 8GHZ 16QFN |
2,218 | 0.00 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tube | Obsolete | 5 NPN | 12V | 8GHz | 3.5dB @ 1GHz | - | 150mW | 40 @ 10mA, 2V | 65mA | 175°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
HFA3127R96RF TRANS 5 NPN 12V 8GHZ 16QFN |
5,423 | 0.00 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 5 NPN | 12V | 8GHz | 3.5dB @ 1GHz | - | 150mW | 40 @ 10mA, 2V | 65mA | 175°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
HFA3128RRF TRANS 5 PNP 15V 5.5GHZ 16QFN |
2,463 | 0.00 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tube | Obsolete | 5 PNP | 15V | 5.5GHz | 3.5dB @ 1GHz | - | 150mW | 20 @ 10mA, 2V | 65mA | 175°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
HFA3128R96RF TRANS 5 PNP 15V 5.5GHZ 16QFN |
2,045 | 0.00 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 5 PNP | 15V | 5.5GHz | 3.5dB @ 1GHz | - | 150mW | 20 @ 10mA, 2V | 65mA | 175°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
2SC370400LRF TRANS NPN 10V 0.08A MINI3 |
8,837 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 10V | 6GHz | 1dB @ 800MHz | 14dB | 200mW | 50 @ 20mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | Mini3-G1 |
|
|
2SC382900LRF TRANS NPN 10V 0.08A MINI3 |
4,051 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 10V | 6GHz | 2dB @ 800MHz (Max) | 15dB | 200mW | 50 @ 20mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | Mini3-G1 |
|
NE46134-AZRF TRANS NPN 15V 5.5GHZ SOT89 |
7,744 | 0.00 |
|
- |
- | TO-243AA | Bulk | Obsolete | NPN | 15V | 5.5GHz | 1.5dB ~ 2dB @ 500MHz ~ 1GHz | 7dB | 2W | 40 @ 50mA, 10V | 250mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
