Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SA1586-Y(T5LND,F)TRANS PNP 50V 0.15A SC-70 |
3,517 | 0.00 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | PNP | 150 mA | 50 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 120 @ 2mA, 6V | 100 mW | 80MHz | 125°C (TJ) | - | - | Surface Mount | SC-70 |
|
KTA1504-O-TPTRANS PNP 50V 0.15A SOT-23 |
3,778 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PNP | 150 mA | 50 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 70 @ 2mA, 6V | 150 mW | 80MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
KTA1504-GR-TPTRANS PNP 50V 0.15A SOT-23 |
6,340 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PNP | 150 mA | 50 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 200 @ 2mA, 6V | 150 mW | 80MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
2SC4215-Y-TPTRANS NPN 30V 0.02A SOT-323 |
2,366 | 0.00 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 20 mA | 30 V | - | 100nA (ICBO) | 100 @ 1mA, 6V | 100 mW | 550MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
|
KTA1504-Y-TPTRANS PNP 50V 0.15A SOT-23 |
6,810 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PNP | 150 mA | 50 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 120 @ 2mA, 6V | 150 mW | 80MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
2SC2883-Y-TPTRANS NPN 30V 1.5A SOT-89 |
8,952 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 1.5 A | 30 V | 2V @ 30mA, 1.5A | 100nA (ICBO) | 160 @ 500mA, 2V | 500 mW | 120MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
2SC3052-G-TPTRANS 50V 0.2A SOT-23 |
6,332 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | - | 200 mA | 50 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 400 @ 1mA, 6V | 150 mW | 180MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
2SA1797-Q-TPTRANS 50V 2A SOT89 |
2,804 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | - | 2 A | 50 V | 350mV @ 50mA, 1A | 100nA (ICBO) | 120 @ 500mA, 2V | 500 mW | 200MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
|
2SC3052-F-TPTRANS 50V 0.2A SOT-23 |
9,023 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | - | 200 mA | 50 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 250 @ 1mA, 6V | 150 mW | 180MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
2SC3052-E-TPTRANS 50V 0.2A SOT-23 |
2,707 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | - | 200 mA | 50 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 150 @ 1mA, 6V | 150 mW | 180MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
2SD1766-R-TPTRANS 32V 1A SOT89 |
8,463 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | - | 1 A | 32 V | 800mV @ 200mA, 2A | 1µA (ICBO) | 180 @ 500mA, 3V | 500 mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
2N5210TRANS NPN 50V 0.05A TO-92 |
8,196 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | NPN | 50 mA | 50 V | 700mV @ 1mA, 10mA | 50nA (ICBO) | 250 @ 10mA, 5V | 625 mW | 30MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 |
|
PHPT60410PYXTRANS PNP 40V 10A LFPAK56 PWRSO8 |
5,591 | 0.00 |
|
Datasheet |
- | SC-100, SOT-669 | Bulk | Active | PNP | 10 A | 40 V | 800mV @ 500mA, 10A | 100nA | 240 @ 500mA, 2V | 1.3 W | 97MHz | 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
TIP31CTRANS NPN 100V 3A TO-220 |
9,367 | 0.00 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | NPN | 3 A | 100 V | 1.2V @ 375mA, 3A | 200µA | 10 @ 3A, 4V | 40 W | 3MHz | - | - | - | Through Hole | TO-220 |
|

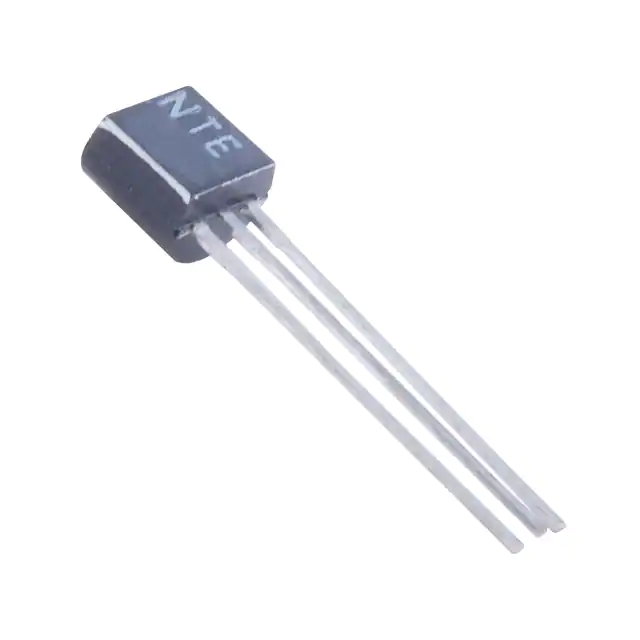

NTE199TRANS NPN 50V 0.1A TO-92 |
4,063 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Box | Active | NPN | 100 mA | 50 V | 125mV @ 1mA, 10mA | 30nA | 400 @ 2mA, 5V | 360 mW | - | -55°C ~ 125°C (TJ) | - | - | Through Hole | TO-92 |
|
2N3904TRANS NPN 40V 0.2A TO-92-3 |
6,212 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Box | Active | NPN | 200 mA | 40 V | 300mV @ 5mA, 50mA | 50nA | 100 @ 10mA, 1V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N6474TRANS NPN 120V 4A TO-220-3 |
8,875 | 0.00 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | NPN | 4 A | 120 V | 2.5V @ 2A, 4A | 1mA | 15 @ 1.5A, 4V | 40 W | 4MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
CP208-2N3054-WNTRANS NPN 55V 4A DIE |
7,738 | 0.00 |
|
Datasheet |
- | Die | Bulk | Obsolete | NPN | 4 A | 55 V | 6V @ 1A, 3A | 500µA | 25 @ 500mA, 4V | 25 W | 3MHz | -65°C ~ 200°C (TJ) | - | - | Surface Mount | Die |
|
|
CP208-TIP31C-CTTRANS NPN 100V 3A DIE |
2,065 | 0.00 |
|
Datasheet |
- | Die | Tape & Box (TB) | Obsolete | NPN | 3 A | 100 V | 1.2V @ 375mA, 3A | 300µA | 25 @ 1A, 4V | 2 W | 3MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
|
CP225-2N2218A-WNTRANS NPN 40V 0.8A DIE |
9,110 | 0.00 |
|
Datasheet |
- | Die | Tape & Box (TB) | Obsolete | NPN | 800 mA | 40 V | 1V @ 50mA, 500mA | 10nA (ICBO) | 40 @ 150mA, 10V | 800 mW | 250MHz | -65°C ~ 200°C (TJ) | - | - | Surface Mount | Die |
