Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

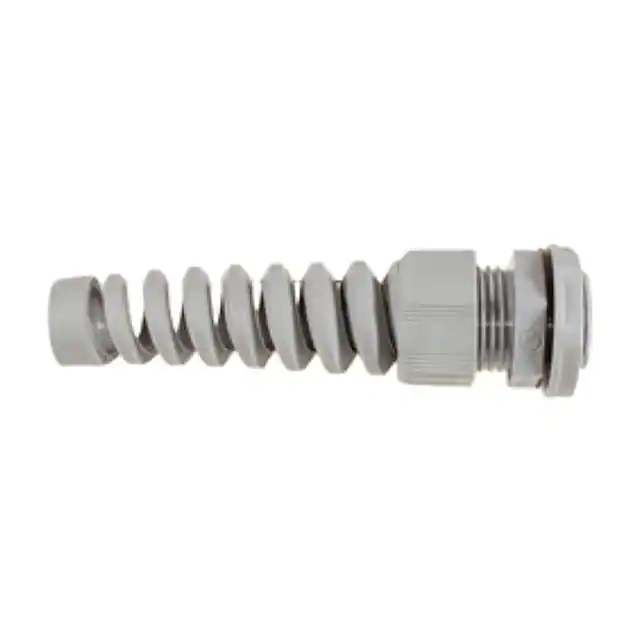

PNS1/2 SL080CABLE GLAND 6-12MM 1/2" NPT Alpha Wire |
2,987 | 4.80 |
|
Datasheet |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | 0.840" (21.3mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
PPS16 SL080CABLE GLAND 10-14MM PG16 Alpha Wire |
2,139 | 4.82 |
|
Datasheet |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Gasket, Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
PNC3/4 BK080CABLE GLAND 13-18.01MM 3/4" NPT Alpha Wire |
2,843 | 5.47 |
|
Datasheet |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
PPC29 SL080CABLE GLAND 18.01-25MM PG29 Alpha Wire |
4,533 | 8.23 |
|
Datasheet |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
MES20 NC080CABLE GLAND 6-12MM M20 BRASS Alpha Wire |
4,086 | 11.22 |
|
Datasheet |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.315" (8.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
MNPT3/8 NC080CABLE GLAND 4-8MM 3/8" NPT BRASS Alpha Wire |
4,036 | 15.74 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | 3/8" NPT | 0.453" (11.50mm) | - | 0.673" (17.1mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C |
