Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

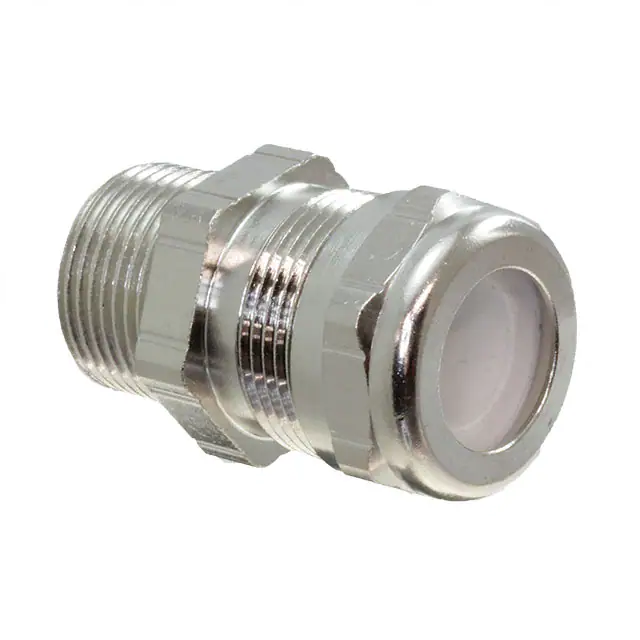

21786.6CABLE GLAND 11.43-15.5MM 3/4" Pflitsch |
1,578 | 28.37 |
|
Datasheet |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | 3/4" NPT | 0.630" (16.00mm) | - | 1.050" (26.7mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

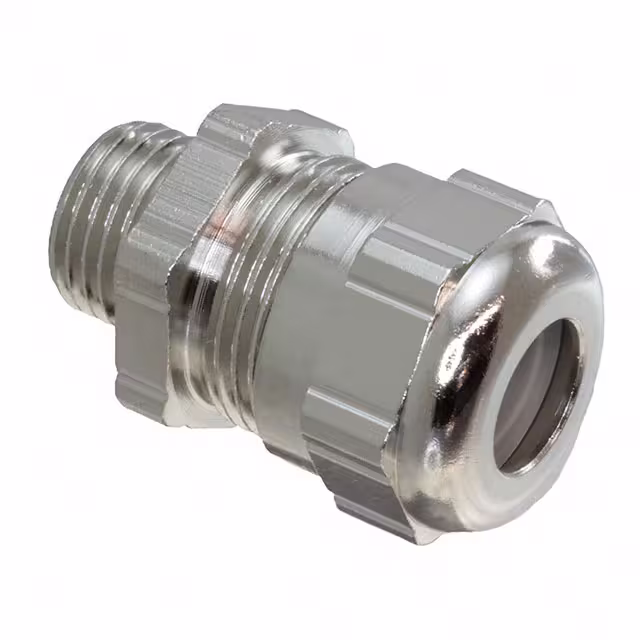

21576.6CABLE GLAND 9.91-13.97MM M24 Pflitsch |
2,862 | 30.49 |
|
Datasheet |
Cable Gland | 0.390" (9.91mm) | 0.550" (13.97mm) | M24x1.5 | 0.430" (10.92mm) | - | 0.940" (23.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21577.6CABLE GLAND 13.97-18.03MM M24 Pflitsch |
4,927 | 30.49 |
|
Datasheet |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | M24x1.5 | 0.430" (10.92mm) | - | 0.940" (23.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

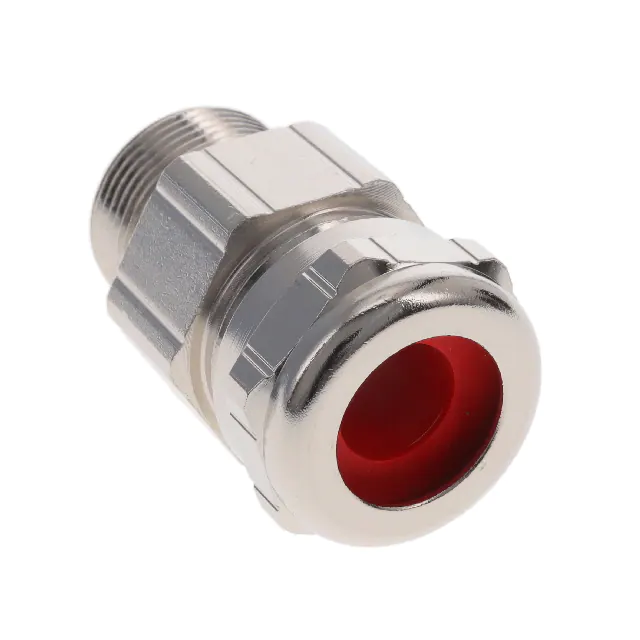

97279.6/15CABLE GLAND 8.89-12.95MM M25 Pflitsch |
4,946 | 31.73 |
|
Datasheet |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

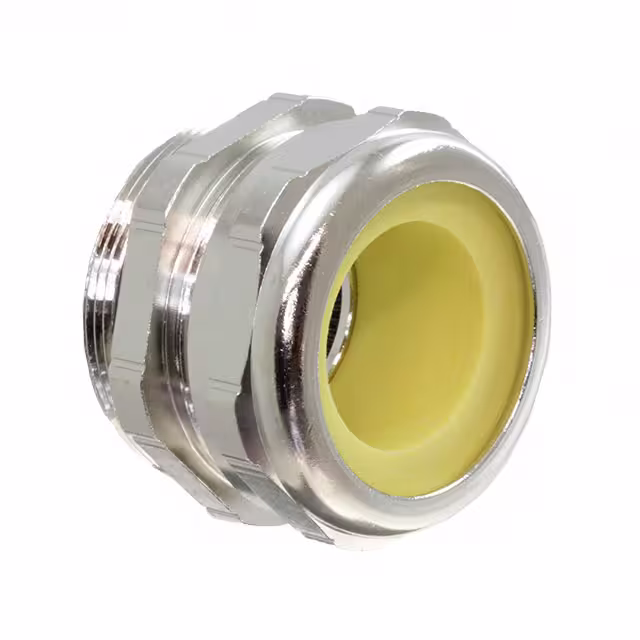

21670.6CABLE GLAND 23.88-27.94MM PG36 Pflitsch |
2,144 | 38.45 |
|
Datasheet |
Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | PG36 | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

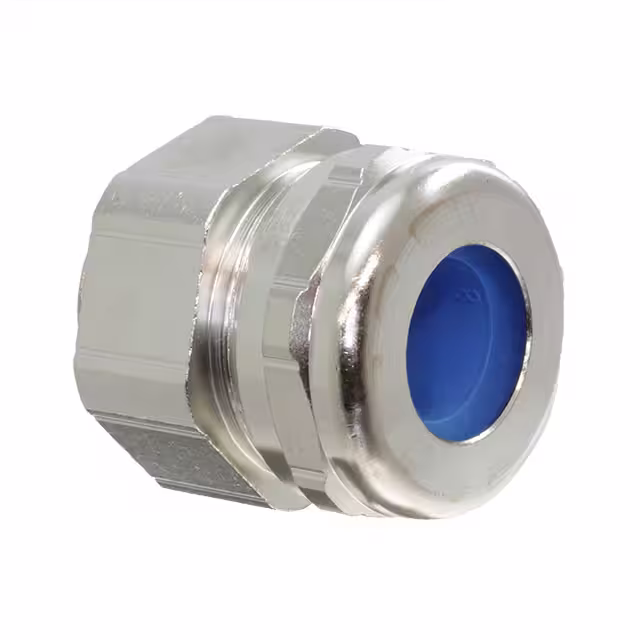

21688.6CABLE GLAND 13.97-18.03MM PG21 Pflitsch |
3,925 | 39.82 |
|
Datasheet |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21689.6CABLE GLAND 17.02-20.57MM PG21 Pflitsch |
4,327 | 39.82 |
|
Datasheet |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

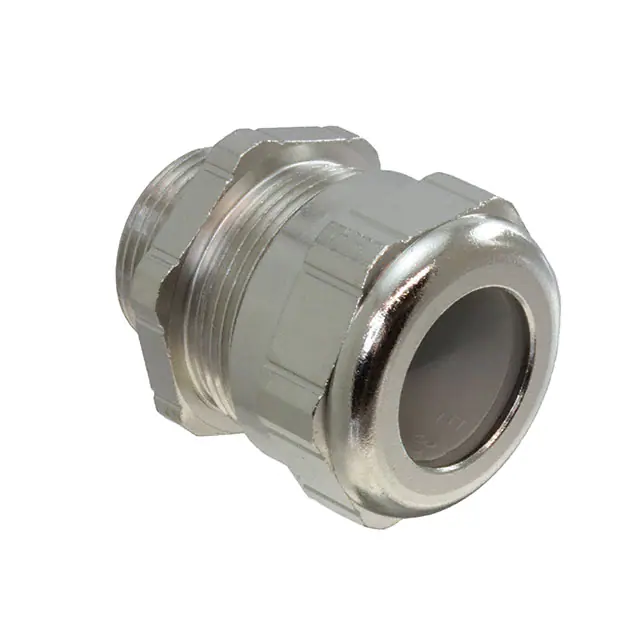

21628.6CABLE GLAND 17.02-20.07MM M25 Pflitsch |
3,257 | 41.33 |
|
Datasheet |
Cable Gland | 0.670" (17.02mm) | 0.790" (20.07mm) | M25x1.5 | 0.430" (10.92mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

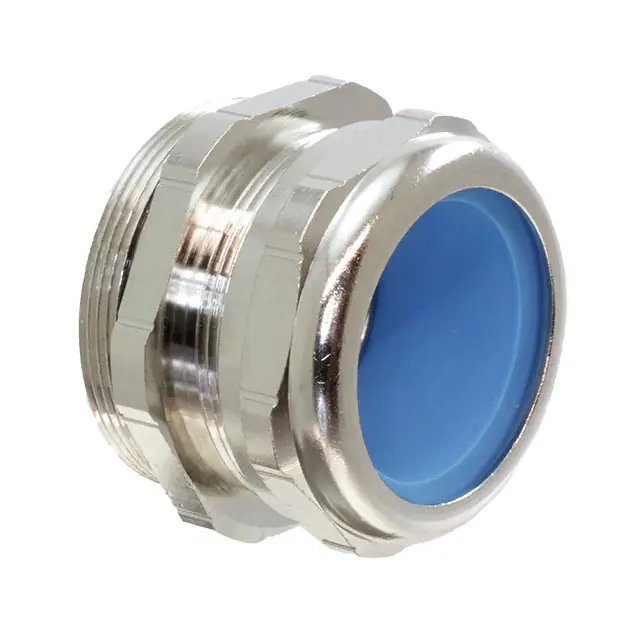

97162.6CABLE GLAND 28.96-34.04MM M50 Pflitsch |
1,309 | 46.09 |
|
Datasheet |
Cable Gland | 1.140" (28.96mm) | 1.340" (34.04mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
LEX240MSHTSCABLE GLAND 25.91-34.04MM M40 Pflitsch |
2,502 | 60.35 |
|
Datasheet |
Cable Gland | 1.020" (25.91mm) | 1.340" (34.04mm) | M40x1.5 | 0.630" (16.00mm) | - | 1.575" (40.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C |
