Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25369.5CABLE GLAND 4.06-6.6MM M25 PVDF Pflitsch |
3,075 | 10.11 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M25x1.5 | 0.350" (8.89mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
25370.5CABLE GLAND 5.08-7.87MM M25 PVDF Pflitsch |
1,759 | 10.11 |
|
- |
Cable Gland | 0.200" (5.08mm) | 0.310" (7.87mm) | M25x1.5 | 0.350" (8.89mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
25371.5CABLE GLAND 6.6-9.4MM M25 PVDF Pflitsch |
2,569 | 10.11 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M25x1.5 | 0.350" (8.89mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
25372.5CABLE GLND 7.11-10.41MM M25 PVDF Pflitsch |
2,568 | 10.11 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | M25x1.5 | 0.350" (8.89mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
25373.5CABLE GLND 8.89-12.95MM M25 PVDF Pflitsch |
4,134 | 10.11 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M25x1.5 | 0.350" (8.89mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
25374.5CABLE GLND 11.43-15.5MM M25 PVDF Pflitsch |
3,966 | 10.11 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | M25x1.5 | 0.350" (8.89mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
19521.4CABLE GLAND PG16 PVDF Pflitsch |
3,970 | 9.73 |
|
- |
Cable Gland | - | - | PG16 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|

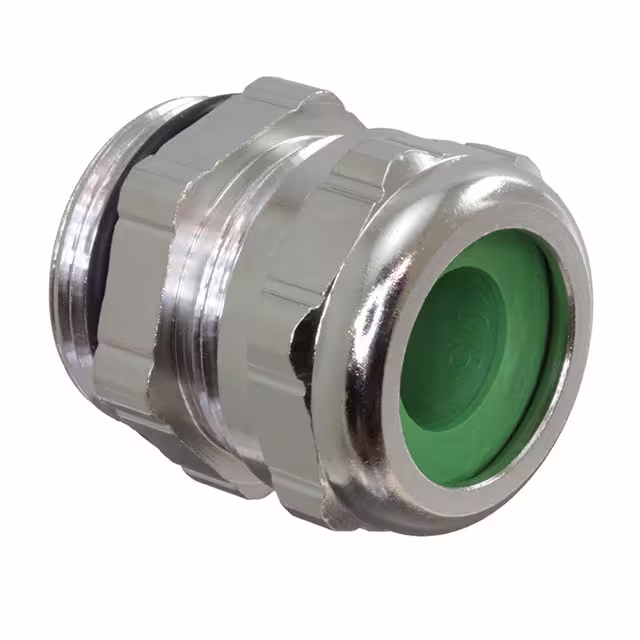

21660.6CABLE GLAND 6.86-10.41MM PG16 Pflitsch |
4,562 | 16.42 |
|
- |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
96810.5CABLE GLAND 5-10MM M25 PVDF Pflitsch |
2,530 | 9.21 |
|
- |
Cable Gland - Flat Cables | 0.197" (5.00mm) | 0.394" (10.00mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
96813.5CABLE GLAND 5.5-14MM M25 PVDF Pflitsch |
1,961 | 9.21 |
|
- |
Cable Gland - Flat Cables | 0.217" (5.50mm) | 0.551" (14.00mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C |
