Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-02-10JSCMC 1MH 2A 2LN TH KEMET |
200 | 2.23 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 2A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SN10-400CMC 72UH 3A 2LN TH KEMET |
184 | 3.36 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 3A | 42mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SS26V-250046CMC 4.6MH 2.5A 2LN TH KEMET |
210 | 1.74 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.6 mH @ 1 kHz | 2.5A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SH-301CMC 3A 2LN TH KEMET |
199 | 1.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.2 µH @ 100 kHz | 3A | 22mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SSRH24NVS-45041CMC 4.1MH 4.5A 2LN TH KEMET |
240 | 1.93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 4.5A | 41mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21HS-R07550CMC 55MH 700MA 2LN TH KEMET |
360 | 1.70 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 55 mH @ 10 kHz | 700mA | 1.03Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R18095CMC 9.5MH 1.8A 2LN TH KEMET |
180 | 2.84 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 9.5 mH @ 10 kHz | 1.8A | 200mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R30028CMC 2.8MH 3A 2LN TH KEMET |
178 | 1.70 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.8 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

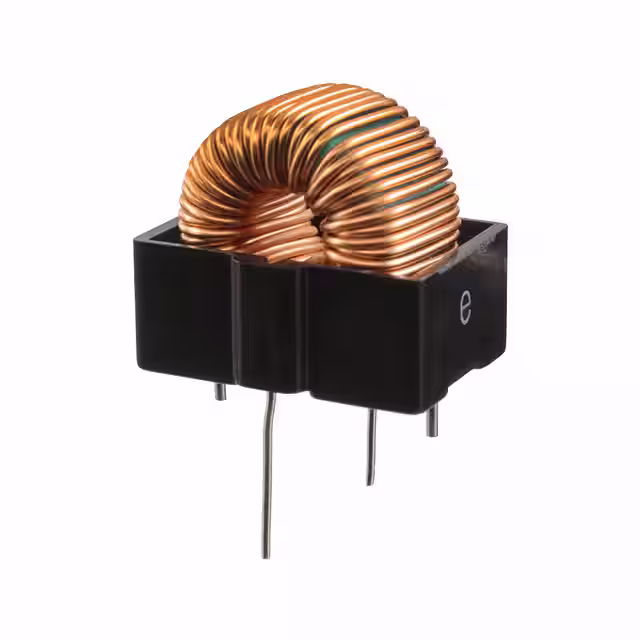

SN8D-500JBCMC 125UH 2A 2LN TH KEMET |
184 | 2.39 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 125 µH @ 100 kHz | 2A | 100mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
ST-204A3CMC, TROID, 1000OHM, 170MOHM KEMET |
200 | 2.50 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | 1 kOhms @ 7 MHz | - | 500mA | 170mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
