Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,92-4-Lead-DLP11S-Series.jpg)
|
DLP11SA900HL2LCMC 150MA 2LN 90 OHM SMD Murata Electronics |
1,784 | 0.49 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 1.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
LXES11DAA2-137CMC Murata Electronics |
3,370 | 0.43 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DLP11RB400UL2LCMC 100MA 2LN 40 OHM SMD Murata Electronics |
2,192 | 0.24 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 40 Ohms @ 100 MHz | - | 100mA | 1.63Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11RN450UL2LCMC 100MA 2LN 45 OHM SMD Murata Electronics |
1,321 | 0.48 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 100mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
-4-Lead.jpg)
|
DLP0NSN900HL2LCMC 100MA 2LN 90 OHM SMD Murata Electronics |
4,896 | 0.54 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW5ATN501SQ2LCMC 1.5A 2LN 500 OHM SMD Murata Electronics |
3,293 | 0.76 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW5ATN401TQ2LCMC 2.5A 2LN 400 OHM SMD Murata Electronics |
1,941 | 0.76 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 400 Ohms @ 100 MHz | - | 2.5A | 34mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
-0,35-4-Lead-DLP11T-Series.jpg)
|

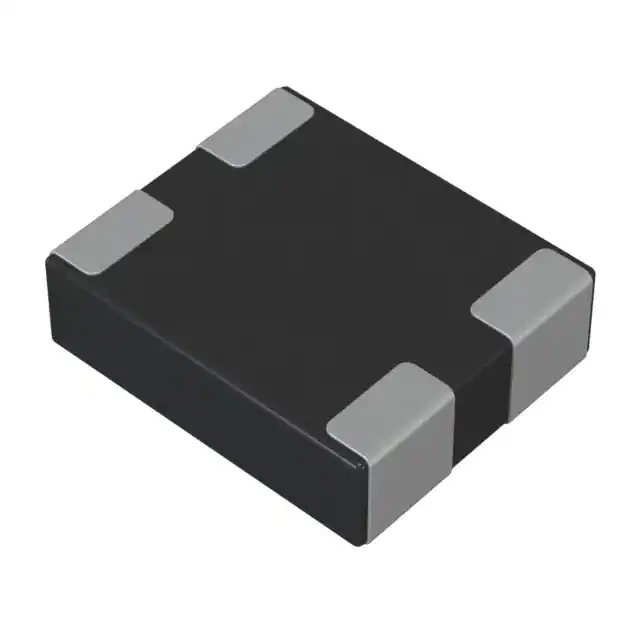

DLP11TB800UL2LCMC 100MA 2LN 80 OHM SMD Murata Electronics |
2,094 | 0.65 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
-4-Leads-DLP31-Series.jpg)
|
DLP31SN121SL2LCMC 100MA 2LN 120 OHM SMD Murata Electronics |
2,761 | 0.00 |
|
Datasheet |
1206 (3216 Metric), 4 Leads | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 100mA | 2Ohm | 16V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP31SN551SL2LCMC 100MA 2LN 550 OHM SMD Murata Electronics |
1,460 | 0.00 |
|
Datasheet |
1206 (3216 Metric), 4 Leads | - | 2 | 550 Ohms @ 100 MHz | - | 100mA | 3.6Ohm | 16V | - | -40°C ~ 85°C | - | - | - | - | - |
