Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

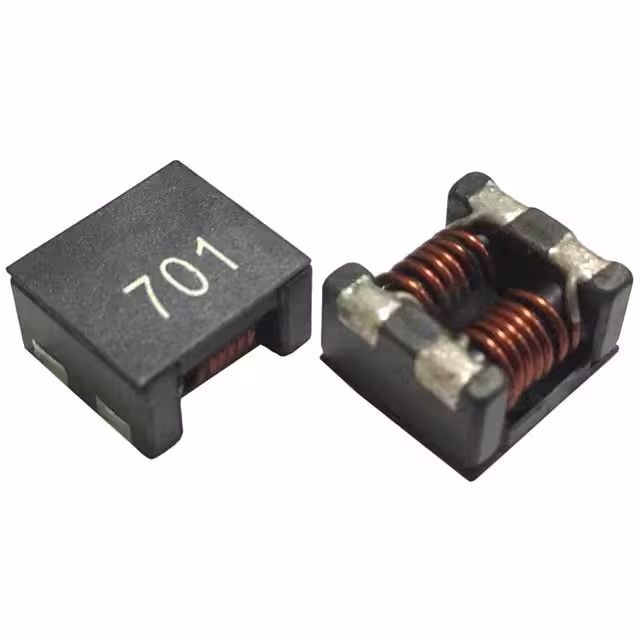

APPM00151365102XY0CMC 8.5A 2LN 1K OHM SMD AEC-Q200 Pulse Electronics |
4,397 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 8.5A | 9mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365301XY0CMC 13A 2LN 300 OHM SMD AEC-Q200 Pulse Electronics |
1,094 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 13A | 4.7mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365551XY0CMC 10A 2LN 550 OHM SMD AEC-Q200 Pulse Electronics |
3,281 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 3.8mOhm (Typ) | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365232XY0CMC 7A 2LN 2.3K OHM SMD AEC-Q200 Pulse Electronics |
4,123 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.3 kOhms @ 50 MHz | - | 7A | 11mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365322XY0CMC 6A 2LN 3.2K OHM SMD AEC-Q200 Pulse Electronics |
1,771 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 3.2 kOhms @ 40 MHz | - | 6A | 11.5mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365701XY0CMC 10A 2LN 700 OHM SMD AEC-Q200 Pulse Electronics |
3,486 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 7mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

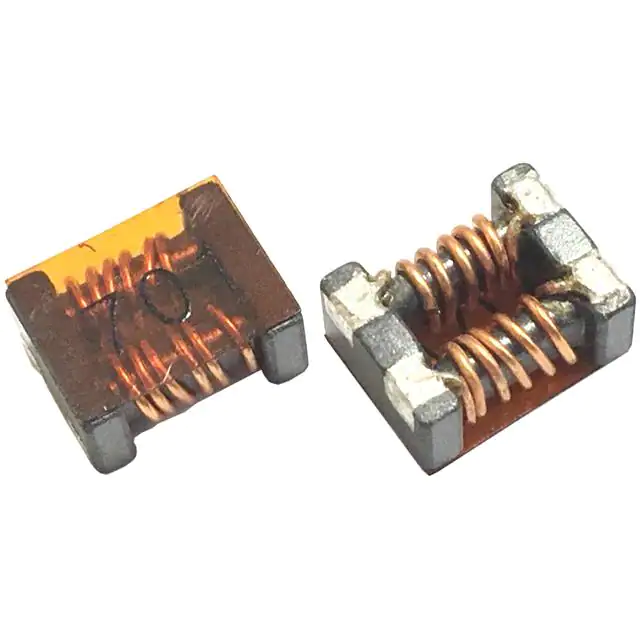

BPPM00151360551X00CMC 10A 2LN 550 OHM SMD Pulse Electronics |
4,442 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 3.8mOhm (Typ) | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360701X00CMC 10A 2LN 700 OHM SMD Pulse Electronics |
2,958 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360152X00CMC 8.5A 2LN 1.5K OHM SMD Pulse Electronics |
4,466 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 100 MHz | - | 8.5A | 9mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360301X00CMC 13A 2LN 300 OHM SMD Pulse Electronics |
4,456 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 13A | 4.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
