Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

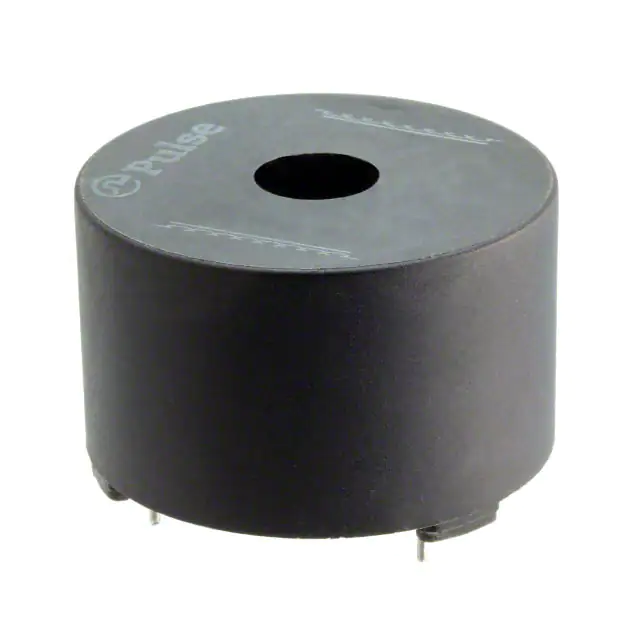

PE-96187NLCMC 8A (TYP) 2LN TH Pulse Electronics |
4,368 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 8A (Typ) | 33mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

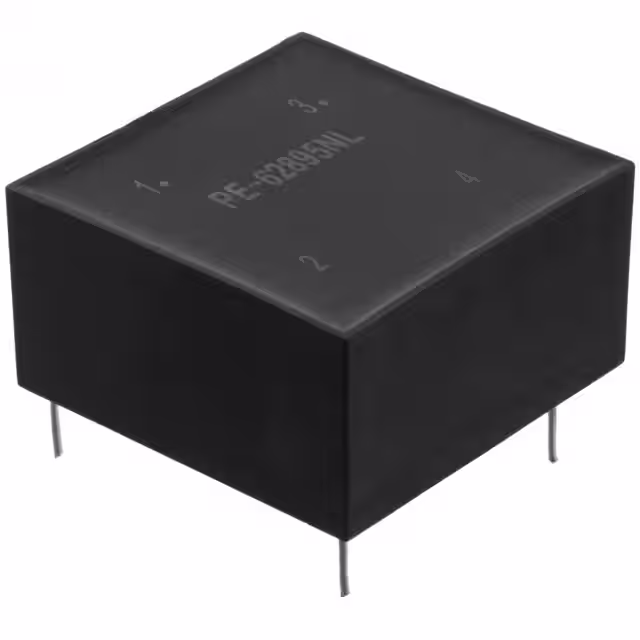

PE-62895NLCMC 8MH 3.2A 2LN TH Pulse Electronics |
4,441 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 3.2A | 120mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

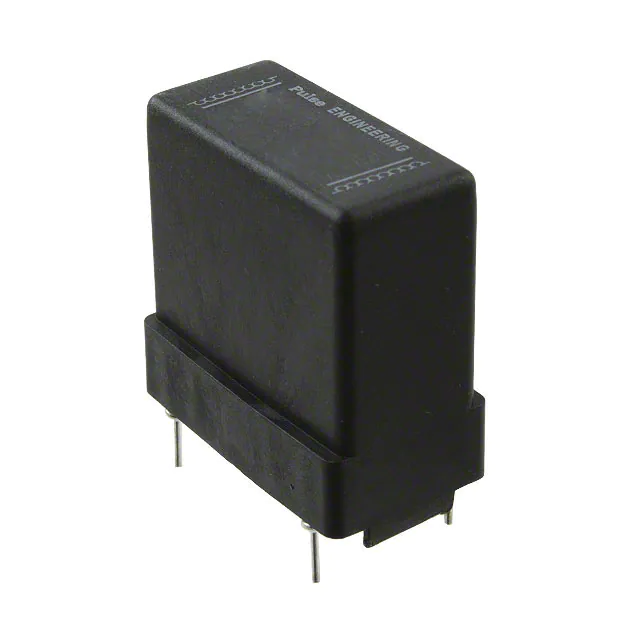

PE-96173NLCMC 3.15A (TYP) 2LN TH Pulse Electronics |
4,100 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.15A (Typ) | 100mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-62891NLCMC 10MH 1.8A 2LN TH Pulse Electronics |
2,177 | 6.05 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.8A | 240mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg)
|
PE-0805CCMC670STSCMC 400MA 2LN 67 OHM SMD Pulse Electronics |
1,585 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-1206CCMC161STSCMC 340MA 2LN 160 OHM SMD Pulse Electronics |
4,394 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-0805CCMC900STHCMC 300MA 2LN 90 OHM SMD Pulse Electronics |
4,215 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-1206CCMC261STSCMC 310MA 2LN 260 OHM SMD Pulse Electronics |
2,894 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | - | - | - | - | - | - |
|
|
T8132NLTCMC 16LN SMD Pulse Electronics |
4,826 | 0.00 |
|
Datasheet |
- | Signal Line | 16 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
42Z4000NLCMC TH Pulse Electronics |
1,672 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
