Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53912NLCMC 2.5A 2LN SMD Pulse Electronics |
1,120 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.5A | 80mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
P0421NLCMC 3.3A 2LN SMD Pulse Electronics |
889 | 3.27 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

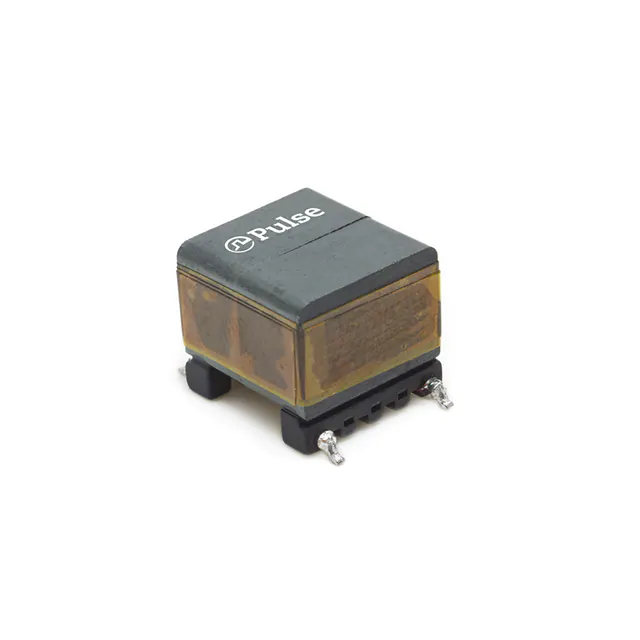

PAC6006.503NLTCMC 17A 2LN 350 OHM SMD Pulse Electronics |
1,180 | 3.53 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 350 Ohms @ 3.4 MHz | - | 17A | 1.8mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM3927NLTIND CMC 800UH 3A Pulse Electronics |
1,112 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3A | 27mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PAC6006.604NLTCMC 6.7A 2LN 2.5K OHM SMD Pulse Electronics |
286 | 3.53 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 2.5 kOhms @ 3.9 MHz | - | 6.7A | 15mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
APPM00151365432XY0CMC 5A 2LN 4.3K OHM SMD AEC-Q200 Pulse Electronics |
685 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 4.3 kOhms @ 30 MHz | - | 5A | 21mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PAC6006.204NLTCMC 12A 2LN 1K OHM SMD Pulse Electronics |
1,012 | 3.53 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 1 kOhms @ 7 MHz | - | 12A | 4.8mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PE-53913NLCMC 1A 2LN SMD Pulse Electronics |
1,110 | 3.47 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 1A | 450mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|

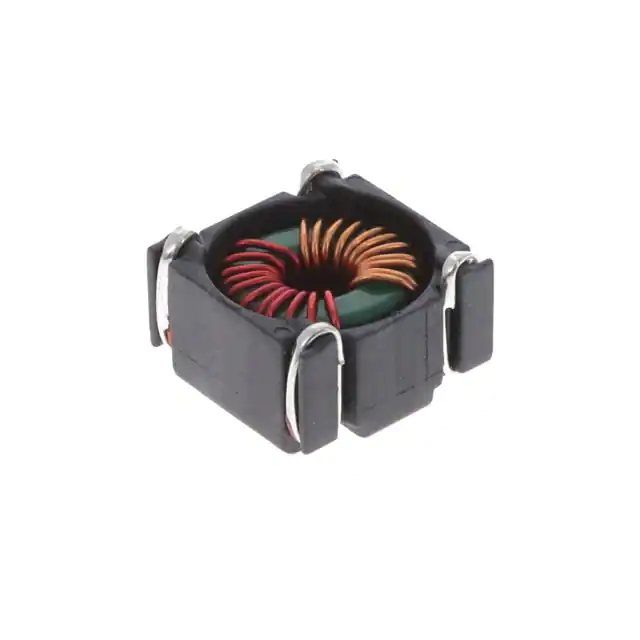

PA3927NLTCMC 3A 2LN SMD AEC-Q200 Pulse Electronics |
1,843 | 3.70 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 3A | 27mOhm | - | - | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
PE-53914NLTCMC 500MA 2LN SMD Pulse Electronics |
1,718 | 2.16 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 500mA | 850mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
