Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN216-1.7-02-4M0CMC 4MH 1.7A 2LN TH Schaffner EMC Inc. |
330 | 2.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 1.7A | 87mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN116-2-02-3M3CMC 3.3MH 2A 2LN TH Schaffner EMC Inc. |
528 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN216-1-02-15MCMC 15MH 1A 2LN TH Schaffner EMC Inc. |
875 | 2.72 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 260mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN216-2-02-3M3CMC 3.3MH 2A 2LN TH Schaffner EMC Inc. |
2,368 | 2.72 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN122-1-02-10MCMC 10MH 1A 2LN TH Schaffner EMC Inc. |
190 | 2.87 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 560mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN222-1.5-02-10MCMC 10MH 1.5A 2LN TH Schaffner EMC Inc. |
236 | 2.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 250mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN222-0.5-02-56MCMC 56MH 500MA 2LN TH Schaffner EMC Inc. |
179 | 2.84 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN222-1-02-33MCMC 33MH 1A 2LN TH Schaffner EMC Inc. |
347 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
EV24-0.8-02-18MCMC 18MH 800MA 2LN TH Schaffner EMC Inc. |
711 | 1.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 800mA | 438mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

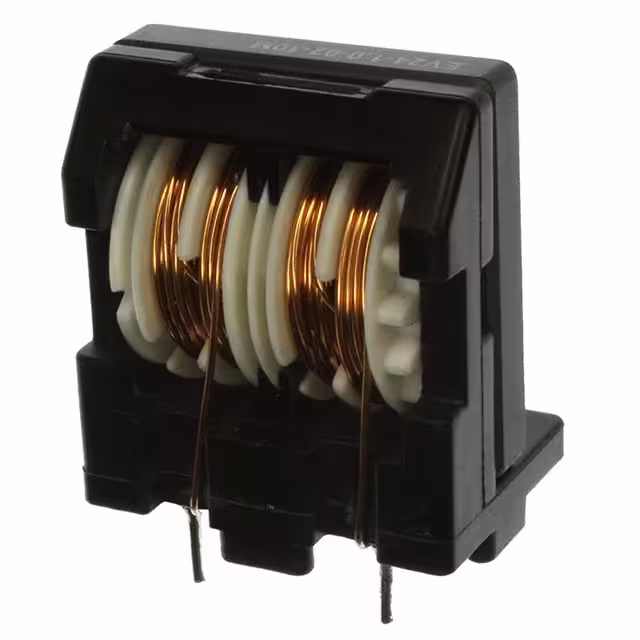

EV24-1.0-02-10MCMC 10MH 1A 2LN TH Schaffner EMC Inc. |
1,300 | 3.10 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 400 Hz | 1A | 244mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
