Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RT8121-50-8M6RT COMMON MODE CHOKE, NANO, 2 LI Schaffner EMC Inc. |
1,915 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8.6 mH @ 100 kHz | 50A | - | 450V | 300V | -40°C ~ 100°C | - | UR | Nanocrystalline Core | - | - |
|
|
RT8131-50-4M4RT COMMON MODE CHOKE, NANO, 3 LI Schaffner EMC Inc. |
3,246 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 4.4 mH @ 100 kHz | 50A | - | - | 600V | -40°C ~ 100°C | - | UR | Nanocrystalline Core | - | - |
|
|
RT8121-63-4M4RT COMMON MODE CHOKE, NANO, 2 LI Schaffner EMC Inc. |
3,229 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 100 kHz | 63A | - | 450V | 300V | -40°C ~ 100°C | - | UR | Nanocrystalline Core | - | - |
|
|
RT8131-63-2M8RT COMMON MODE CHOKE, NANO, 3 LI Schaffner EMC Inc. |
2,819 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.8 mH @ 100 kHz | 63A | - | - | 600V | -40°C ~ 100°C | - | UR | Nanocrystalline Core | - | - |
|
RN214-1.5-02CMC 6.8MH 1.5A 2LN TH Schaffner EMC Inc. |
480 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.5A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

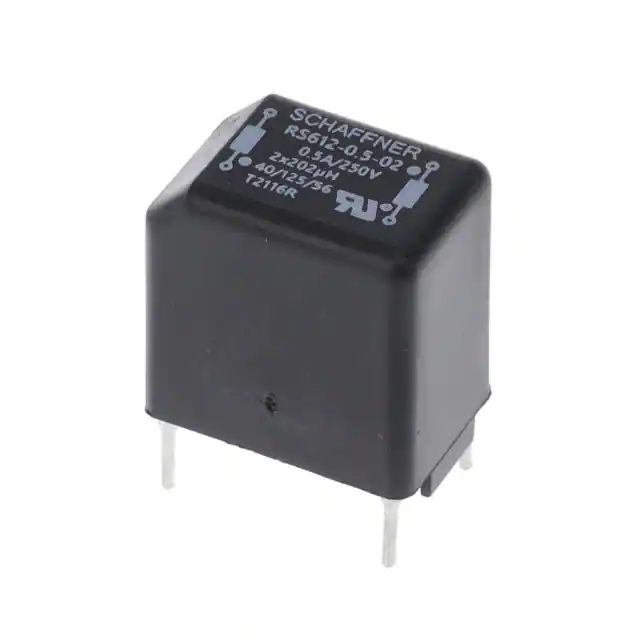

RS612-0.5-02CMC 200UH 500MA 2LN TH Schaffner EMC Inc. |
424 | 3.21 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 200 µH @ 1 kHz | 500mA (Typ) | 650mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

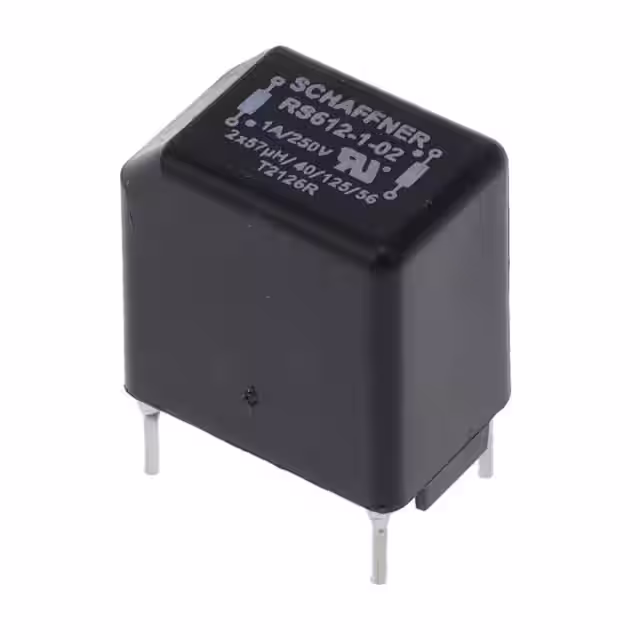

RS612-1-02CMC 55UH 1A 2LN TH Schaffner EMC Inc. |
840 | 3.27 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

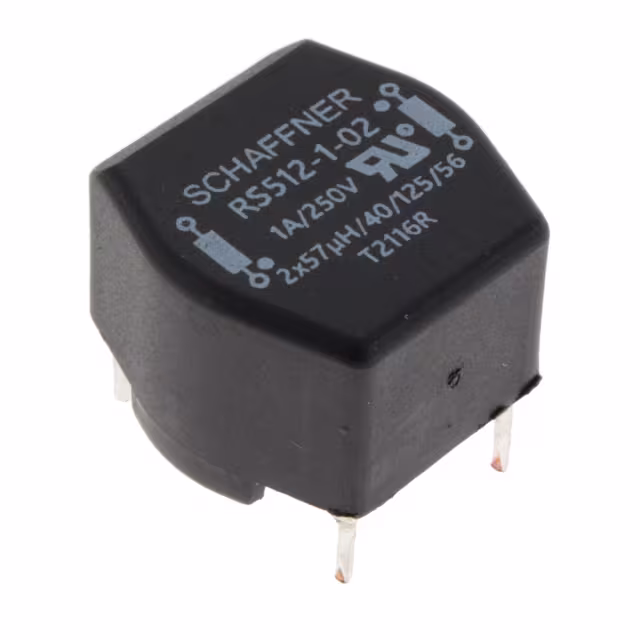

RS512-1-02CMC 55UH 1A 2LN TH Schaffner EMC Inc. |
150 | 3.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

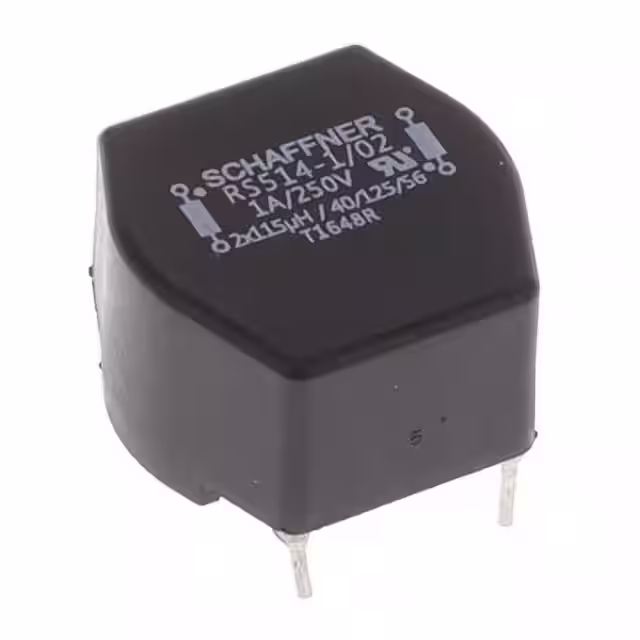

RS514-1-02CMC 120UH 1A 2LN TH Schaffner EMC Inc. |
291 | 3.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 120 µH @ 1 kHz | 1A (Typ) | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN216-0.5-02-27MCMC 27MH 500MA 2LN TH Schaffner EMC Inc. |
499 | 2.60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 790mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
