Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

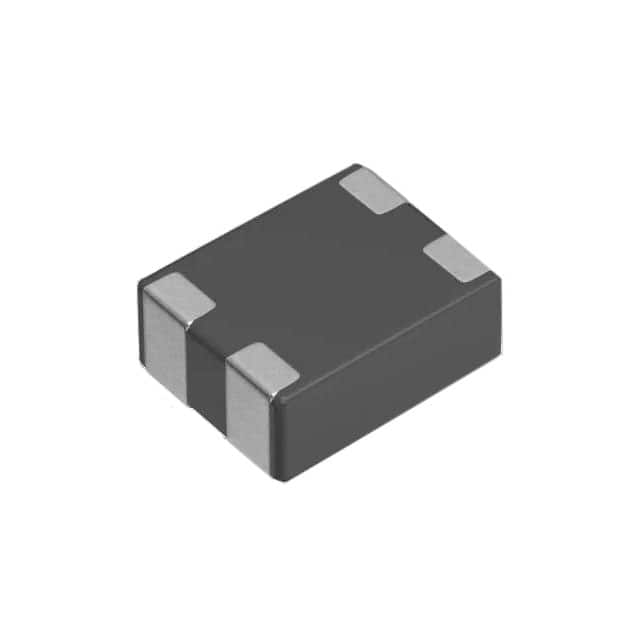

MCZ1210DH500CPTD25CMC 100MA 2LN 45OHM SMD AEC-Q200 TDK Corporation |
11,432 | 0.76 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 5V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|

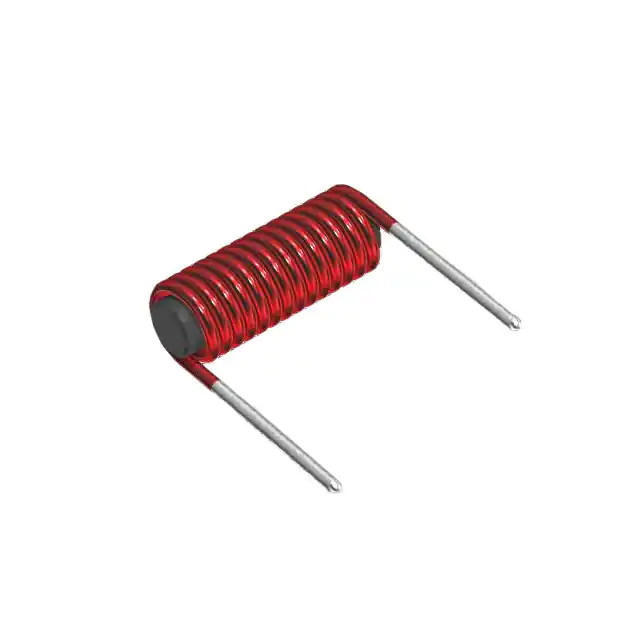

AML0820-3R7M120-S1CMC 12A 2LN TH AEC-Q200 TDK Corporation |
380 | 3.21 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 12A | 7.7mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

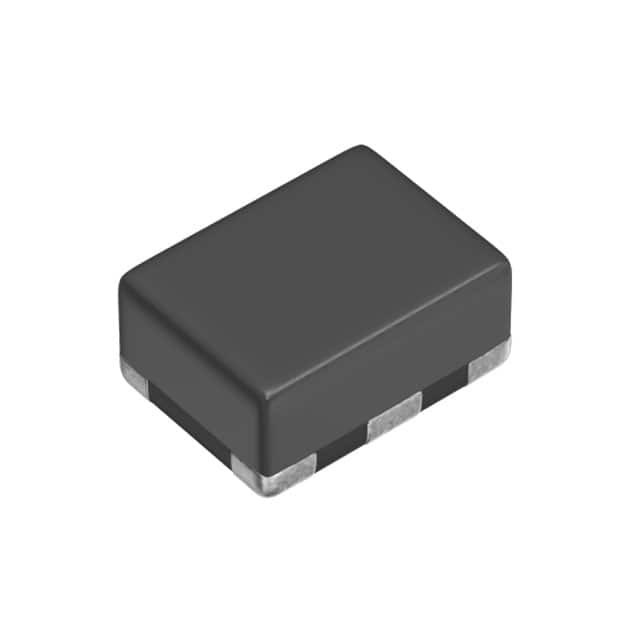

TCM0906C-400-3P-T200CMC 100MA 3LN 40 OHM SMD TDK Corporation |
10,440 | 0.23 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 3 | 40 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
MCZ1210AD900T002CMC 500MA 2LN 90 OHM SMD TDK Corporation |
1,763 | 0.53 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 500mA | 200mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

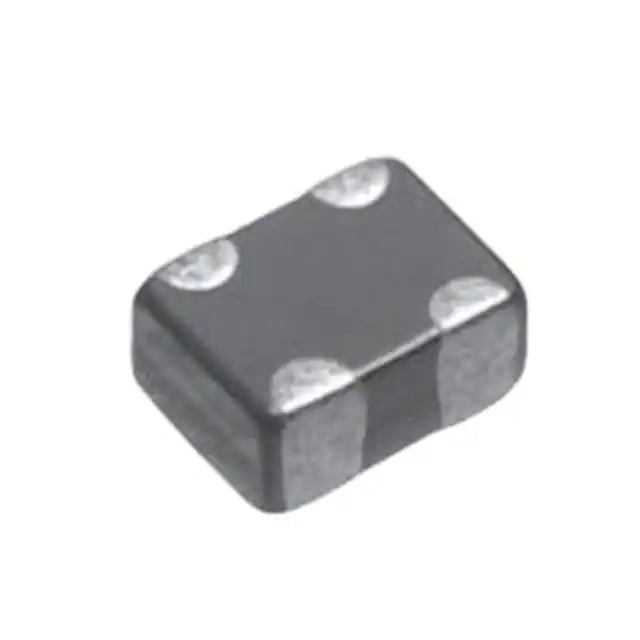

MCZ0806AH350L2TA0GCMC 100MA 2LN 35 OHM SMD TDK Corporation |
10,000 | 0.42 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

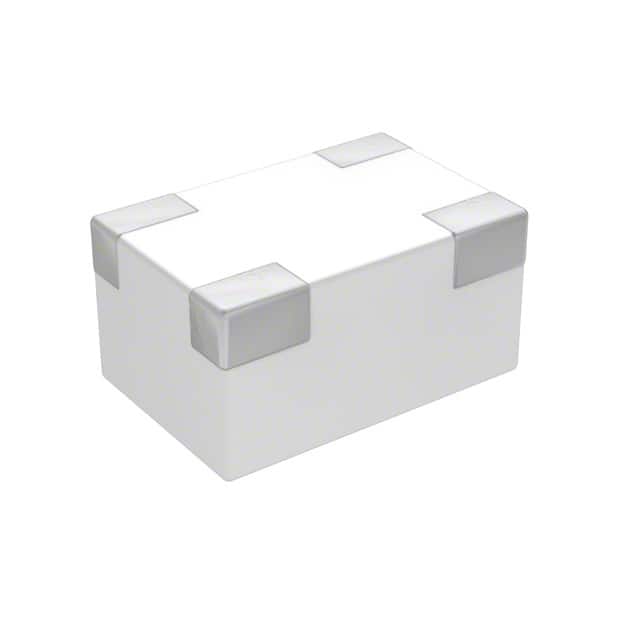

TCM0403S-350-2PCMC 50MA 2LN 35 OHM SMD TDK Corporation |
1,867 | 0.94 |
|
Datasheet |
0201 (0603 Metric) Variant, 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 50mA | 3Ohm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
TCM0403R-900-2P-T210CMC 35MA 2LN SMD TDK Corporation |
6,467 | 1.10 |
|
Datasheet |
0201 (0603 Metric) | Signal Line | 2 | - | - | 35mA | 3.5Ohm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|

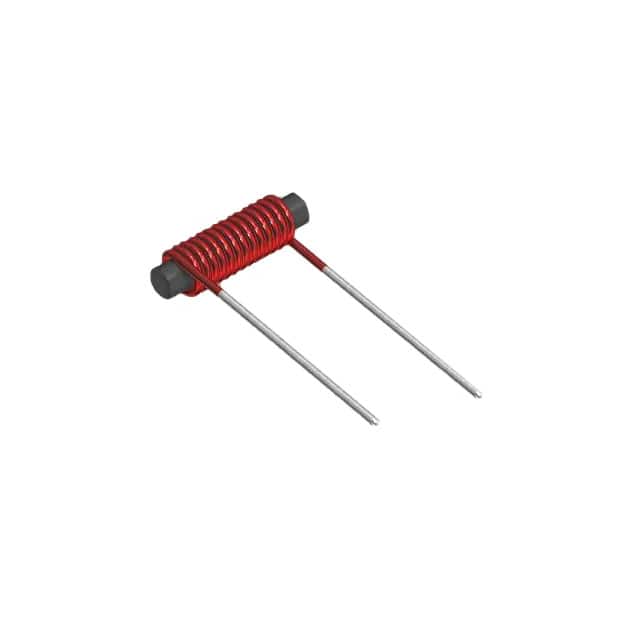

AML04B13-2R3M6R5-S1CMC 6.5A 2LN TH AEC-Q200 TDK Corporation |
586 | 2.31 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 6.5A | 15mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
AML04A14-2R2M6R5-S1CMC 6.5A 2LN TH AEC-Q200 TDK Corporation |
625 | 2.31 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 6.5A | 10mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
AML04B16-4R6M6R0-S1CMC 6A 2LN TH AEC-Q200 TDK Corporation |
676 | 2.31 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 6A | 20mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
