Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ET2825-028CMC 36MH 900MA 2LN TH ESD Triad Magnetics |
2,499 | 6.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 36 mH @ 10 kHz | 900mA | 800mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|

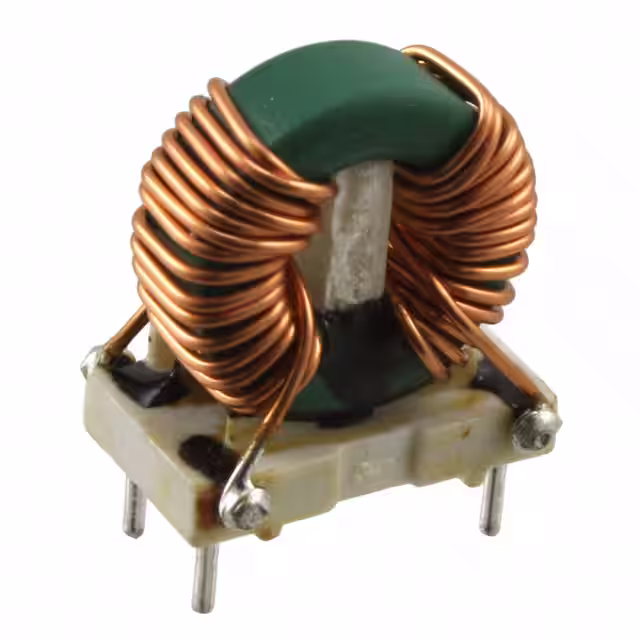

CMT-8103CMC 1MH 4.8A 2LN TH ESD Triad Magnetics |
4,685 | 3.62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

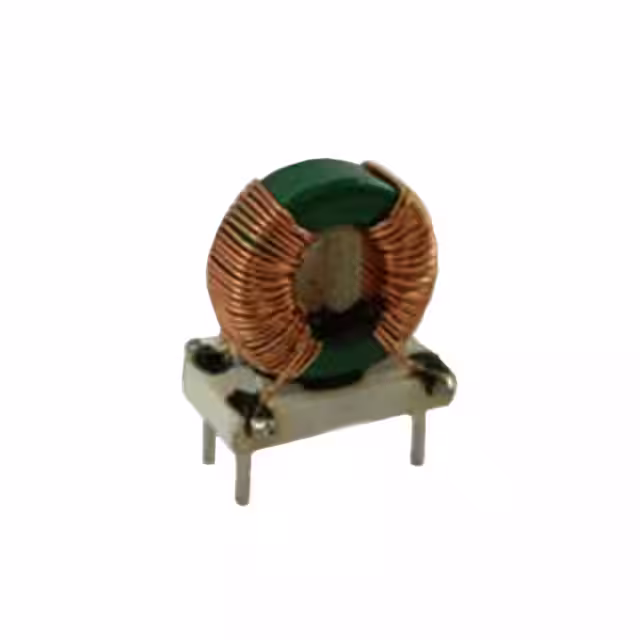

CMT-8101-BCMC 4MH 1.7A 2LN TH ESD Triad Magnetics |
1,295 | 3.30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 1.7A | 173mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

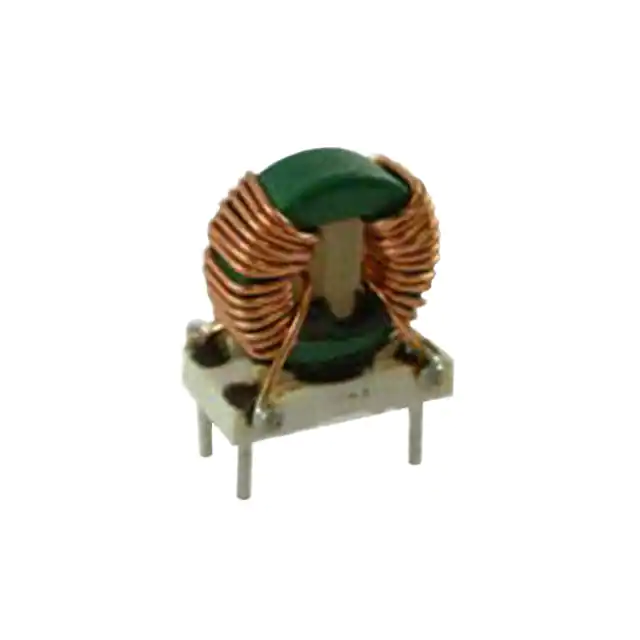

CMT-8102-BCMC 2.5MH 2.4A 2LN TH ESD Triad Magnetics |
3,421 | 3.30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2.4A | 90mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

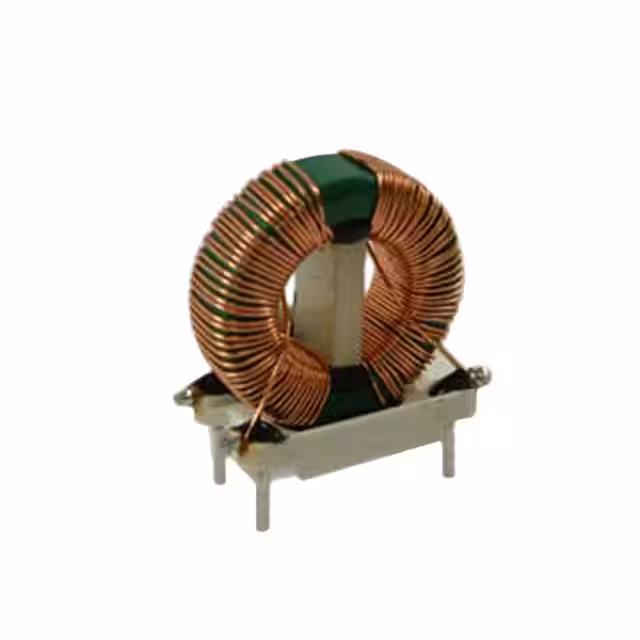

CMT-8103-BCMC 1MH 4.8A 2LN TH ESD Triad Magnetics |
4,220 | 3.30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

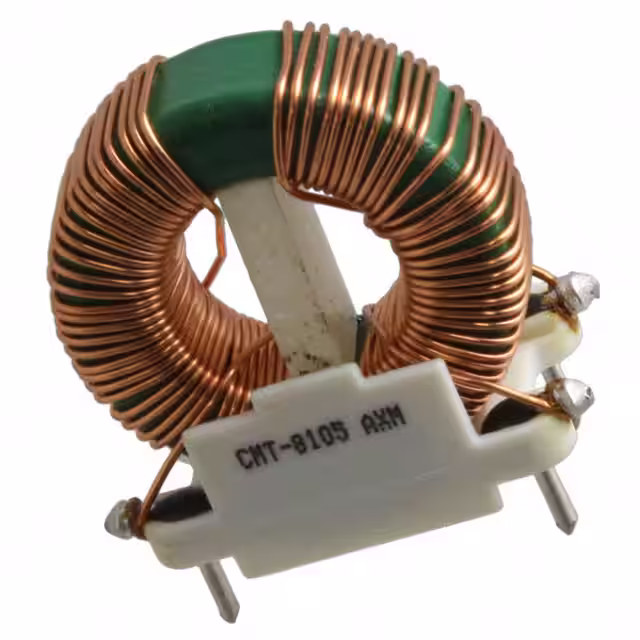

CMT-8105CMC 7MH 2.8A 2LN TH ESD Triad Magnetics |
3,261 | 7.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

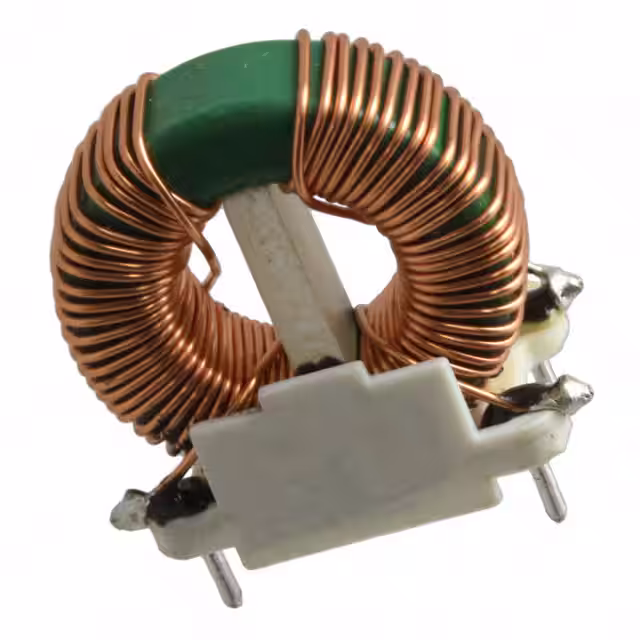

CMT-8106CMC 5MH 3.7A 2LN TH ESD Triad Magnetics |
3,511 | 7.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 3.7A | 70mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

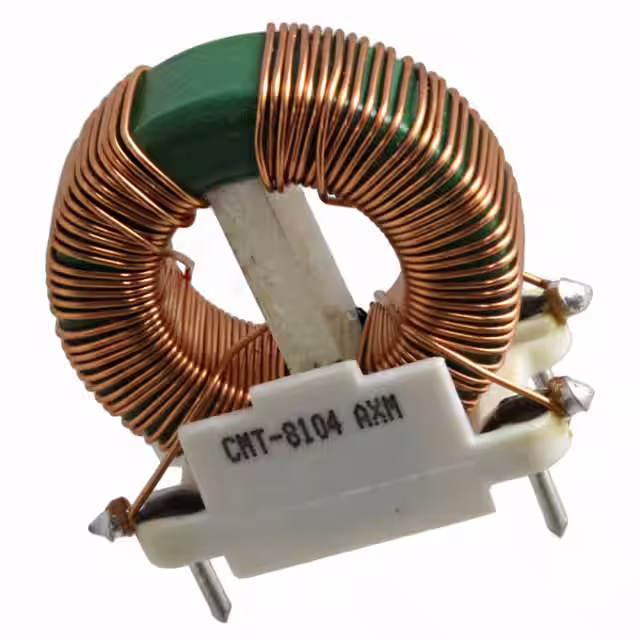

CMT-8104CMC 10MH 2.4A 2LN TH ESD Triad Magnetics |
4,396 | 6.67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

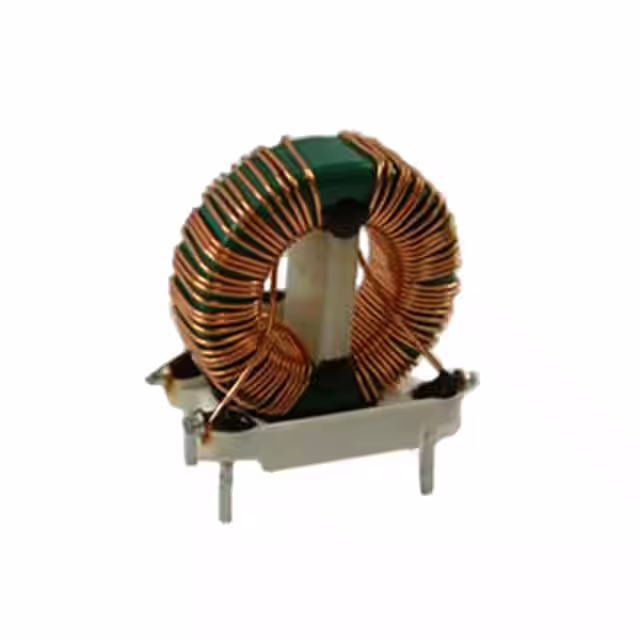

CMT-8104-BCMC 10MH 2.4A 2LN TH ESD Triad Magnetics |
1,130 | 4.53 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

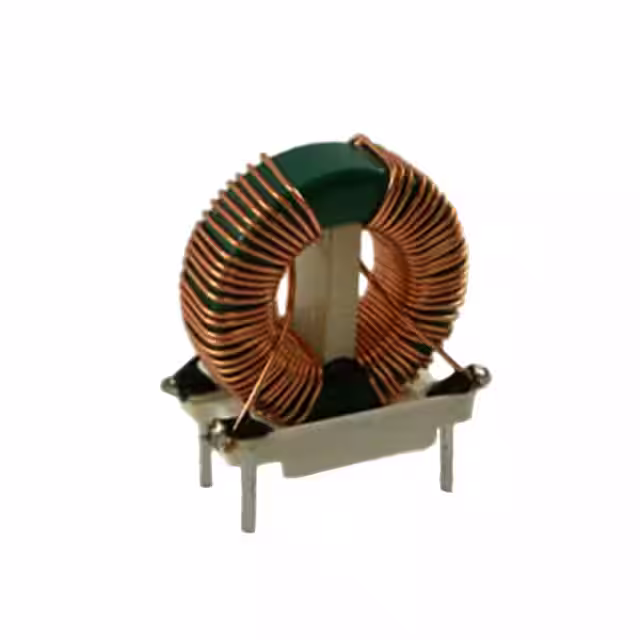

CMT-8105-BCMC 7MH 2.8A 2LN TH ESD Triad Magnetics |
3,463 | 4.53 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
