Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMF23H-103231COMMON MODE INDUCTOR - L = 10MH Triad Magnetics |
4,268 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 2.3A | 210mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-393121COMMON MODE INDUCTOR - L = 39MH Triad Magnetics |
1,079 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 39 mH @ 10 kHz | 1.2A | 766mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-473111COMMON MODE INDUCTOR - L = 47MH Triad Magnetics |
3,591 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 1.1A | 884mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-473111COMMON MODE INDUCTOR - L = 47MH Triad Magnetics |
1,718 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 1.1A | 884mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-153191COMMON MODE INDUCTOR - L = 15MH Triad Magnetics |
4,819 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 15 mH @ 10 kHz | 1.9A | 310mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-273141COMMON MODE INDUCTOR - L = 27MH Triad Magnetics |
1,940 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 10 kHz | 1.4A | 484mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-104700COMMON MODE INDUCTOR - L = 100MH Triad Magnetics |
2,244 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 10 kHz | 700mA | 1.99Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-393121COMMON MODE INDUCTOR - L = 39MH Triad Magnetics |
4,400 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 39 mH @ 10 kHz | 1.2A | 766mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

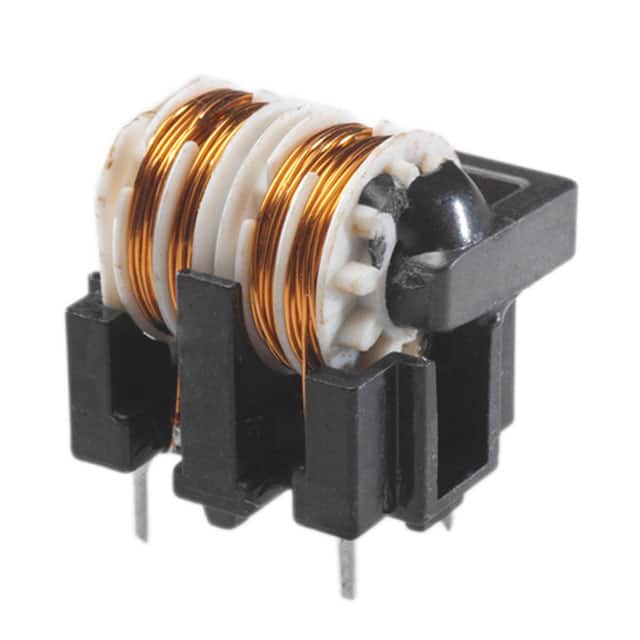

UT2020-001CMC 9MH 500MA 2LN TH ESD Triad Magnetics |
1,357 | 4.22 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 500mA | 1.4Ohm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
UT2020-002CMC 4.5MH 600MA 2LN TH ESD Triad Magnetics |
3,159 | 4.22 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 600mA | 750mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
