Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448021230CMC 30MH 1.2A 2LN TH Würth Elektronik |
3,186 | 9.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 1.2A | 280mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

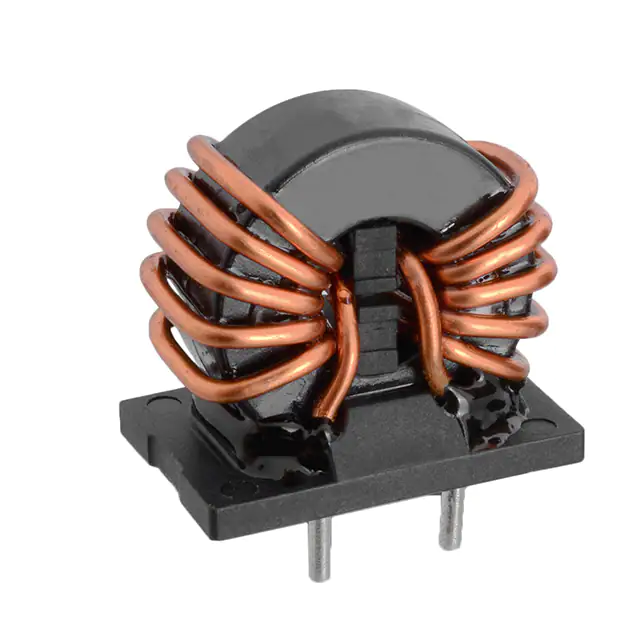

7448020680CMC 80MH 600MA 2LN TH Würth Elektronik |
3,382 | 9.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 80 mH @ 10 kHz | 600mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744844471CMC 470UH 9A 2LN TH Würth Elektronik |
3,407 | 13.13 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 470 µH @ 10 kHz | 9A | 16mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

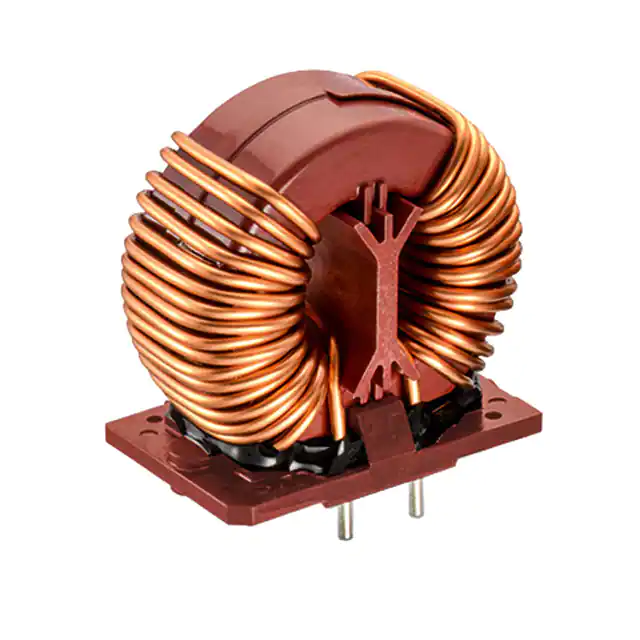

744830007215CMC 700UH 21.5A 2LN TH Würth Elektronik |
2,825 | 14.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 21.5A | 3.8mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

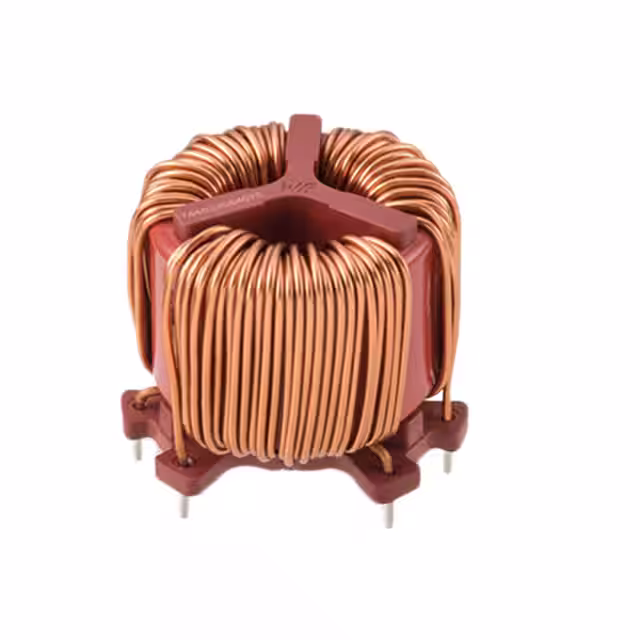

744833027110CMC 2.7MH 11A 3LN TH Würth Elektronik |
2,243 | 20.75 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 2.7 mH @ 10 kHz | 11A | 18mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
744833120060CMC 12MH 6A 3LN TH Würth Elektronik |
4,993 | 20.75 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 12 mH @ 10 kHz | 6A | 65mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
744835021220CMC 2.1MH 22A 3LN TH Würth Elektronik |
2,596 | 45.67 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.1 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744837010290CMC 1MH 29A 3LN TH Würth Elektronik |
3,997 | 54.50 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1 mH @ 10 kHz | 29A | 5mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744837006400CMC 600UH 40A 3LN TH Würth Elektronik |
2,844 | 54.50 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 600 µH @ 10 kHz | 40A | 3.2mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744839029220CMC 29MH 22A 3LN TH Würth Elektronik |
2,408 | 54.50 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 29 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
