Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-18D431FCMC 10MH 1A 2LN TH Panasonic Electronic Components |
2,505 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1A | 384mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D450ACMC 2A 2LN TH Panasonic Electronic Components |
1,264 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 110mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-18D216CMC 3.9MH 1A 2LN TH Panasonic Electronic Components |
1,809 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.9 mH @ 1 kHz | 1A | 294mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D217CMC 1.5MH 1.6A 2LN TH Panasonic Electronic Components |
4,250 | 1.60 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.5 mH @ 1 kHz | 1.6A | 119mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D617FCMC 2.2MH 2.8A 2LN TH Panasonic Electronic Components |
2,827 | 4.33 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.2 mH @ 1 kHz | 2.8A | 58mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D656JCMC 1.6A 2LN TH Panasonic Electronic Components |
4,384 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.6A | 225mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D608CMC 1MH 3.4A 2LN TH Panasonic Electronic Components |
4,439 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 3.4A | 45mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D612CMC 22MH 1A 2LN TH Panasonic Electronic Components |
4,046 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 1 kHz | 1A | 540mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D666ACMC 2.8A 2LN TH Panasonic Electronic Components |
1,912 | 2.76 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.8A | 58mOhm (Typ) | - | - | - | - | - | - | - | - |
|

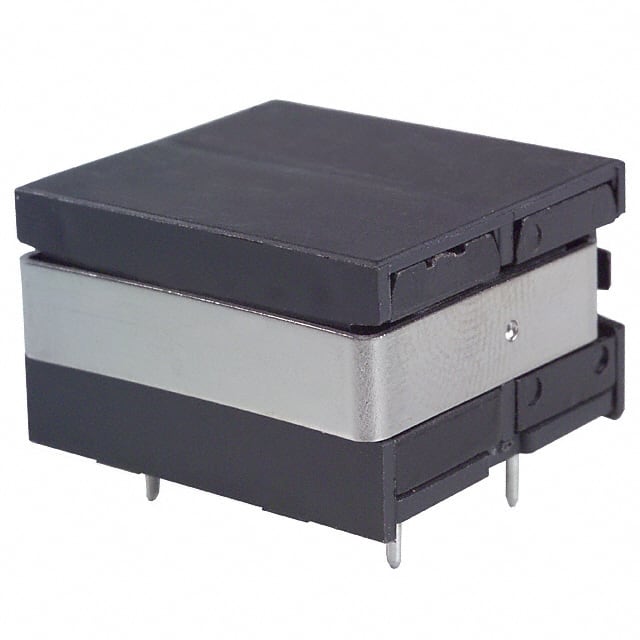

ELF-23F003ACMC 300MA 2LN TH Panasonic Electronic Components |
2,607 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 300mA | 2.989Ohm (Typ) | - | - | - | - | - | - | - | - |
