Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

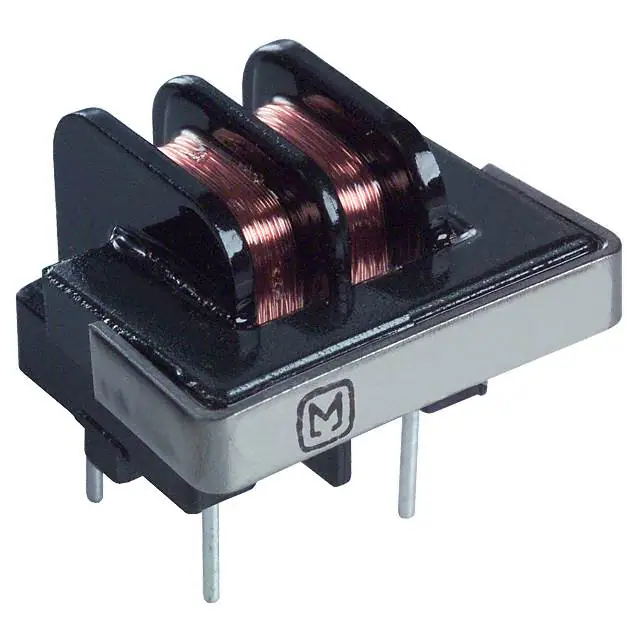

ELF-14M100ECMC 1A 2LN TH Panasonic Electronic Components |
3,926 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 250mOhm (Typ) | - | - | - | - | - | - | - | - |
|

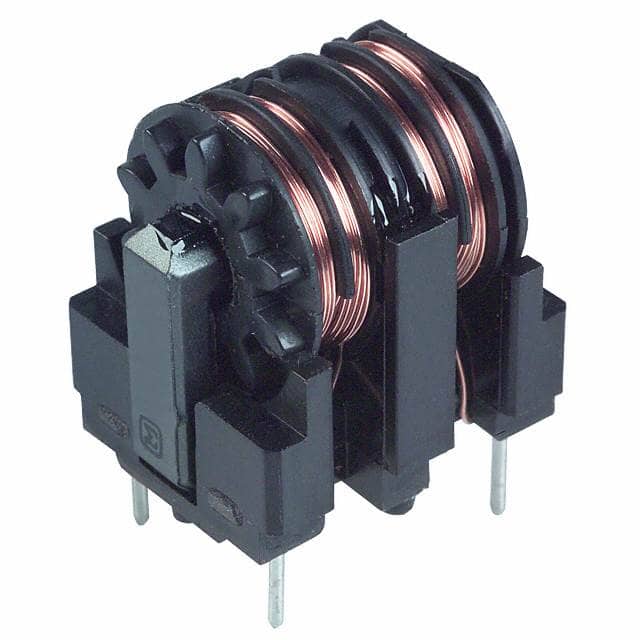

ELF-16M020ACMC 200MA 2LN TH Panasonic Electronic Components |
1,843 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 200mA | 3.65Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M030ACMC 300MA 2LN TH Panasonic Electronic Components |
4,439 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 300mA | 2.7Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M040ACMC 400MA 2LN TH Panasonic Electronic Components |
3,667 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 400mA | 1.8Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M050ACMC 500MA 2LN TH Panasonic Electronic Components |
4,018 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 500mA | 980mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M060ACMC 600MA 2LN TH Panasonic Electronic Components |
4,091 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 600mA | 800mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M070ACMC 700MA 2LN TH Panasonic Electronic Components |
3,400 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 700mA | 550mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M080ACMC 800MA 2LN TH Panasonic Electronic Components |
3,727 | 2.30 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 800mA | 400mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M100ACMC 1A 2LN TH Panasonic Electronic Components |
3,434 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 270mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M130ACMC 1.3A 2LN TH Panasonic Electronic Components |
4,990 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.3A | 160mOhm (Typ) | - | - | - | - | - | - | - | - |
