Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

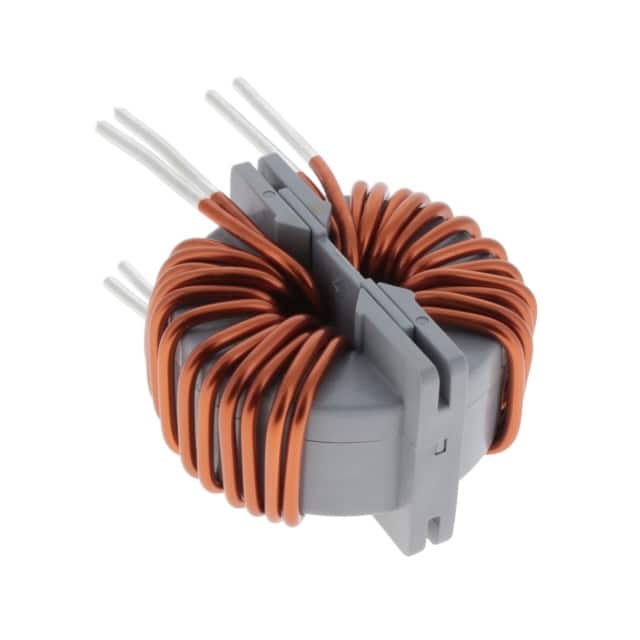

LDFL039172VJUV0ECMC 1.7MH 39A 2LN TH Chemi-Con |
710 | 20.23 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 1.7 mH @ 100 kHz | 39A | 1.5mOhm | 700V | - | - | - | - | - | - | - |
|

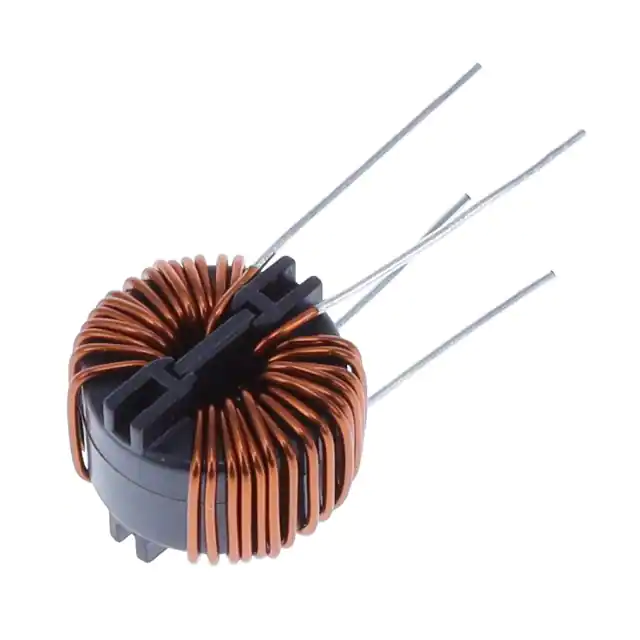

LDFL004272VS-V0ECMC 2.7MH 3.5A 2LN TH Chemi-Con |
157 | 8.29 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2.7 mH @ 100 kHz | 3.5A | 38mOhm | 250V | - | - | - | - | - | - | - |
|
|
LDFL006102VS-V0ECMC 1MH 5.5A 2LN TH Chemi-Con |
356 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 1 mH @ 100 kHz | 5.5A | 16mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFL002302LS-V0ENANOCRYSTALLINE COMMON MODE COIL Chemi-Con |
180 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 85mOhm | - | - | - | - | - | - | - | - |
|
|
LDFL001802LS-V0ENANOCRYSTALLINE COMMON MODE COIL Chemi-Con |
200 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 28 mH @ 10 kHz | 1A | 200mOhm | - | - | - | - | - | - | - | - |
|
|
LDFL014172VD-V0ECMC 1.7MH 14A 2LN TH Chemi-Con |
462 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 1.7 mH @ 100 kHz | 14A | 7mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFW012202Y6-V0ECMC 2MH 12A 2LN TH Chemi-Con |
462 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 12A | 7.5mOhm (Typ) | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFW013412YV-V0ECMC 4.1MH 13A 2LN TH Chemi-Con |
199 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 4.1 mH @ 100 kHz | 13A | 10mOhm (Typ) | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFL009412VD-V0ECMC 4.1MH 9A 2LN TH Chemi-Con |
456 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 4.1 mH @ 100 kHz | 9A | 16mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFL006832VD-V0ECMC 8.3MH 5.5A 2LN TH Chemi-Con |
407 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 8.3 mH @ 100 kHz | 5.5A | 26mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
