Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

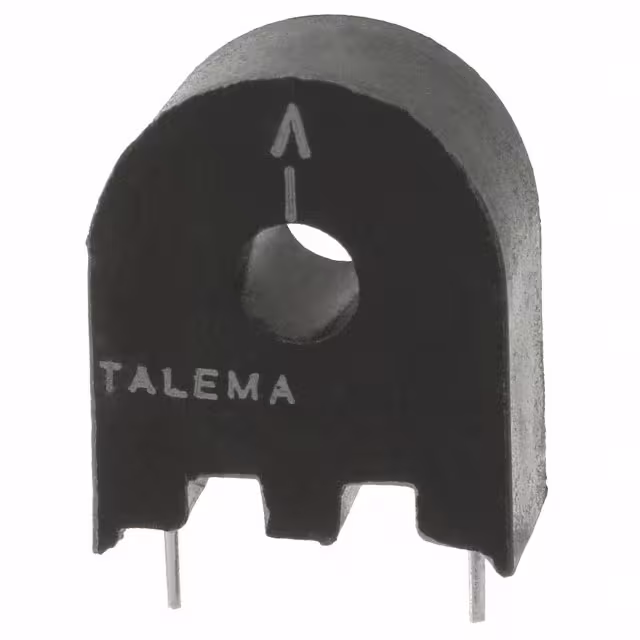

AX-0750CURR SENSE XFMR 7.5A T/H Talema Group LLC |
1,469 | 2.49 |
|
Datasheet |
AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 7.5 A | - | - | - | 750:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

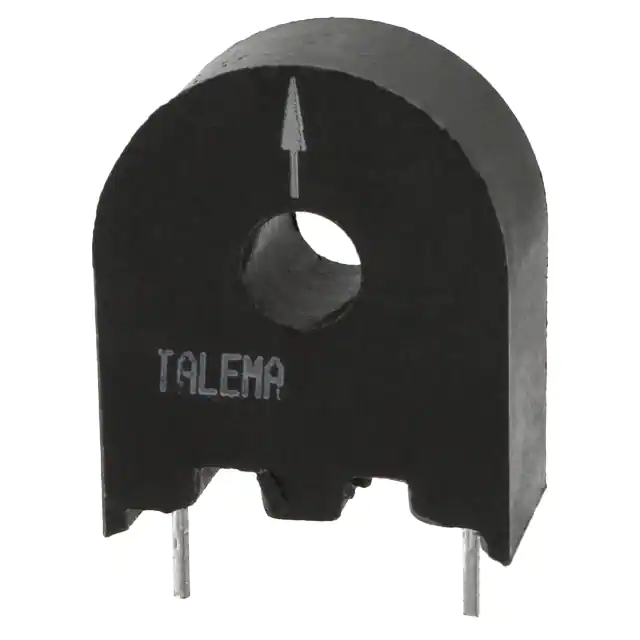

AX-1000CURR SENSE XFMR 10A T/H Talema Group LLC |
1,854 | 2.68 |
|
Datasheet |
AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

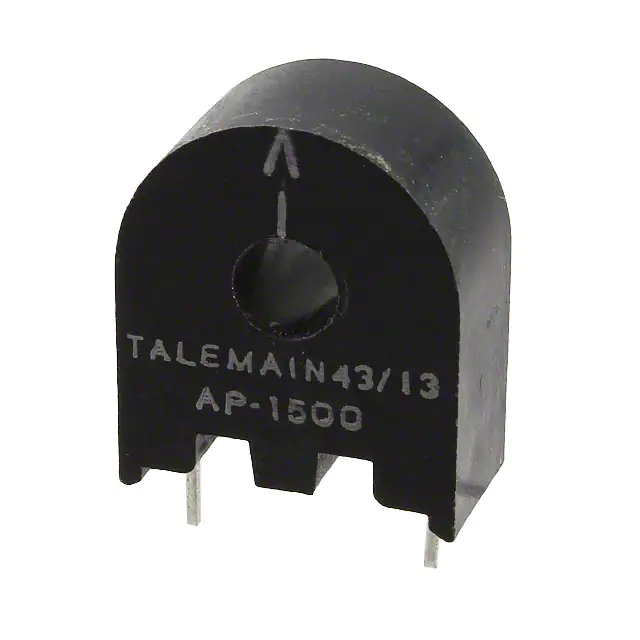

AP-1500CURR SENSE XFMR 10A T/H Talema Group LLC |
1,256 | 2.81 |
|
Datasheet |
AP | Tray | Active | - | Non-Invasive (Solid Core) | 10 A | - | - | - | 1500:1 | 120Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AX-1500CURR SENSE XFMR 15A T/H Talema Group LLC |
2,698 | 3.01 |
|
Datasheet |
AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1500:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

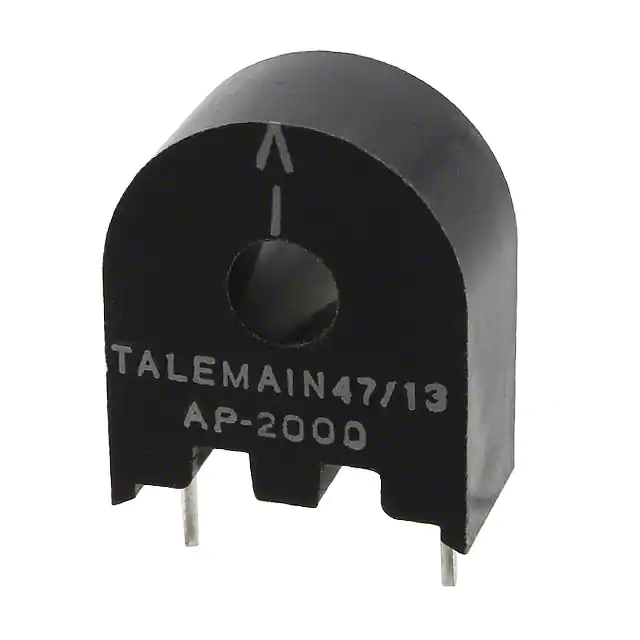

AP-2000CURR SENSE XFMR 15A T/H Talema Group LLC |
1,226 | 3.07 |
|
Datasheet |
AP | Tray | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2000:1 | 235Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

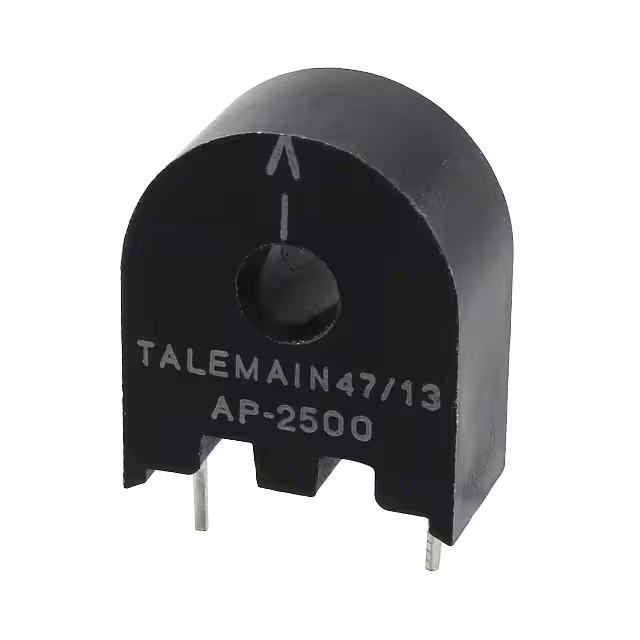

AP-2500CURR SENSE XFMR 15A T/H Talema Group LLC |
1,053 | 3.16 |
|
Datasheet |
AP | Tray | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2500:1 | 330Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

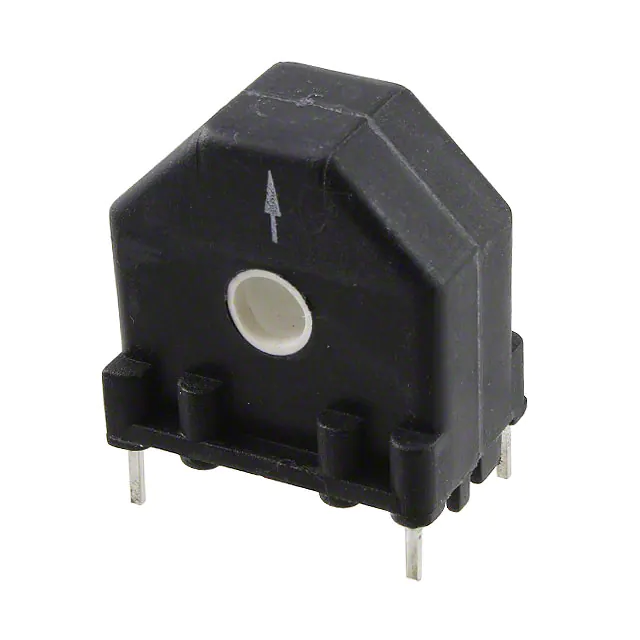

ASM-020CURR SENSE XFMR 10% 50/60HZ 20A Talema Group LLC |
3,049 | 3.59 |
|
Datasheet |
ASM | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | - | 0.906" L x 0.610" W (23.00mm x 15.50mm) | 0.984" (25.00mm) | PC Pin |
|

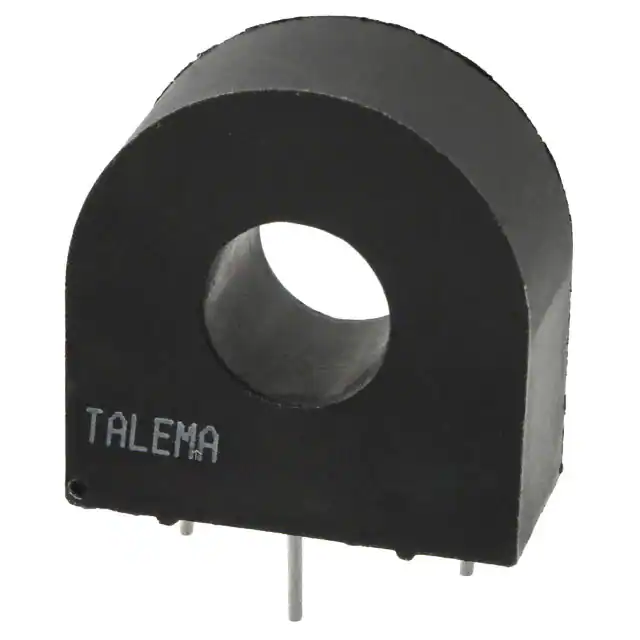

ACX-1050CURR SENSE XFMR 2500:1 50A T/H Talema Group LLC |
1,157 | 3.60 |
|
Datasheet |
ACX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 2500:1 | - | - | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
AS-407CURR SENSE XFMR 1:500 80A T/H Talema Group LLC |
3,917 | 4.02 |
|
Datasheet |
AS | - | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | - | 7500VµS | 1:500 | - | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AZ-1000CURR SENSE XFMR 1000:1 50A SMD Talema Group LLC |
3,272 | 4.14 |
|
Datasheet |
AZ | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 1000:1 | - | 72Ohm Primary | - | Chassis Mount | 0.748" Dia (19.00mm) | 0.453" (11.50mm) | Wire Leads |
