Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

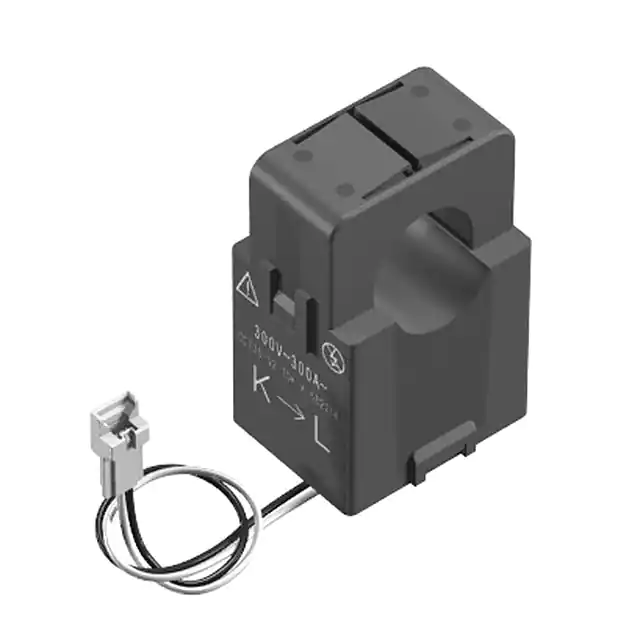

CCT354571-300-24-02CURR SENSE XFMR 300A CHAS MNT TDK Corporation |
1,794 | 56.56 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 300 A | - | - | - | 3000:1 | 103Ohm | - | Chassis Mount | 1.909" L x 1.555" W (48.50mm x 39.50mm) | 2.835" (72.00mm) | Wire Leads with Connector |
|

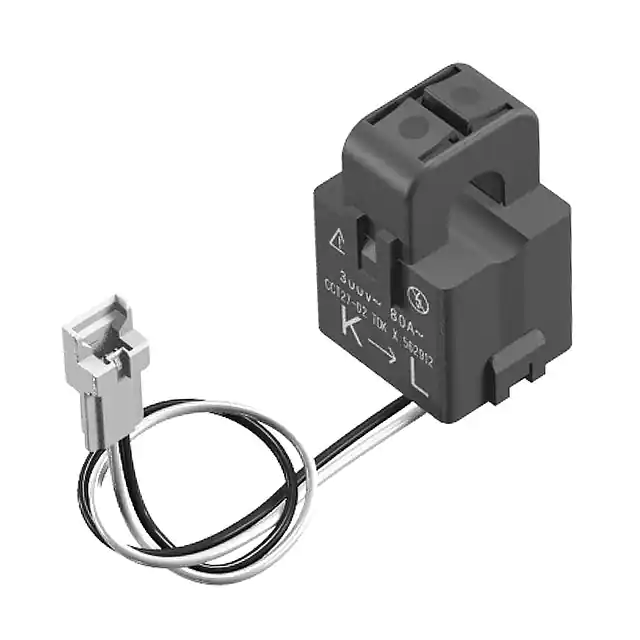

CCT272440-80-10-02CURR SENSE XFMR 80A CHAS MNT TDK Corporation |
3,466 | 26.00 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 80 A | - | - | - | 3000:1 | 352Ohm | - | Chassis Mount | 1.201" L x 1.083" W (30.50mm x 27.50mm) | 1.634" (41.50mm) | Wire Leads with Connector |
|

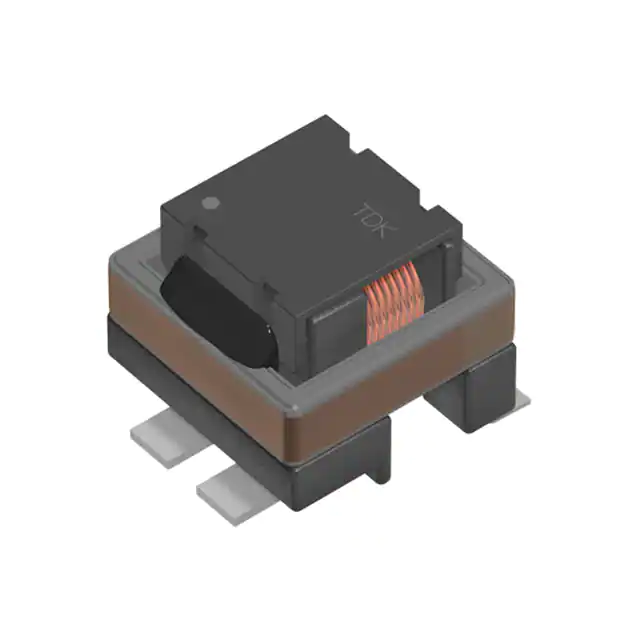

VST10/9EE-200S1C2CURR SENSE XFMR 1:100 SMD TDK Corporation |
2,759 | 9.52 |
|
Datasheet |
VST | Tape & Reel (TR) | Active | - | - | - | - | - | 1:100 | - | - | - | Surface Mount | 0.476" L x 0.425" W (12.10mm x 10.80mm) | 0.394" (10.00mm) | - |
|

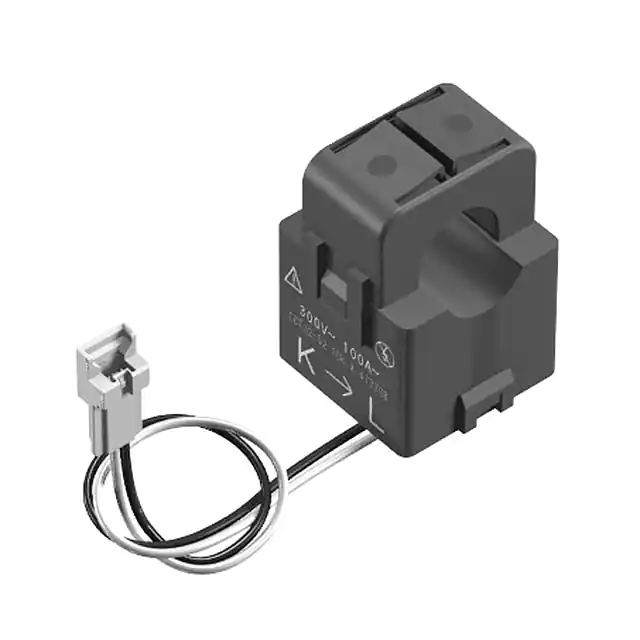

CCT323047-100-16-02CURR SENSE XFMR 100A CHAS MNT TDK Corporation |
3,250 | 32.66 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 100 A | - | - | - | 3000:1 | 285Ohm | - | Chassis Mount | 1.378" L x 1.280" W (35.00mm x 32.50mm) | 1.870" (47.50mm) | Wire Leads with Connector |
