DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADEN02STR04SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,906 | 0.00 |
|
Datasheet |
ADE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADEN10TTU04SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,167 | 0.00 |
|
Datasheet |
ADE | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADEN10STU04SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,601 | 0.00 |
|
Datasheet |
ADE | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

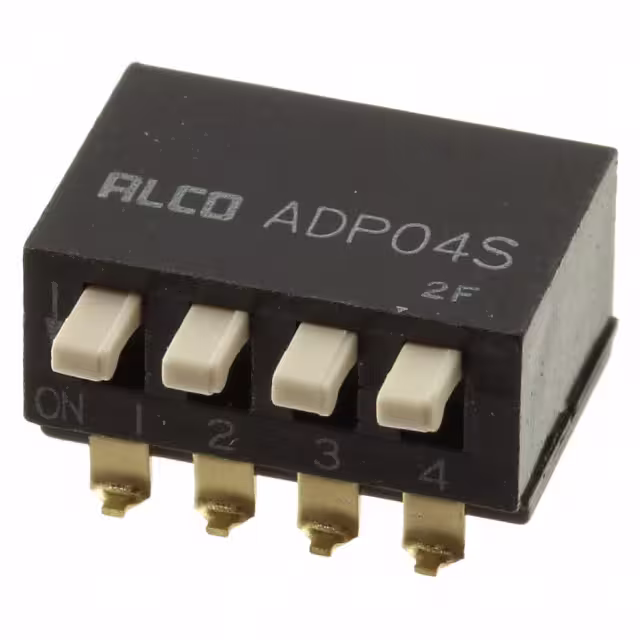

1571999-9SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,278 | 1.35 |
|
Datasheet |
ADP | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
435640-5SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
2,608 | 1.79 |
|
Datasheet |
7100 | Bulk | Active | SPST | 8 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
5-1571999-6SWITCH PIANO DIP SPST TE Connectivity ALCOSWITCH Switches |
2,986 | 1.43 |
|
Datasheet |
ADPA | Tube | Active | SPST | 8 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

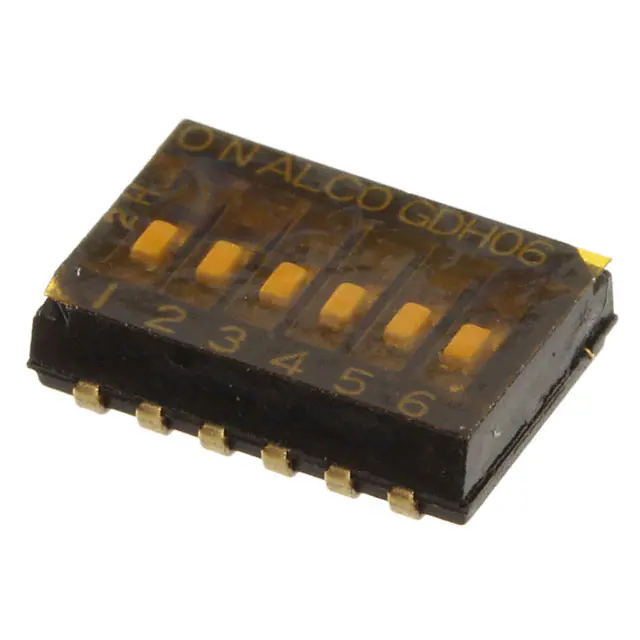

GDH06SA04SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,990 | 1.63 |
|
Datasheet |
GDH | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

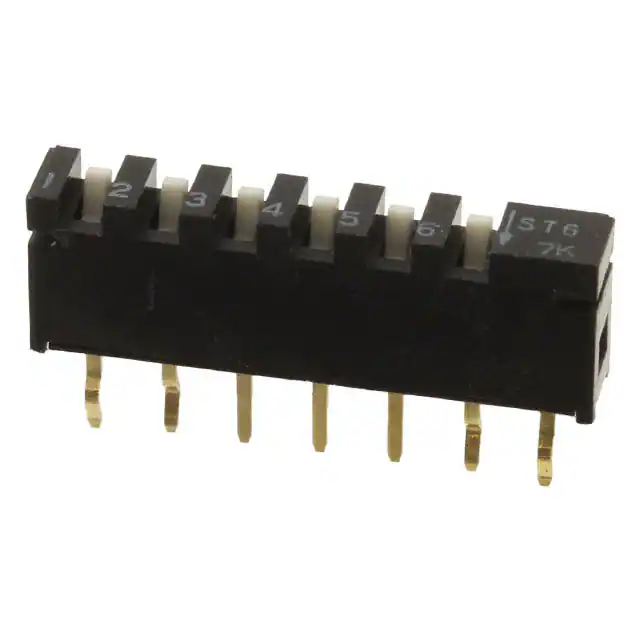

1977104-3SWITCH SLIDE DIP SPST 0.01A 5V TE Connectivity ALCOSWITCH Switches |
11,950 | 8.49 |
|
Datasheet |
STV | Tube | Active | SPST | 6 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
5161390-6SWITCH SLIDE DIP SPST 0.025A 50V TE Connectivity ALCOSWITCH Switches |
1,101 | 4.37 |
|
Datasheet |
DIP | Box | Active | SPST | 6 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
5161390-8SWITCH SLIDE DIP SPST 0.025A 50V TE Connectivity ALCOSWITCH Switches |
500 | 4.24 |
|
Datasheet |
DIP | Box | Active | SPST | 8 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
