DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

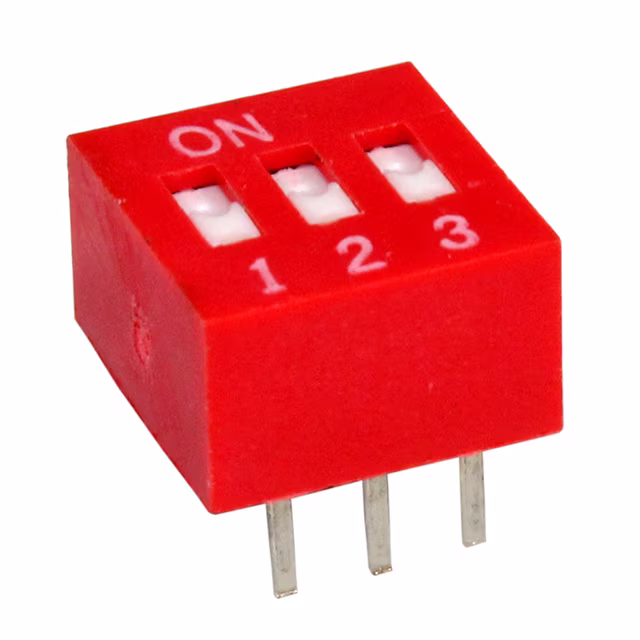

KG03RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,730 | 0.50 |
|
Datasheet |
KG | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

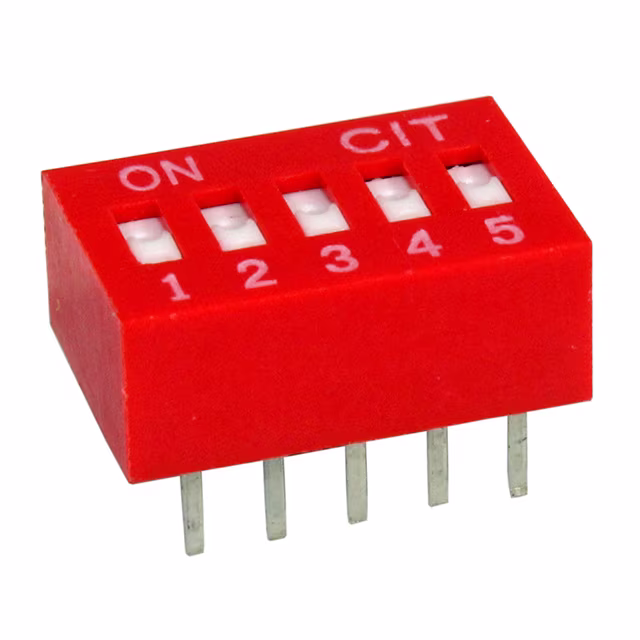

KG05RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,612 | 0.52 |
|
Datasheet |
KG | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG05RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,874 | 0.56 |
|
Datasheet |
KG | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

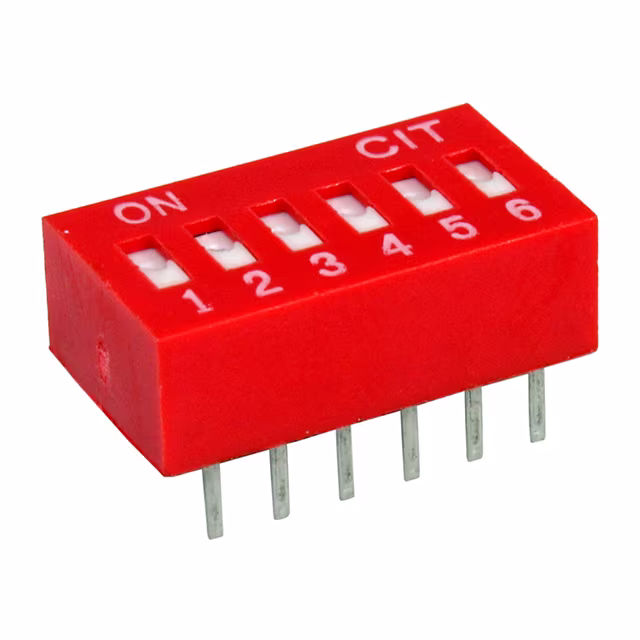

KG06RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,534 | 0.54 |
|
Datasheet |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG06RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,046 | 0.68 |
|
Datasheet |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG07RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,630 | 0.58 |
|
Datasheet |
KG | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

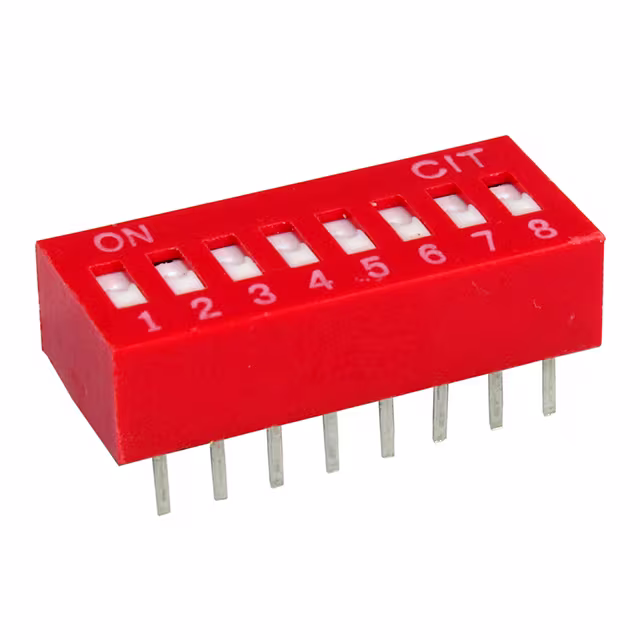

KG08RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,011 | 0.59 |
|
Datasheet |
KG | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG07RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,167 | 0.61 |
|
Datasheet |
KG | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KG08RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,803 | 0.80 |
|
Datasheet |
KG | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

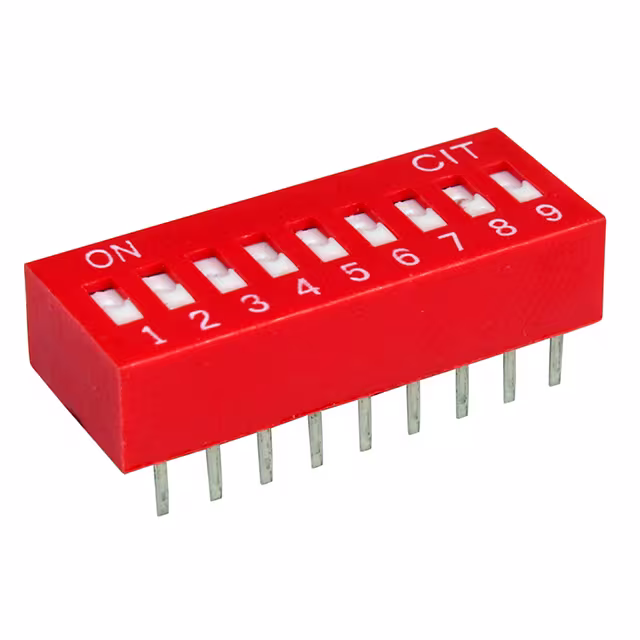

KG09RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,512 | 0.65 |
|
Datasheet |
KG | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
