Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5540#A02ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
2,099 | 55.92 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A12ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
4,104 | 55.92 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

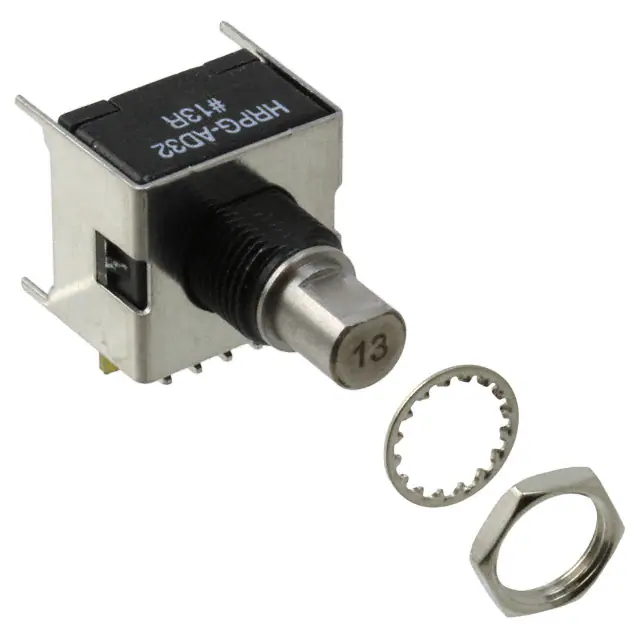

HRPG-AD32#13RROTARY ENCODER OPTICAL 32PPR Broadcom Limited |
130 | 40.27 |
|
Datasheet |
HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

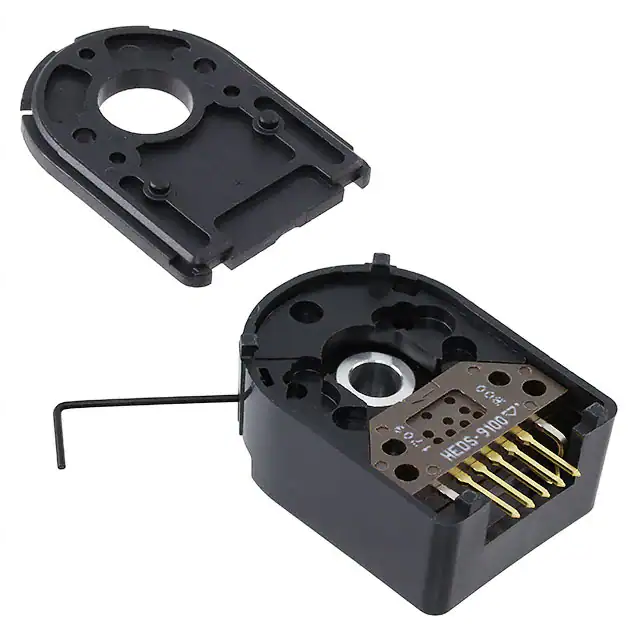

HEDM-5500#B12ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
105 | 56.97 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

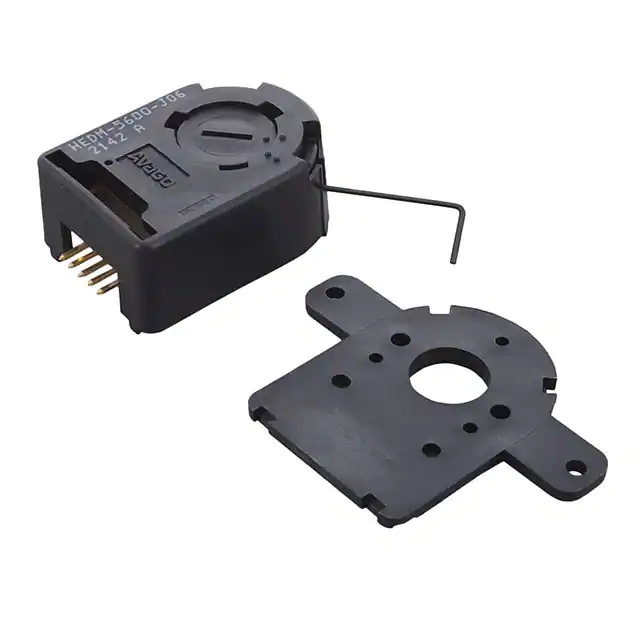

HEDM-5600#J06ROTARY ENCODER OPTICAL 1024PPR Broadcom Limited |
105 | 56.97 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDR-8600-100IC,2CH,REEL,304LPI,1000PC Broadcom Limited |
980 | 17.90 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-8600-102IC,2CH,REEL,304LPI,100PC Broadcom Limited |
400 | 17.90 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AR25-AS0125BITS ABS UPTO 60MM SSI/485/ESL Broadcom Limited |
449 | 36.72 |
|
Datasheet |
- | Tray | Active | Not Verified | Absolute | Digital, SSI | - | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-AB0225BITS ABS UPTO 60MM BISS C 1K Broadcom Limited |
953 | 37.90 |
|
Datasheet |
- | Tray | Active | Not Verified | Absolute | BiSS-C | 1000 | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-AB0125BITS ABS UPTO 60MM BISS C 100 Broadcom Limited |
185 | 39.09 |
|
Datasheet |
- | Tray | Active | Not Verified | Absolute | BiSS-C | 100 | - | - | No | No | - | - | - | - | - | - |
