DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1606KL-05W-B59-L50FAN AXIAL 40X15MM 24VDC WIRE |
3,048 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 1.49 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1608KL-01W-B19-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,821 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB | 350 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B29-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
3,963 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.5dB | 600 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B29-L50FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,351 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB | 600 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B49-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,866 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB | 1.34 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B59-L50FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,280 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB | 1.9 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B19-L00FAN AXIAL 40X20MM 12VDC WIRE |
1,802 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB | 480 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B19-L50FAN AXIAL 40X20MM 12VDC WIRE |
1,168 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 20.0dB | 480 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B29-L50FAN AXIAL 40X20MM 12VDC WIRE |
3,436 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB | 720 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B39-L00FAN AXIAL 40X20MM 12VDC WIRE |
4,675 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.5dB | 840 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B39-L50FAN AXIAL 40X20MM 12VDC WIRE |
4,069 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.5dB | 840 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B49-L50FAN AXIAL 40X20MM 12VDC WIRE |
1,320 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.08 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B59-L50FAN AXIAL 40X20MM 12VDC WIRE |
1,395 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB | 1.32 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B19-L50FAN AXIAL 40X20MM 24VDC WIRE |
2,013 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 20.0dB | 960 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B39-L00FAN AXIAL 40X20MM 24VDC WIRE |
4,880 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.5dB | 1.44 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B39-L50FAN AXIAL 40X20MM 24VDC WIRE |
1,363 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.5dB | 1.44 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|

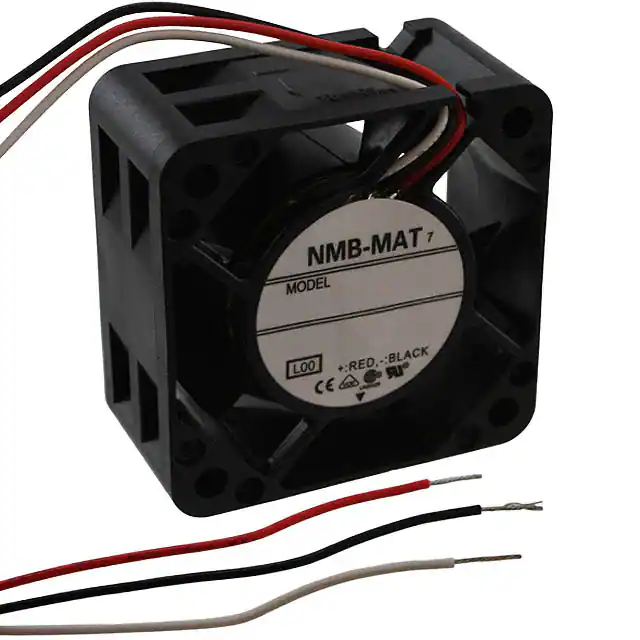

1608KL-05W-B49-L00FAN AXIAL 40X20MM 24VDC WIRE |
3,176 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB | 1.68 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B49-L50FAN AXIAL 40X20MM 24VDC WIRE |
2,790 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.68 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B59-L50FAN AXIAL 40X20MM 24VDC WIRE |
3,425 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB | 1.92 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
2106KL-04W-B39-L00FAN AXIAL 52X15MM 12VDC WIRE |
3,753 | 0.00 |
|
Datasheet |
2106KL | Box | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.0dB | 840 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
