Ferrite Cores
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRF322015MKDXCOMMON MODE COILS Chemi-Con |
2,317 | 0.00 |
|
Datasheet |
FW | Bulk | Active | Toroid | - | Nanocrystalline | 1.386" (35.20mm) | 33.1 µH | - | Ungapped | - | - | - | 80.9 | 69.0 | - | - | Uncoated | 0.681" (17.30mm) | - | - |
|

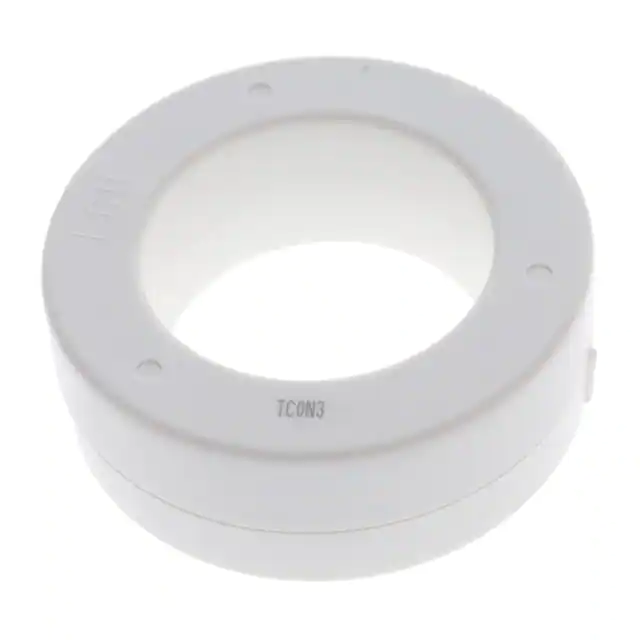

LRF624520MKCXFERRITE CORE TOROID 31.5UH Chemi-Con |
2,121 | 24.85 |
|
Datasheet |
FL-V | Bulk | Active | Toroid | - | Nanocrystalline | 2.598" (66.00mm) | 31.5 µH | - | Ungapped | - | - | - | - | 1681.0 | - | - | Uncoated | - | 0.071" (1.81mm) | 0.945" (24.00mm) |
|
|
LRF322015MKCXCOMMON MODE COILS Chemi-Con |
3,921 | 0.00 |
|
Datasheet |
FL-V | Bulk | Active | Toroid | - | Nanocrystalline | 1.386" (35.20mm) | 33.1 µH | - | Ungapped | - | 31000 | - | 80.9 | 69.0 | - | - | Uncoated | 0.681" (17.30mm) | - | - |
|
|
LRF462715MKCXCOMMON MODE COILS Chemi-Con |
3,942 | 0.00 |
|
Datasheet |
FL-V | Bulk | Active | Toroid | - | Nanocrystalline | 1.945" (49.40mm) | 38.7 µH | - | Ungapped | - | 31000 | - | 114.7 | 114.0 | - | - | Uncoated | 0.709" (18.00mm) | - | - |
