Ferrite Cores
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65517D0000R030FERRITE CORE P 2.5UH N30 2PCS EPCOS - TDK Electronics |
4,592 | 1.08 |
|
Datasheet |
P9/5 | Box | Active | P (Pot Core) | P 9 x 5 | N30 | 0.366" (9.30mm) | 2.5 µH | -20%, +30% | Ungapped | 2490.0 | 4300 | 1.25 | 12.5 | 10.0 | - | 125.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
B65517W0000R030FERRITE CORE P 2.5UH N30 2PCS EPCOS - TDK Electronics |
2,437 | 1.08 |
|
Datasheet |
P9/5 | Box | Active | P (Pot Core) | P 9 x 5 | N30 | 0.366" (9.30mm) | 2.5 µH | -20%, +30% | Ungapped | 2490.0 | 4300 | 1.13 | 13.4 | 11.9 | 9.3 | 159.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
|
B65517D0000R033FERRITE CORE M33 EPCOS - TDK Electronics |
2,129 | 1.09 |
|
Datasheet |
P9/5 | Box | Active | - | P 9 x 5 | M33 | 0.366" (9.30mm) | - | - | - | - | 750 | 1.25 | 12.5 | 10.0 | - | 125.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
B65843P0000Y038FERRITE CORE EPO 6.6UH T38 2PCS EPCOS - TDK Electronics |
3,437 | 1.11 |
|
Datasheet |
EP13/LP | Box | Active | EPO | EPO 13 | T38 | - | 6.6 µH | -30%, +40% | Ungapped | 7020.0 | 2300 | 1.34 | 25.8 | 19.3 | 14.9 | 498.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.291" (7.40mm) |
|
|
B65843A0000R035FERRITE CORE EP T35 EPCOS - TDK Electronics |
4,660 | 1.11 |
|
Datasheet |
EP13 | Box | Active | EP | EP 13 | T35 | - | - | - | - | - | 6000 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
B65843A0100A038FERRITE CORE EP 100NH T38 2PCS EPCOS - TDK Electronics |
3,989 | 1.12 |
|
Datasheet |
EP13 | Box | Active | EP | EP 13 | T38 | - | 100 nH | ±3% | Gapped | 99.0 | 2300 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
|
B65843A0200B038FERRITE CORE EP 200NH T38 2PCS EPCOS - TDK Electronics |
4,967 | 1.12 |
|
Datasheet |
EP13 | Box | Active | EP | EP 13 | T38 | - | 200 nH | ±4% | Gapped | 198.0 | 2300 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
|
B65843A0200J038FERRITE CORE EP T38 EPCOS - TDK Electronics |
3,868 | 1.12 |
|
Datasheet |
EP13 | Box | Active | EP | EP 13 | T38 | - | - | - | Gapped | - | 10000 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
|
B65843A0250J038FERRITE CORE EP 250NH T38 2PCS EPCOS - TDK Electronics |
3,442 | 1.12 |
|
Datasheet |
EP13 | Box | Active | EP | EP 13 | T38 | - | 250 nH | ±5% | Gapped | 247.0 | 2300 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|

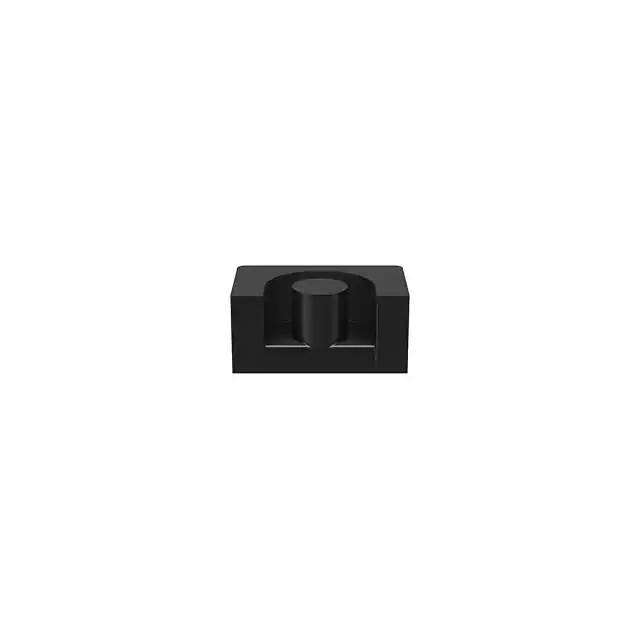

B65843A0315C038FERRITE CORE EP 315NH T38 2PCS EPCOS - TDK Electronics |
4,604 | 1.12 |
|
Datasheet |
EP13 | Box | Active | EP | EP 13 | T38 | - | 315 nH | ±6% | Gapped | 311.0 | 2300 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
