Ferrite Cores
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B67410A0307X606QU150/100/5 PC95 EPCOS - TDK Electronics |
2,075 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B64260L0730X830R87/54.3/13.5 N30 RINGKERN EPCOS - TDK Electronics |
4,727 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

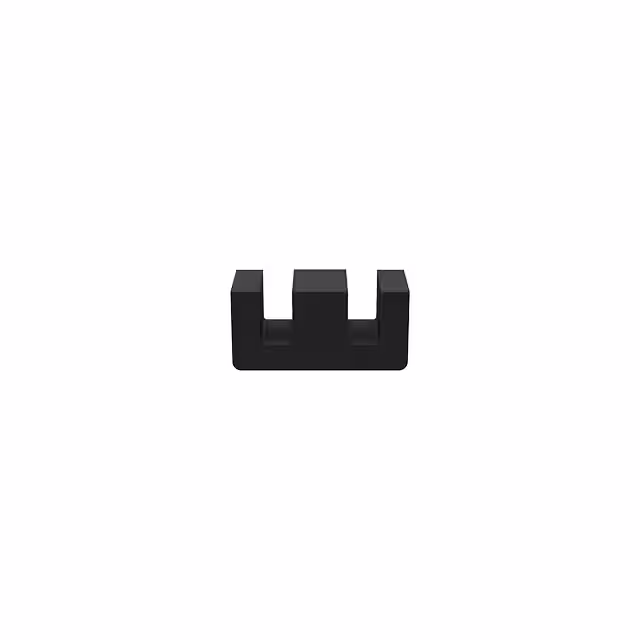

B66894G0000X195FERRITE CORE E N95 EPCOS - TDK Electronics |
3,945 | 43.59 |
|
Datasheet |
E100/60/28 | Bulk | Active | E | E 100/60/28 | N95 | - | - | -20%, +30% | Ungapped | 2520.0 | - | 0.373 | 274.0 | 735.0 | 690.0 | 201390.0 | Uncoated | 2.339" (59.40mm) | 3.949" (100.30mm) | 1.083" (27.50mm) |
|

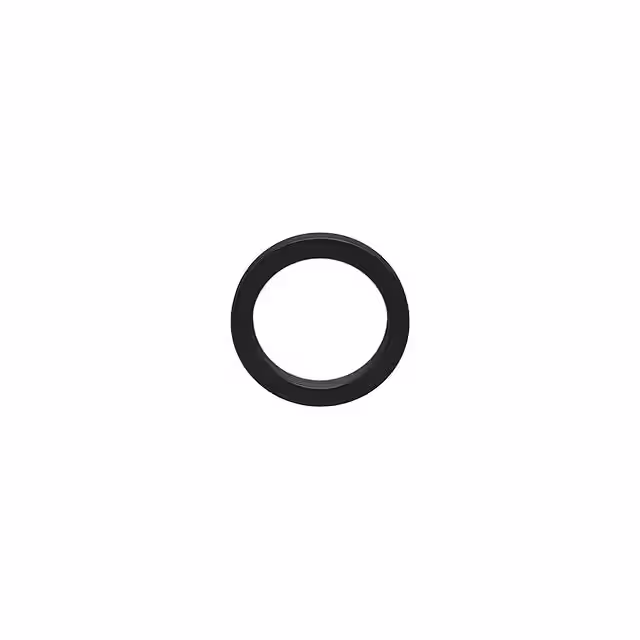

B64290L0084X065FERRITE CORE TOROID 6.5UH T65 EPCOS - TDK Electronics |
1,517 | 44.61 |
|
Datasheet |
TX102/66/15 | Box | Active | Toroid | - | T65 | 4.126" (104.80mm) | 6.5 µH | ±30% | Ungapped | - | 5000 | 0.96 | 255.3 | 267.2 | - | 68220.0 | Epoxy | 0.650" (16.50mm) | - | - |
|
|
B67410A0259X195QU150/100/8 N95 EPCOS - TDK Electronics |
1,448 | 0.00 |
|
Datasheet |
B67410 | Tray | Active | Planar E/I | - | N95 | - | - | - | Ungapped | - | 3000 | - | - | - | - | - | Uncoated | 0.315" (8.00mm) | 5.906" (150.00mm) | 3.937" (100.00mm) |
|
|
B67410A0317X187QU152/62/5 N87 EPCOS - TDK Electronics |
1,532 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B65691K0045A048FERRITE CORE P EPCOS - TDK Electronics |
2,316 | 44.99 |
|
Datasheet |
P59/36 | Box | Active | P (Pot Core) | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
|
B64290A0084X065FERRITE CORE TOROID 6.5UH T65 EPCOS - TDK Electronics |
2,891 | 46.14 |
|
Datasheet |
T102/66/15 | Box | Active | Toroid | R 102 x 65.8 x 15 | T65 | 4.016" (102.00mm) | 6.5 µH | ±30% | Ungapped | - | 5000 | 0.96 | 255.3 | 267.2 | - | 68220.0 | Uncoated | 0.591" (15.00mm) | - | - |
|
|
B64290L0705X087R140/103/25 N87 TOROID EPCOS - TDK Electronics |
3,553 | 0.00 |
|
Datasheet |
B64290 | Tray | Active | Toroid | R 140 x 103 x 25 | T37 | 5.661" (143.80mm) | 3.4 µH | ±25% | Ungapped | - | 2200 | 0.82 | 375.8 | 458.9 | - | 172440.0 | Epoxy | 1.071" (27.20mm) | - | - |
|
|
B67410A0145X192QU120/57/24 N92 EPCOS - TDK Electronics |
2,235 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
