FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALD110904SALMOSFET 2N-CH 10.6V 8SOIC |
8,722 | 0.00 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.4V | 420mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI7222DN-T1-E3MOSFET 2N-CH 40V 6A PPAK 1212 |
9,196 | 0.00 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 6A | 42mOhm @ 5.7A, 10V | 1.6V @ 250µA | 29nC @ 10V | 700pF @ 20V | 17.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
|
SP8J66FRATBMOSFET 2P-CH 9A 8SOP |
9,814 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | - | 9A (Ta) | 18.5mOhm @ 9A, 10V | 2.5V @ 1mA | - | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
NVMJD010N10MCLTWGMOSFET 2N-CH 100V 11.8A 8LFPAK |
3,482 | 0.00 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 100V | 11.8A (Ta), 62A (Tc) | 10mOhm @ 17A, 10V | 3V @ 97µA | 26.4nC @ 10V | 1795pF @ 50V | 3.1W (Ta), 84W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-LFPAK |
|
SMA5125MOSFET 3N/3P-CH 60V 10A 12SIP |
9,968 | 0.00 |
|
Datasheet |
- | 12-SIP | Tube | Obsolete | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 60V | 10A | 140mOhm @ 5A, 4V | 2V @ 250µA | - | 460pF @ 10V, 1200pF @ 10V | 4W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
SP8M4FRATBMOSFET N/P-CH 30V 9A 8SOP |
5,397 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 9A (Ta), 7A (Ta) | 18mOhm @ 9A, 10V, 28mOhm @ 7A, 10V | 2.5V @ 1mA | 15nC @ 5V, 25nC @ 5V | 1190pF @ 10V, 2600pF @ 10V | 2W | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
ALD110800SCLMOSFET 4N-CH 10.6V 16SOIC |
3,079 | 0.00 |
|
Datasheet |
EPAD®, Zero Threshold™ | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10.6V | - | 500Ohm @ 4V | 20mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
ALD1108ESCLMOSFET 4N-CH 10V 16SOIC |
5,204 | 0.00 |
|
Datasheet |
EPAD® | 16-SOIC (0.154", 3.90mm Width) | Tube | Not For New Designs | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10V | - | 500Ohm @ 5V | 1.01V @ 1µA | - | 25pF @ 5V | 600mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
ALD110908SALMOSFET 2N-CH 10.6V 8SOIC |
6,783 | 0.00 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.8V | 820mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ALD110914SALMOSFET 2N-CH 10.6V 8SOIC |
8,303 | 0.00 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 5.4V | 1.42V @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SLA5212MOSFET 6N-CH 35V 8A 15ZIP |
3,169 | 0.00 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 35V | 8A | - | - | - | - | - | - | - | - | Through Hole | 15-ZIP |
|
FDMS3604ASMOSFET 2N-CH 30V 13A/23A POWER56 |
4,937 | 0.00 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 13A, 23A | 8mOhm @ 13A, 10V | 2.7V @ 250µA | 29nC @ 10V | 1695pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
|
ALD110808SCLMOSFET 4N-CH 10.6V 16SOIC |
5,177 | 0.00 |
|
Datasheet |
EPAD® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.8V | 820mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
SI7983DP-T1-E3MOSFET 2P-CH 20V 7.7A PPAK SO8 |
9,076 | 0.00 |
|
- |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 7.7A | 17mOhm @ 12A, 4.5V | 1V @ 600µA | 74nC @ 4.5V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
ALD114935SALMOSFET 2N-CH 10.6V 8SOIC |
3,849 | 0.00 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Depletion Mode | 10.6V | 12mA, 3mA | 540Ohm @ 0V | 3.45V @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDMS7700SMOSFET 2N-CH 30V 12A/22A POWER56 |
6,017 | 0.00 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 12A, 22A | 7.5mOhm @ 12A, 10V | 3V @ 250µA | 28nC @ 10V | 1750pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
FDMD82100MOSFET 2N-CH 100V 7A 12POWER |
8,540 | 0.00 |
|
Datasheet |
PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 7A | 19mOhm @ 7A, 10V | 4V @ 250µA | 17nC @ 10V | 1070pF @ 50V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
WI62120MOSFET 650V 13A 14PQFN |
6,650 | 0.00 |
|
Datasheet |
WiseGan™ | 14-PowerLDFN | Tray | Active | GaNFET (Gallium Nitride) | - | - | 650V | 13A | - | 2.2V @ 10mA | 2.75nC @ 6V | 92.7pF @ 400V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-PQFN (6x8) |
|

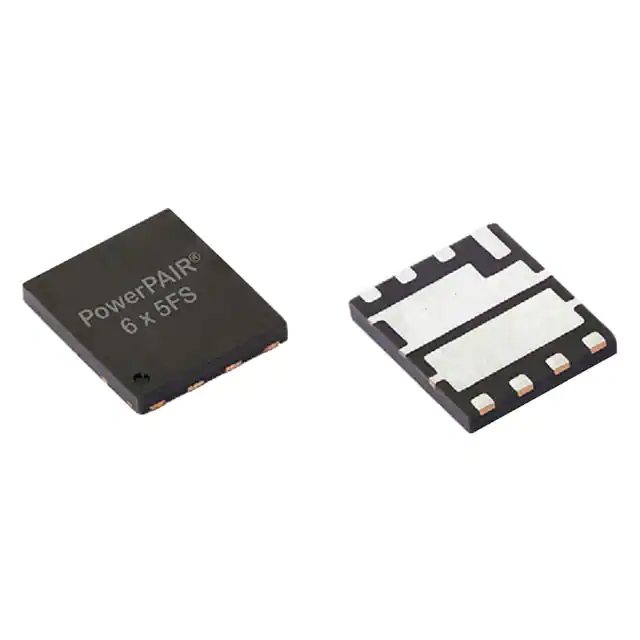

SIZF640DT-T1-GE3MOSFET 2N-CH 40V 41A PWRPAIR |
5,632 | 0.00 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 41A (Ta), 159A (Tc) | 1.37mOhm @ 15A, 10V | 2.4V @ 250µA | 106nC @ 10V | 5750pF @ 20V | 4.2W (Ta), 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAIR® 6x5FS |
|
|
SMA5135MOSFET 3N/3P-CH 60V 6A 12SIP |
6,207 | 0.00 |
|
Datasheet |
- | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3 Phase Inverter) | - | 60V | 6A (Ta) | 220mOhm @ 3A, 4V, 220mOhm @ 3A, 10V | 2V @ 250µA | - | 320pF @ 10V, 790pF @ 10V | 4W (Ta), 29W (Tc) | 150°C | - | - | Through Hole | 12-SIP |
