FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMS4816NR2GMOSFET N-CH 30V 6.8A 8SOIC onsemi |
2,558 | 0.00 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.8A (Ta) | - | 10mOhm @ 9A, 10V | 3V @ 250µA | 9.2 nC @ 4.5 V | - | 1060 pF @ 25 V | - | - | - | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
SBVS138LT1GMOSFET N-CH 50V 0.2A SOT-23 onsemi |
6,503 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
STD24N06LT4GMOSFET N-CH 60V 24A DPAK onsemi |
6,843 | 0.00 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Tc) | 5V | 45mOhm @ 10A, 5V | 2V @ 250µA | 32 nC @ 5 V | ±15V | 1140 pF @ 25 V | - | 1.36W (Ta), 62.5W (Tj) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
|
STD25P03LT4GMOSFET P-CH 30V 25A DPAK onsemi |
4,704 | 0.00 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Tc) | 4V, 5V | 80mOhm @ 25A, 5V | 2V @ 250µA | 20 nC @ 5 V | ±15V | 1260 pF @ 25 V | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
|
SSVD5804NT4GMOSFET N-CH 40V 69A DPAK onsemi |
8,993 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDZ663PMOSFET P-CH 20V 2.7A 4WLCSP onsemi |
2,163 | 0.00 |
|
- |
PowerTrench® | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.5V, 4.5V | 134mOhm @ 2A, 4.5V | 1.2V @ 250µA | 8.2 nC @ 4.5 V | ±8V | 525 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|

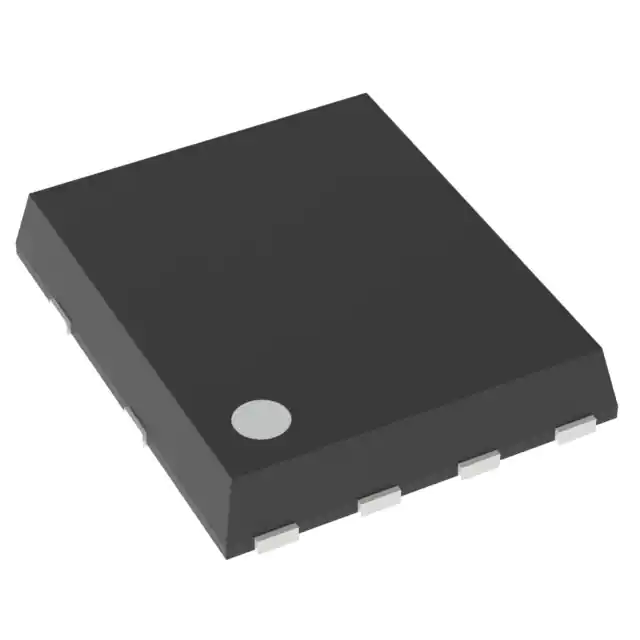

NTMFS4833NST1GMOSFET N-CH 30V 16A/156A SO-8FL onsemi |
5,899 | 0.00 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 156A (Tc) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.5V @ 250µA | 86 nC @ 11.5 V | ±20V | 5250 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
|
NTMFS4833NST3GMOSFET N-CH 30V 16A/156A SO-8FL onsemi |
4,699 | 0.00 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 156A (Tc) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.5V @ 250µA | 86 nC @ 11.5 V | ±20V | 5250 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
|
NTMFS4854NST1GMOSFET N-CH 25V 15.2A/149A SO8FL onsemi |
3,799 | 0.00 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 15.2A (Ta), 149A (Tc) | 3.2V, 10V | 2.5mOhm @ 15A, 10V | 2.5V @ 250µA | 85 nC @ 11.5 V | ±16V | 4830 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
NTP5860NLGMOSFET N-CH 60V 220A TO220AB onsemi |
9,087 | 0.00 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 3mOhm @ 75A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 10760 pF @ 25 V | - | 283W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
