Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82682CFIXED IND 6.8UH 640MA 270MOHM SM Murata Power Solutions Inc. |
1,700 | 0.80 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 640 mA | - | Unshielded | 270mOhm Max | 20 @ 1MHz | 46MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
22R105MCFIXED IND 1MH 210MA 3.63 OHM SMD Murata Power Solutions Inc. |
7,913 | 1.71 |
|
Datasheet |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 210 mA | - | Unshielded | 3.63Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
36472CFIXED IND 4.7UH 3.6A 41 MOHM SMD Murata Power Solutions Inc. |
1,294 | 1.04 |
|
Datasheet |
3600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±25% | 3.6 A | - | Unshielded | 41mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|

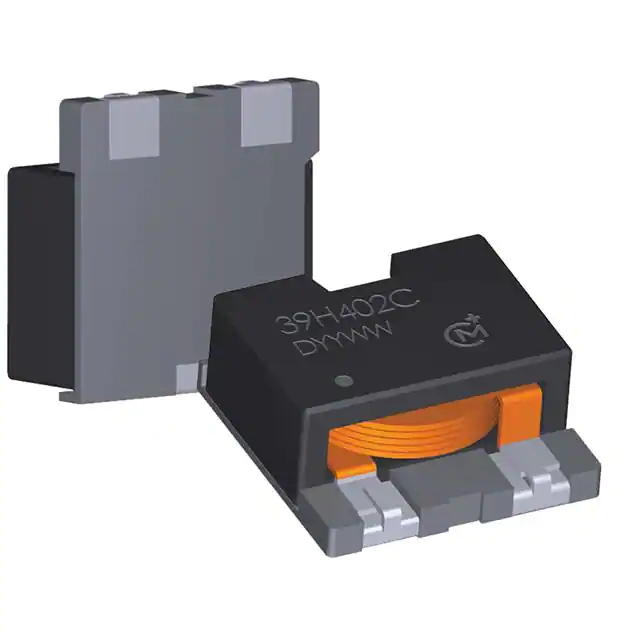

39H402CFIXED IND 4UH 9.7A 8 MOHM SMD Murata Power Solutions Inc. |
1,047 | 3.04 |
|
Datasheet |
3900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4 µH | ±20% | 9.7 A | 10.3A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|

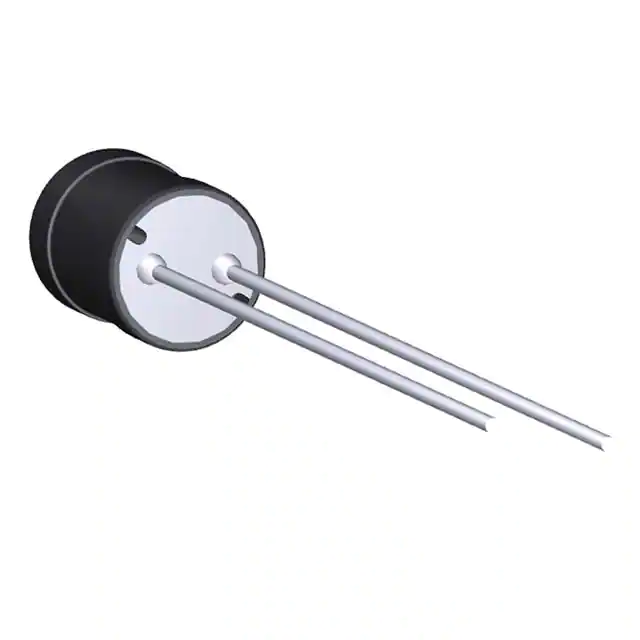

17105CFIXED IND 1MH 190MA 3.3 OHM TH Murata Power Solutions Inc. |
274 | 1.20 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1 mH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 120 @ 100kHz | 2.1MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17104CFIXED IND 100UH 740MA 350MOHM TH Murata Power Solutions Inc. |
175 | 1.20 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 µH | ±10% | 740 mA | - | Unshielded | 350mOhm Max | 90 @ 100kHz | 7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
18R474CFIXED IND 470UH 600MA 465MOHM TH Murata Power Solutions Inc. |
390 | 1.42 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±10% | 600 mA | - | Unshielded | 465mOhm Max | 50 @ 100kHz | 2.81MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R104CFIXED IND 100UH 1.2A 100 MOHM TH Murata Power Solutions Inc. |
301 | 1.42 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 40 @ 100kHz | 7.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R684CFIXED IND 680UH 530MA 630MOHM TH Murata Power Solutions Inc. |
200 | 1.42 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 680 µH | ±10% | 530 mA | - | Unshielded | 630mOhm Max | 48 @ 100kHz | 2.43MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R334CFIXED IND 330UH 730MA 335MOHM TH Murata Power Solutions Inc. |
117 | 1.42 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 330 µH | ±10% | 730 mA | - | Unshielded | 335mOhm Max | 49 @ 100kHz | 3.57MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
