Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4334.123NLTFIXED IND 12UH 730MA 449MOHM SMD Pulse Electronics |
25,339 | 0.43 |
|
Datasheet |
PA4334.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 12 µH | ±20% | 730 mA | 480mA | Shielded | 449mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
BDHE002016081R0MQ1INDUCTOR POWER Pulse Electronics |
11,990 | 0.14 |
|
Datasheet |
BDHE | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 2.3 A | 2.5A | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|

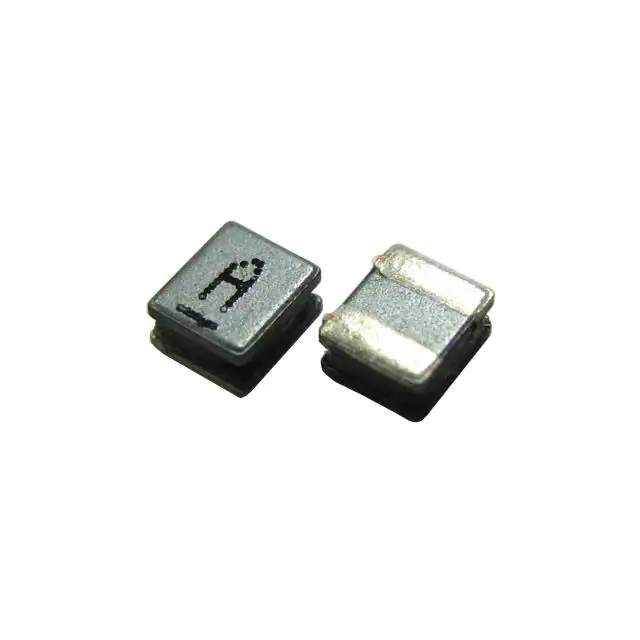

AWVH002520124R7M00FIXED IND 4.7UH 930MA 0.195OHM Pulse Electronics |
8,000 | 0.15 |
|
Datasheet |
AWVH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 930 mA | 1A | Shielded | 195mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
AWVT003030121R0M00INDUCTOR POWER Pulse Electronics |
8,000 | 0.15 |
|
Datasheet |
AWVT | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 2.7 A | 2.79A | Unshielded | 60mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AWVF002520122R2M00INDUCTOR POWER Pulse Electronics |
7,930 | 0.15 |
|
Datasheet |
AWVF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 1.8 A | 1.8A | Shielded | 80mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
|
AWVF00252010100M00INDUCTOR POWER Pulse Electronics |
7,865 | 0.15 |
|
Datasheet |
AWVF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 700 mA | 600mA | Shielded | 535mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.040" (1.02mm) |
|
|
AWVF003030126R8M00INDUCTOR POWER Pulse Electronics |
6,000 | 0.15 |
|
Datasheet |
AWVF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 1.3 A | 1.32A | Shielded | 250mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AWVF00303012100M00INDUCTOR POWER Pulse Electronics |
5,795 | 0.15 |
|
Datasheet |
AWVF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1 A | 1.06A | Shielded | 420mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AWVF003030156R8M00INDUCTOR POWER Pulse Electronics |
4,000 | 0.15 |
|
Datasheet |
AWVF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 1.3 A | 1.34A | Shielded | 235mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
BWCM000604046N8J00INDUCTOR RF Pulse Electronics |
3,950 | 0.15 |
|
Datasheet |
BWCM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 460 mA | - | Unshielded | 180mOhm Max | 42 @ 900MHz | 7.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
