Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMNI00040410100MQXIND 10UH SHLD 20% 1.5A Pulse Electronics |
1,929 | 0.00 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.5 A | 1.65A | Shielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.047" (1.20mm) |
|
AWVT004040121R0M00INDUCTOR POWER Pulse Electronics |
5,987 | 0.19 |
|
Datasheet |
AWVT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 2.7 A | 2.6A | Unshielded | 40mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
|

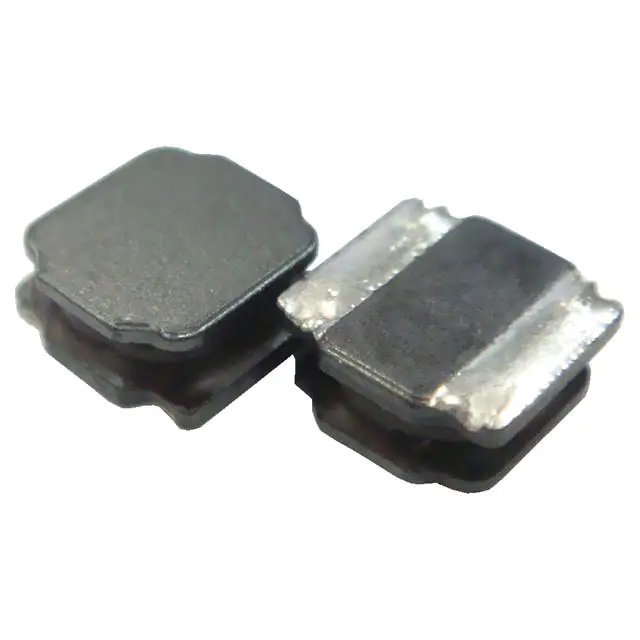

AWVS00404018101M00INDUCTOR POWER Pulse Electronics |
3,182 | 0.19 |
|
Datasheet |
AWVS | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 340 mA | 410mA | Shielded | 1.5Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
AKPE002012102R2TA2INDUCTOR POWER Pulse Electronics |
2,625 | 0.17 |
|
Datasheet |
AKP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±30% | 1.6 A | 500mA | Shielded | 125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
AWVF004040182R2M00INDUCTOR POWER Pulse Electronics |
1,600 | 0.19 |
|
Datasheet |
AWVF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.7 A | 3A | Shielded | 47mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
ADHE002520122R2MQ1INDUCTOR POWER Pulse Electronics |
6,000 | 0.20 |
|
Datasheet |
ADHE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.2 A | 2.9A | Shielded | 87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
BMMA000606302R2MV1INDUCTOR POWER Pulse Electronics |
7,352 | 0.21 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
BMMA000606301R5MV1INDUCTOR POWER Pulse Electronics |
4,978 | 0.21 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
BMMA000606303R3MV1INDUCTOR POWER Pulse Electronics |
4,355 | 0.21 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
BMRB000606301R5MA1INDUCTOR POWER Pulse Electronics |
4,108 | 0.21 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 10 A | 14A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
