Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM5449.103NLTFIXED IND 10UH 5.5A 59 MOHM SMD Pulse Electronics |
3,785 | 0.69 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.5 A | 7A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.331NLTFIXED IND 330NH 25A 2.4MOHM SMD Pulse Electronics |
3,012 | 0.69 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 25 A | 40A | Shielded | 2.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.682NLTFIXED IND 6.8UH 7A 36.8MOHM SMD Pulse Electronics |
2,707 | 0.69 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 7 A | 8A | Shielded | 36.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|

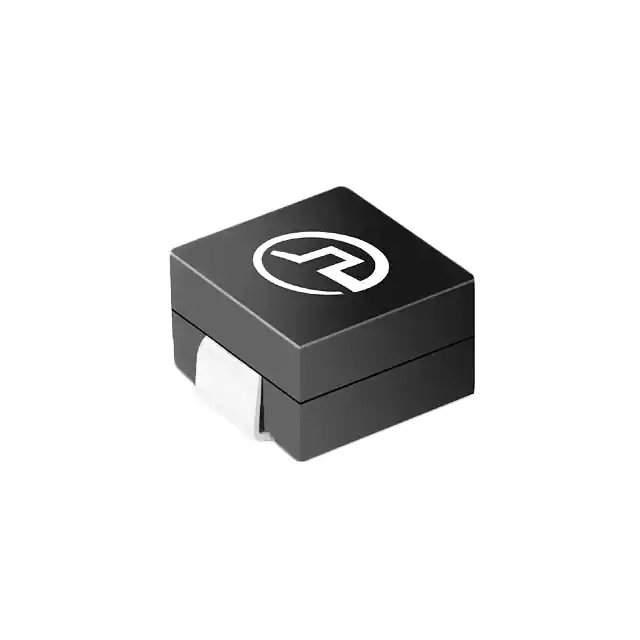

PA3779.141HLTFIXED IND 140NH 56A 0.29MOHM SMD Pulse Electronics |
1,917 | 0.70 |
|
Datasheet |
PA3779.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 140 nH | ±15% | 56 A | 86A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.449" L x 0.276" W (11.40mm x 7.00mm) | 0.315" (8.00mm) |
|
|
PA3779.181HLTFIXED IND 180NH 56A 0.29MOHM SMD Pulse Electronics |
1,460 | 0.70 |
|
Datasheet |
PA3779.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±15% | 56 A | 65A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.449" L x 0.276" W (11.40mm x 7.00mm) | 0.315" (8.00mm) |
|
|
PA3779.241HLTFIXED IND 240NH 37A 0.29MOHM SMD Pulse Electronics |
4,548 | 0.70 |
|
Datasheet |
PA3779.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 240 nH | ±15% | 37 A | 46A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.449" L x 0.276" W (11.40mm x 7.00mm) | 0.315" (8.00mm) |
|
|
PA3779.351HLTFIXED IND 350NH 25A 0.29MOHM SMD Pulse Electronics |
1,361 | 0.70 |
|
Datasheet |
PA3779.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 350 nH | ±15% | 25 A | 29A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.449" L x 0.276" W (11.40mm x 7.00mm) | 0.315" (8.00mm) |
|
APAL000606454R7T80INDUCTOR POWER Pulse Electronics |
1,124 | 0.71 |
|
Datasheet |
APAL | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.3 A | 3.1A | Shielded | 23mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.189" (4.80mm) |
|
|
APAL00060645680T80INDUCTOR POWER Pulse Electronics |
1,458 | 0.71 |
|
Datasheet |
APAL | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.1 A | 810mA | Shielded | 200mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.189" (4.80mm) |
|
|
APAL000808451R5T80INDUCTOR POWER Pulse Electronics |
2,918 | 0.71 |
|
Datasheet |
APAL | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.6 A | 6.3A | Shielded | 10mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.295" W (9.50mm x 7.50mm) | 0.177" (4.50mm) |
