Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMMA00101040100MX1INDUCTOR POWER Pulse Electronics |
930 | 0.48 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6 A | 6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PM4341.103NLTFIXED IND 10UH 3.5A 85 MOHM SMD Pulse Electronics |
394 | 1.17 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3.5 A | 6A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
BPXX00050530222M00INDUCTOR POWER Pulse Electronics |
3,414 | 0.48 |
|
Datasheet |
BPXX | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 mH | ±20% | 150 mA | 80mA | Shielded | 11Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
PA4345.561NLTIND MOLDED POWDER 6.0X5. NPB Pulse Electronics |
3,000 | 0.50 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 10.7 A | 15A | Shielded | 11.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
|
BPXX00040418100M00INDUCTOR POWER Pulse Electronics |
1,999 | 0.49 |
|
Datasheet |
BPXX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.15 A | 1.1A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
PM4341.252NLTFIXED IND 2.5UH 7A 22 MOHM SMD Pulse Electronics |
993 | 0.52 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.5 µH | ±20% | 7 A | 13A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PM4341.222NLTFIXED IND 2.2UH 8A 20 MOHM SMD Pulse Electronics |
977 | 0.52 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|

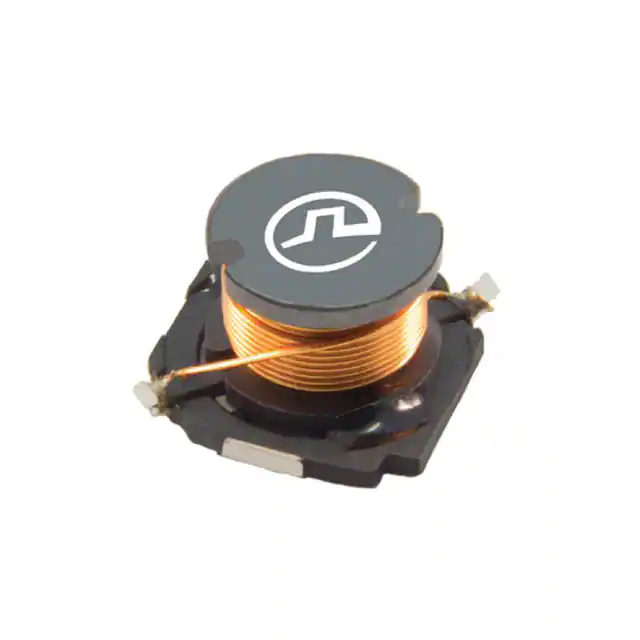

PA4308.822NLTFIXED IND 8.2UH 4.8A 97 MOHM SMD Pulse Electronics |
2,000 | 0.53 |
|
Datasheet |
PA4308.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±30% | 4.8 A | - | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
P1174.103NLFIXED IND 10UH 800MA 73 MOHM SMD Pulse Electronics |
2,455 | 0.00 |
|
Datasheet |
P1174NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 800 mA | 800mA | Shielded | 73mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
PM5400.561NLTFIXED IND 560NH 4.5A 36MOHM SMD Pulse Electronics |
7,998 | 0.55 |
|
Datasheet |
PM5400 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 4.5 A | 6.6A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
