Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2203.561NLTFIXED IND 560NH 17.7A 4.52 MOHM Pulse Electronics |
1,250 | 1.16 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 17.7 A | 22.2A | Unshielded | 4.52mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.601NLTFIXED IND 600NH 17.7A 4.52 MOHM Pulse Electronics |
3,424 | 1.16 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 600 nH | ±20% | 17.7 A | 22A | Unshielded | 4.52mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.801NLTFIXED IND 800NH 13.1A 5.65 MOHM Pulse Electronics |
4,370 | 1.16 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 800 nH | ±20% | 13.1 A | 20A | Unshielded | 5.65mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.821NLTFIXED IND 820NH 12.9A 5.78 MOHM Pulse Electronics |
2,578 | 1.16 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 12.9 A | 19.7A | Unshielded | 5.78mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|

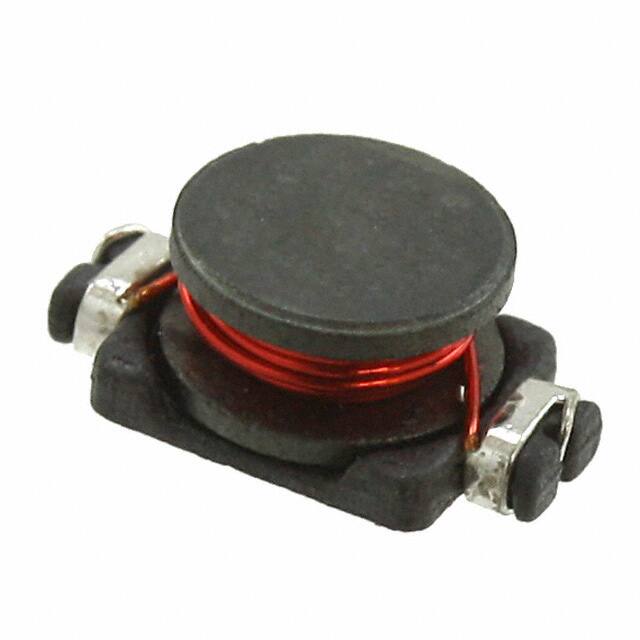

P0770.152NLTFIXED IND 1.5UH 2.6A 50 MOHM SMD Pulse Electronics |
1,199 | 0.51 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 2.6 A | 2.6A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
P0441NLTFIXED IND 33.8UH 290MA 322 MOHM Pulse Electronics |
4,213 | 0.00 |
|
Datasheet |
Ros 1 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 33.8 µH | ±15% | 290 mA | - | Shielded | 322mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.335" L x 0.225" W (8.51mm x 5.72mm) | 0.125" (3.18mm) |
|
BPSF001313753R9T00INDUCTOR POWER Pulse Electronics |
4,313 | 0.55 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±30% | 6.7 A | 9A | Shielded | 10.4mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
PM2201.101NLTFIXED IND 100NH 18A 2.42MOHM SMD Pulse Electronics |
1,449 | 1.20 |
|
Datasheet |
PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 18 A | 38A | Unshielded | 2.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PM2201.152NLTFIXED IND 1.5UH 7.6A 23.5MOHM SM Pulse Electronics |
4,657 | 1.20 |
|
Datasheet |
PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 7.6 A | 8A | Unshielded | 23.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PM2201.221NLTFIXED IND 220NH 16.8A 4.6MOHM SM Pulse Electronics |
1,940 | 1.20 |
|
Datasheet |
PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±20% | 16.8 A | 19.5A | Unshielded | 4.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
