Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53803SNLFIXED IND 118UH 200MA 1.8OHM SMD Pulse Electronics |
4,820 | 1.62 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 118 µH | ±20% | 200 mA | - | Shielded | 1.8Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|

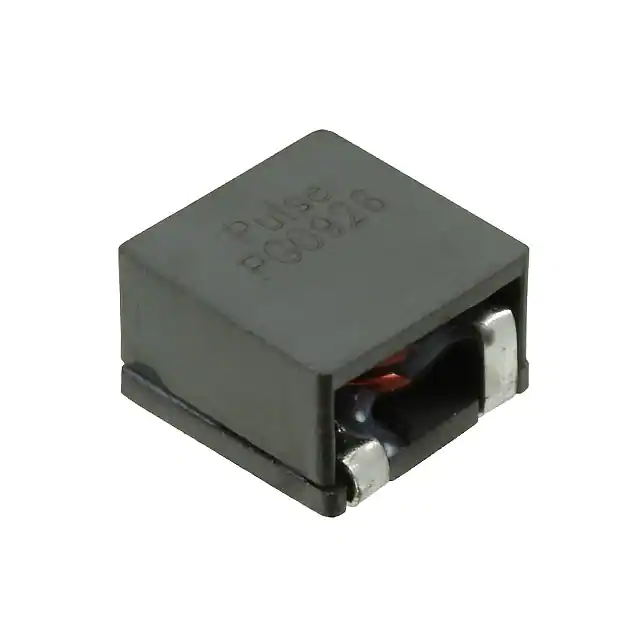

PG0926.102NLTFIXED IND 1UH 30A 1.2 MOHM SMD Pulse Electronics |
2,046 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 30 A | 34A | Unshielded | 1.2mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.153NLTFIXED IND 15UH 8A 12.5 MOHM SMD Pulse Electronics |
2,773 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 8 A | 9A | Unshielded | 12.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.182NLTFIXED IND 1.8UH 22A 2.2 MOHM SMD Pulse Electronics |
2,728 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 22 A | 25A | Unshielded | 2.2mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.223NLTFIXED IND 22UH 7A 21 MOHM SMD Pulse Electronics |
4,322 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 7 A | 7.5A | Unshielded | 21mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.282NLTFIXED IND 2.8UH 19A 2.9 MOHM SMD Pulse Electronics |
4,425 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 19 A | 20A | Unshielded | 2.9mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.461NLTFIXED IND 460NH 44A 0.55MOHM SMD Pulse Electronics |
4,160 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 460 nH | ±20% | 44 A | 50A | Unshielded | 0.55mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.562NLTFIXED IND 5.6UH 14A 4.1 MOHM SMD Pulse Electronics |
2,524 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 14 A | 14A | Unshielded | 4.1mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.722NLTFIXED IND 7.2UH 12A 7 MOHM SMD Pulse Electronics |
3,140 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.2 µH | ±20% | 12 A | 12.5A | Unshielded | 7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.872NLTFIXED IND 8.7UH 11A 8 MOHM SMD Pulse Electronics |
3,128 | 1.75 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.7 µH | ±20% | 11 A | 11.5A | Unshielded | 8mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
