Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2242.281NLTIND PWR MOLDED 0.28UH 35A Pulse Electronics |
990 | 0.00 |
|
Datasheet |
PA2242.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 280 nH | ±20% | 35 A | 58A | Unshielded | 1.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|

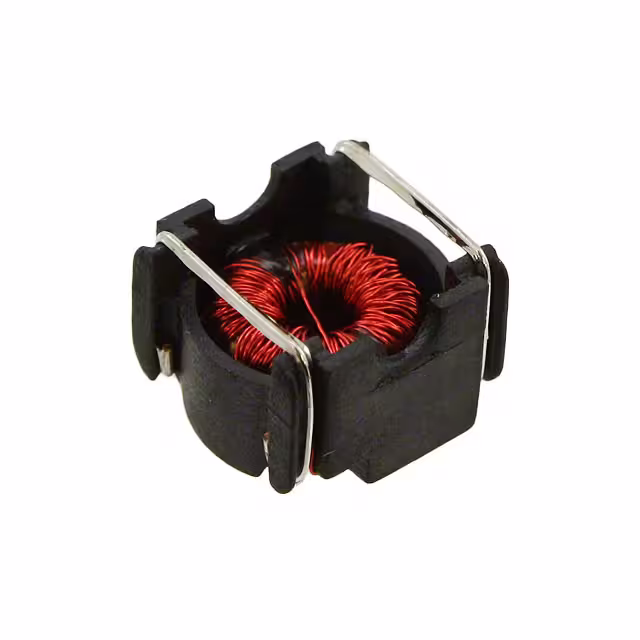

PE-53809SNLFIXED IND 256UH 250MA 2.2OHM SMD Pulse Electronics |
575 | 1.05 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 256 µH | ±20% | 250 mA | - | Shielded | 2.2Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PG0936.681NLFIXED IND 680NH 40A 0.87MOHM SMD Pulse Electronics |
950 | 0.00 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 680 nH | ±20% | 40 A | 62A | Unshielded | 0.87mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.315" (8.00mm) |
|
|
PA2242.561NLTIND PWR MOLDED 0.56UH 32A Pulse Electronics |
996 | 0.00 |
|
Datasheet |
PA2242.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 32 A | 39A | Unshielded | 2.75mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
PE-53652NLFIXED IND 9UH 5.5A 28 MOHM SMD Pulse Electronics |
1,875 | 1.02 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9 µH | - | 5.5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PM5432.822NLTFIXED IND 8.2UH 8A 26.4MOHM SMD Pulse Electronics |
2,245 | 1.21 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 8 A | - | Shielded | 26.4mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
|
PM5432.562NLTFIXED IND 5.6UH 9.9A 15.9MOHM SM Pulse Electronics |
2,240 | 1.21 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 9.9 A | - | Shielded | 15.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
PG0871.681NLTFIXED IND 680NH 19A 2.3 MOHM SMD Pulse Electronics |
2,100 | 1.14 |
|
Datasheet |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 19 A | 24.5A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
PG0871.332NLTFIXED IND 3.3UH 7.1A 13.5MOHM SM Pulse Electronics |
2,075 | 1.14 |
|
Datasheet |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 7.1 A | 10.5A | Shielded | 13.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
PM5432.223NLTFIXED IND 22UH 5A 60.63MOHM SMD Pulse Electronics |
1,807 | 1.21 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5 A | - | Shielded | 60.63mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
