Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PGL6380.151HLTIND PWR BEAD TLVR 150NH 85A Pulse Electronics |
455 | 0.00 |
|
Datasheet |
PGL6380.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 77 A | 85A | Unshielded | 0.37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.453" (11.50mm) |
|
PG0083.472NLTFIXED IND 4.7UH 4.5A 38 MOHM SMD Pulse Electronics |
1,990 | 1.57 |
|
Datasheet |
PG0083 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±25% | 4.5 A | 8A | Unshielded | 38mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
PG0083.182NLTFIXED IND 1.8UH 8A 16 MOHM SMD Pulse Electronics |
1,000 | 1.57 |
|
Datasheet |
PG0083 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±25% | 8 A | 13A | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
PE-53824SNLFIXED IND 26UH 1.48A 100MOHM SMD Pulse Electronics |
600 | 1.51 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 26 µH | ±20% | 1.48 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-92111NLFIXED IND 40UH 4A 27 MOHM TH Pulse Electronics |
1,985 | 1.56 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 40 µH | ±20% | 4 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
|
|
PE-53613NLTFIXED IND 645UH 740MA 1.25OHM SM Pulse Electronics |
430 | 1.55 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 645 µH | - | 740 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|

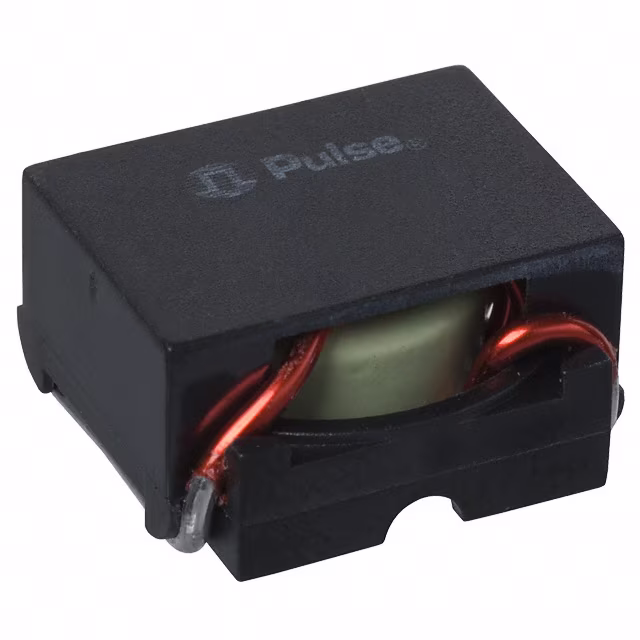

PE-53682NLFIXED IND 4.7UH 10.4A 8.3MOHM SM Pulse Electronics |
1,699 | 1.61 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 4.7 µH | - | 10.4 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.390" (9.91mm) |
|
PG0926.113NLTFIXED IND 11.5UH 9.5A 12MOHM SMD Pulse Electronics |
493 | 3.34 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11.5 µH | ±20% | 9.5 A | 10.5A | Unshielded | 12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PE-53813SNLTFIXED IND 55UH 560MA 500MOHM SMD Pulse Electronics |
304 | 1.62 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 55 µH | ±20% | 560 mA | - | Shielded | 500mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PG0926.223NLFIXED IND 22UH 7A 21 MOHM SMD Pulse Electronics |
1,761 | 0.00 |
|
Datasheet |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 7 A | 7.5A | Unshielded | 21mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
