Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA5003.472NLTFIXED IND 4.7UH 5.9A 36.3MOHM SM Pulse Electronics |
5,552 | 2.01 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±20% | 5.9 A | 8.2A | Shielded | 36.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
PA4343.501NLTFIXED IND 500NH 40A 1.25MOHM SMD Pulse Electronics |
2,991 | 2.03 |
|
Datasheet |
PA4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 500 nH | ±20% | 40 A | 60A | Shielded | 1.25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
PA5001.561NLTFIXED IND 560NH 12A 9.3MOHM SMD Pulse Electronics |
3,868 | 2.08 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 560 nH | ±20% | 12 A | 14A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PA5001.182NLTFIXED IND 1.8UH 7A 28 MOHM SMD Pulse Electronics |
3,200 | 2.08 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±20% | 7 A | 7.5A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PA5001.152NLTFIXED IND 1.5UH 7.6A 23.5MOHM SM Pulse Electronics |
1,625 | 2.08 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±20% | 7.6 A | 8A | Shielded | 23.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PA5001.122NLTFIXED IND 1.2UH 9A 17.9MOHM SMD Pulse Electronics |
8,493 | 2.08 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 µH | ±20% | 9 A | 9A | Shielded | 17.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

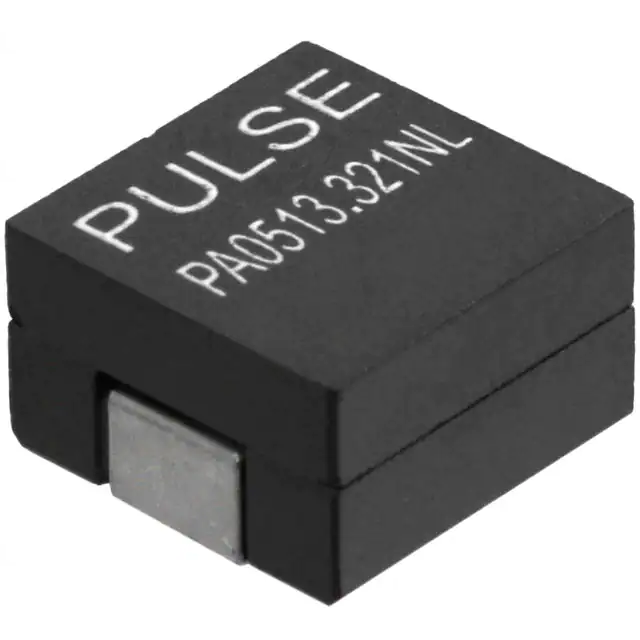

PA0513.321NLTFIXED IND 320NH 41A 0.32MOHM SMD Pulse Electronics |
2,155 | 2.15 |
|
Datasheet |
PA0513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±20% | 41 A | 50A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
PA5432.223NLTFIXED IND 22UH 5A 60.63MOHM SMD Pulse Electronics |
1,770 | 1.03 |
|
Datasheet |
PA5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5 A | - | Shielded | 60.63mOhm Max | - | 9MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
|
PA5432.682NLTFIXED IND 6.8UH 9A 20.8MOHM SMD Pulse Electronics |
3,253 | 1.03 |
|
Datasheet |
PA5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 9 A | - | Shielded | 20.8mOhm Max | - | 18MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
PA4343.472ANLTFIXED IND 4.7UH 17A 8 MOHM SMD Pulse Electronics |
11,728 | 2.19 |
|
Datasheet |
PA4343.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 17 A | 21A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
