Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53663NLTFIXED IND 9.3UH 7.2A 18.7MOHM SM Pulse Electronics |
1,054 | 2.72 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9.3 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PA2729.502NLFIXED IND 4.9UH 16.4A 3.4MOHM SM Pulse Electronics |
3,134 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 4.9 µH | ±15% | 16.4 A | 20.9A | Shielded | 3.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

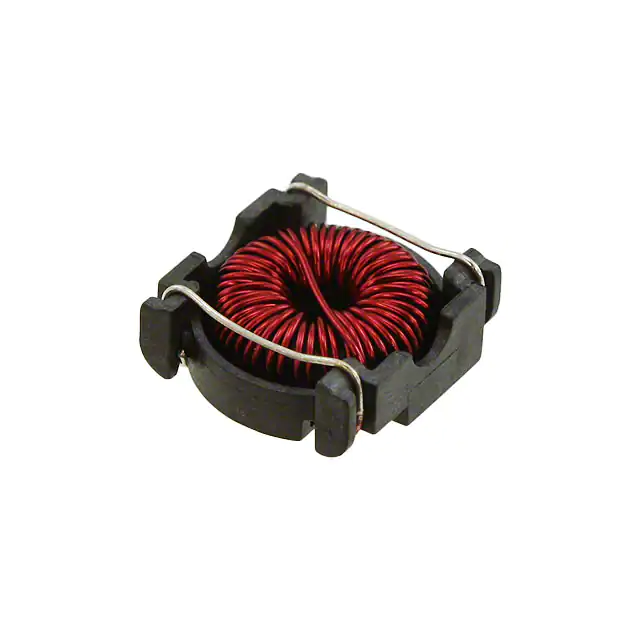

P0147NLFIXED IND 56UH 1.65A 139MOHM SMD Pulse Electronics |
1,397 | 5.60 |
|
Datasheet |
Bobcat | Nonstandard | Tube | Active | Toroidal | - | 56 µH | - | 1.65 A | - | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
PE-52651NLFIXED IND 1MH 500MA 2.6 OHM TH Pulse Electronics |
2,903 | 4.33 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 1 mH | ±20% | 500 mA | - | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
P0850SNLFIXED IND 23UH 5A 13 MOHM SMD Pulse Electronics |
4,417 | 5.60 |
|
Datasheet |
Bigfoot | Nonstandard | Tube | Active | Toroidal | - | 23 µH | ±20% | 5 A | - | Shielded | 13mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

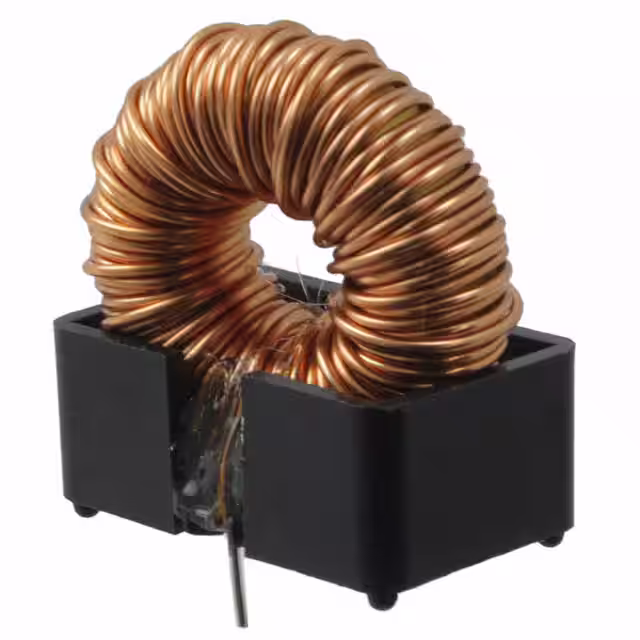

PE-54042NLFIXED IND 167UH 2.5A 140 MOHM TH Pulse Electronics |
2,719 | 5.60 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 167 µH | ±20% | 2.5 A | - | Shielded | 140mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
BWVT004040122R2M00INDUCTOR POWER Pulse Electronics |
1,000 | 0.17 |
|
Datasheet |
BWVT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.07 A | 1.71A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
|
BWVS004040263R3M00INDUCTOR POWER Pulse Electronics |
465 | 0.17 |
|
Datasheet |
BWVS | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 2.25 A | 2.25A | Shielded | 45mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
BWVS00606045221M00INDUCTOR POWER Pulse Electronics |
973 | 0.18 |
|
Datasheet |
BWVS | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 340 mA | 730mA | Shielded | 1.3Ohm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
BWVC006060454R7M00INDUCTOR POWER Pulse Electronics |
1,950 | 0.18 |
|
Datasheet |
BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.6 A | 6.12A | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
