Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0849SNLFIXED IND 33UH 5A 19 MOHM SMD Pulse Electronics |
706 | 5.82 |
|
Datasheet |
Bigfoot | Nonstandard | Tube | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 19mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

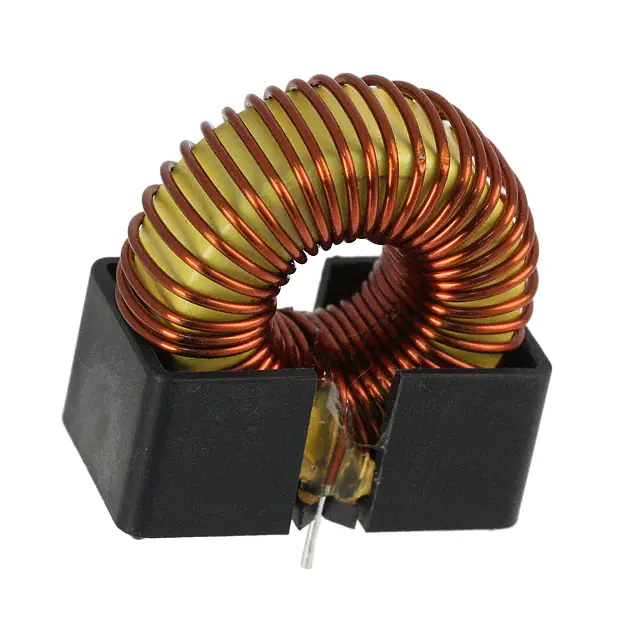

PE-53116NLFIXED IND 220UH 3A 70 MOHM TH Pulse Electronics |
820 | 5.91 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 220 µH | ±20% | 3 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|

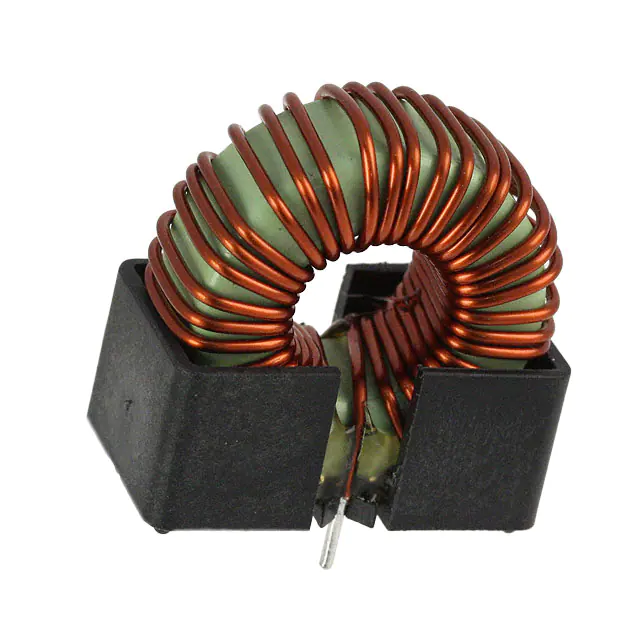

PE-92112KNLFIXED IND 100UH 5A 34 MOHM TH Pulse Electronics |
450 | 6.12 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
PA4349.103ANLTFIXED IND 10UH 33A 4.15 MOHM SMD Pulse Electronics |
1,099 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 30 A | 20A | Shielded | 4.15mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.473ANLTFIXED IND 47UH 17A 20.8 MOHM SMD Pulse Electronics |
621 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 14 A | 10A | Shielded | 20.8mOhm Max | - | 3.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.104ANLTFIXED IND 100UH 11A 40 MOHM SMD Pulse Electronics |
608 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 9.5 A | 7.5A | Shielded | 40mOhm Max | - | 1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.472ANLTFIXED IND 4.7UH 47A 2.2 MOHM SMD Pulse Electronics |
267 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 44 A | 34A | Shielded | 2.2mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|

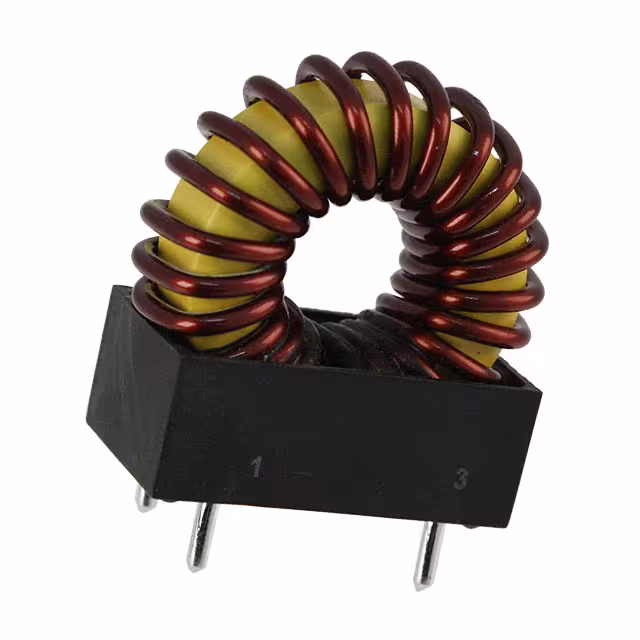

PE-51506NLFIXED IND 17UH 17A 6.5 MOHM TH Pulse Electronics |
569 | 9.34 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 17 µH | - | 17 A | - | Unshielded | 6.5mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
BSCQ000603032N0B00FIXED IND 2NH 600MA 150MOHM SMD Pulse Electronics |
276,722 | 0.10 |
|
Datasheet |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.1nH | 600 mA | - | Unshielded | 150mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
BSCH000603033N6S00FIXED IND 3.6NH 310MA 250MOHM SM Pulse Electronics |
246,628 | 0.10 |
|
Datasheet |
BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.6 nH | ±0.3nH | 310 mA | - | Unshielded | 250mOhm Max | 4 @ 100MHz | 6.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
