Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-4LM150MFIXED IND 15UH 500MA 300MOHM SMD Panasonic Electronic Components |
3,685 | 0.00 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 500 mA | - | Shielded | 300mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

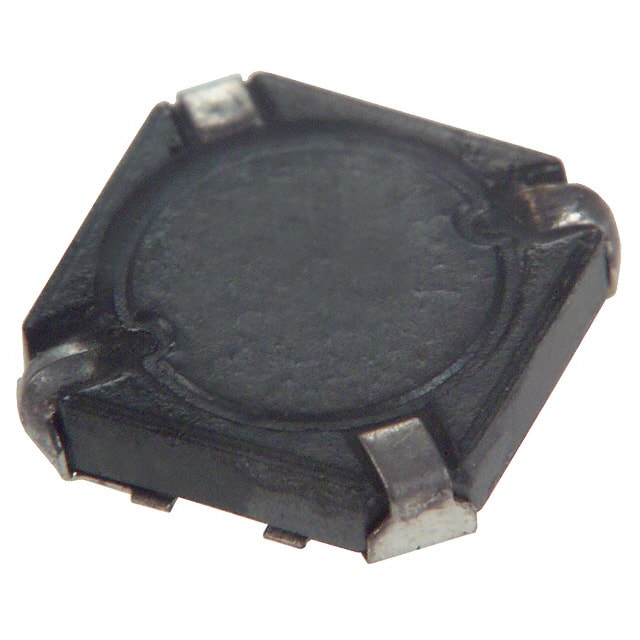

ELL-6GM7R5NFIXED IND 7.5UH 1.05A 110MOHM SM Panasonic Electronic Components |
1,361 | 0.00 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 7.5 µH | ±30% | 1.05 A | - | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|
|
ELL-6GM100MFIXED IND 10UH 930MA 150MOHM SMD Panasonic Electronic Components |
2,751 | 0.00 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 930 mA | - | Shielded | 150mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|
|
ELL-6GM220MFIXED IND 22UH 620MA 320MOHM SMD Panasonic Electronic Components |
4,673 | 0.00 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 620 mA | - | Shielded | 320mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|
|
ELL-6GM560MFIXED IND 56UH 380MA 700MOHM SMD Panasonic Electronic Components |
2,114 | 0.65 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±20% | 380 mA | - | Shielded | 700mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|
ELL-6PM3R3NFIXED IND 3.3UH 1.85A 35MOHM SMD Panasonic Electronic Components |
3,552 | 0.00 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.85 A | - | Shielded | 35mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM7R5NFIXED IND 7.5UH 1.3A 70 MOHM SMD Panasonic Electronic Components |
2,417 | 1.60 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 7.5 µH | ±30% | 1.3 A | - | Shielded | 70mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM100MFIXED IND 10UH 1A 85 MOHM SMD Panasonic Electronic Components |
4,431 | 0.00 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 1 A | - | Shielded | 85mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM120MFIXED IND 12UH 950MA 110MOHM SMD Panasonic Electronic Components |
1,906 | 1.60 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 950 mA | - | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM220MFIXED IND 22UH 700MA 200MOHM SMD Panasonic Electronic Components |
3,234 | 0.00 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 700 mA | - | Shielded | 200mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
