Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-15E102LFIXED IND 1MH 950MA 490 MOHM TH Panasonic Electronic Components |
3,974 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 950 mA | - | Shielded | 490mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E390LFIXED IND 39UH 3.8A 33 MOHM TH Panasonic Electronic Components |
4,491 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 3.8 A | - | Shielded | 33mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ETQ-P2H0R3BFAFIXED IND 290NH 36A 540 MOHM SMD Panasonic Electronic Components |
1,192 | 0.00 |
|
- |
PCC-D125H (NX2) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | - | - | 290 nH | ±20% | 36 A | - | Shielded | 540mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|

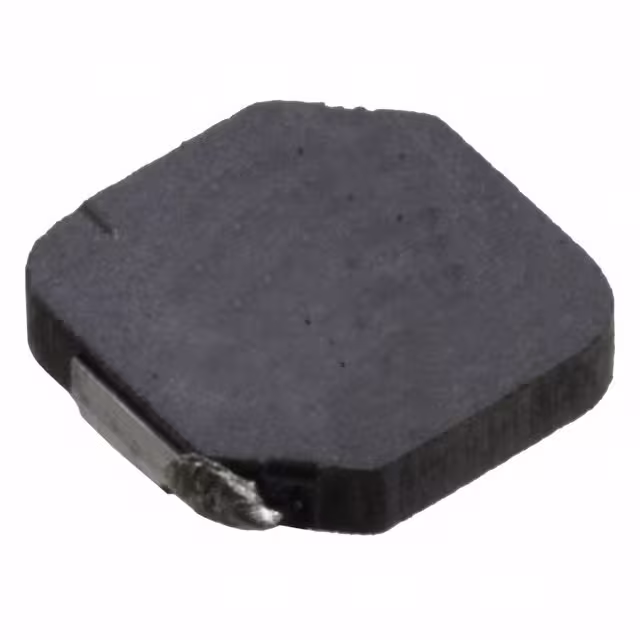

ETQ-P1W1R0WFPFIXED IND 1UH 4.4A 46.5 MOHM SMD Panasonic Electronic Components |
4,622 | 0.00 |
|
Datasheet |
PCC-M0512W (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 4.4 A | - | Shielded | 46.5mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
ELC-08D100EFIXED IND 10UH 2.8A 22 MOHM TH Panasonic Electronic Components |
3,876 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 10 µH | ±20% | 2.8 A | - | Unshielded | 22mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D101EFIXED IND 100UH 800MA 120MOHM TH Panasonic Electronic Components |
1,642 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 100 µH | ±10% | 800 mA | - | Unshielded | 120mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D102EFIXED IND 1MH 290MA 1.3 OHM TH Panasonic Electronic Components |
3,583 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1 mH | ±10% | 290 mA | - | Unshielded | 1.3Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D151EFIXED IND 150UH 700MA 200MOHM TH Panasonic Electronic Components |
3,987 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 150 µH | ±10% | 700 mA | - | Unshielded | 200mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D220EFIXED IND 22UH 2A 34 MOHM TH Panasonic Electronic Components |
4,187 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 22 µH | ±10% | 2 A | - | Unshielded | 34mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D222EFIXED IND 2.2MH 200MA 2.8 OHM TH Panasonic Electronic Components |
3,974 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.2 mH | ±10% | 200 mA | - | Unshielded | 2.8Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
