Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-QE10NGFAFIXED IND 10NH 450MA 210MOHM SMD Panasonic Electronic Components |
4,768 | 0.43 |
|
Datasheet |
QE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 10 nH | ±2% | 450 mA | - | Unshielded | 210mOhm Max | 15 @ 100MHz | 5.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
ELC-3FNR20NFIXED IND 200NH 2.5A SMD Panasonic Electronic Components |
4,371 | 0.00 |
|
- |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 200 nH | ±30% | 2.5 A | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
ELJ-PB820KFFIXED IND 82UH 160MA 3.5 OHM SMD Panasonic Electronic Components |
3,264 | 0.00 |
|
Datasheet |
PB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±10% | 160 mA | - | Unshielded | 3.5Ohm Max | 10 @ 2.52MHz | 6.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

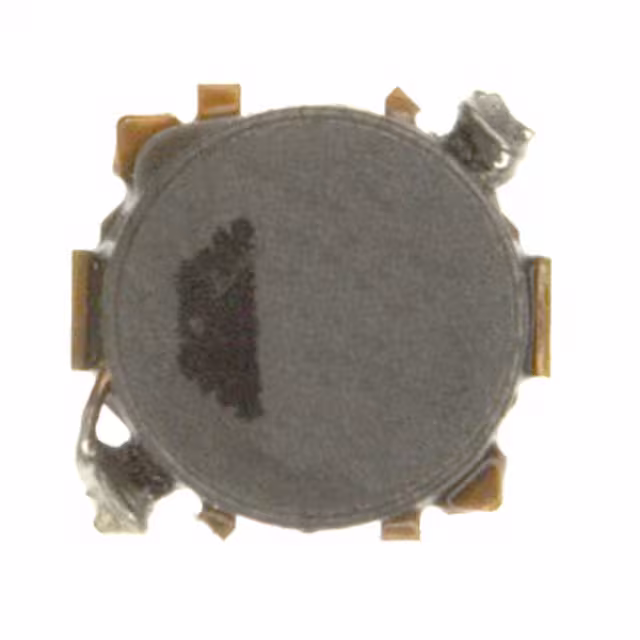

ELL-4LG1R5NAFIXED IND 1.5UH 1.8A 48 MOHM SMD Panasonic Electronic Components |
4,845 | 0.68 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.8 A | 1.7A | Shielded | 48mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

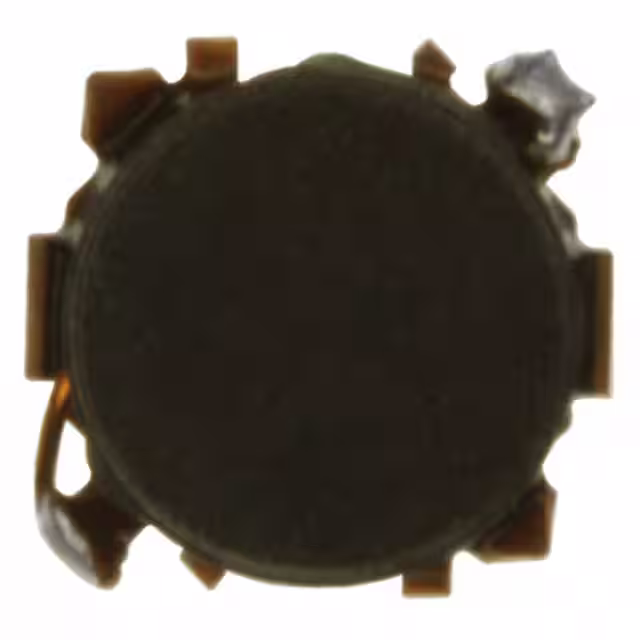

ELL-4LG2R7NAFIXED IND 2.7UH 1.55A 63MOHM SMD Panasonic Electronic Components |
1,677 | 0.68 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±30% | 1.55 A | 1.4A | Shielded | 63mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
ELL-4LG6R2NAFIXED IND 6.2UH 1.1A 140MOHM SMD Panasonic Electronic Components |
4,849 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.2 µH | ±30% | 1.1 A | 930mA | Shielded | 140mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

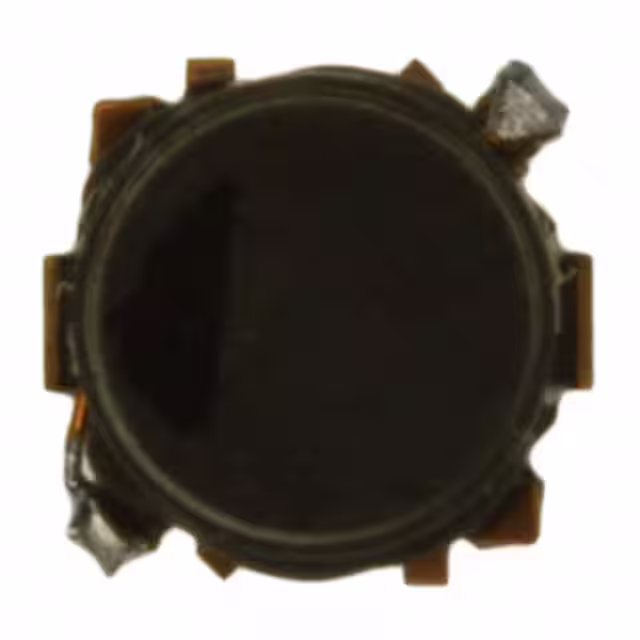

ELL-4LG100MAFIXED IND 10UH 950MA 200MOHM SMD Panasonic Electronic Components |
2,215 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 950 mA | 800mA | Shielded | 200mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
ELL-4LG330MAFIXED IND 33UH 510MA 610MOHM SMD Panasonic Electronic Components |
3,528 | 0.68 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 510 mA | 430mA | Shielded | 610mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
ELL-4LG101MAFIXED IND 100UH 260MA 2.2OHM SMD Panasonic Electronic Components |
1,997 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 260 mA | 250mA | Shielded | 2.2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

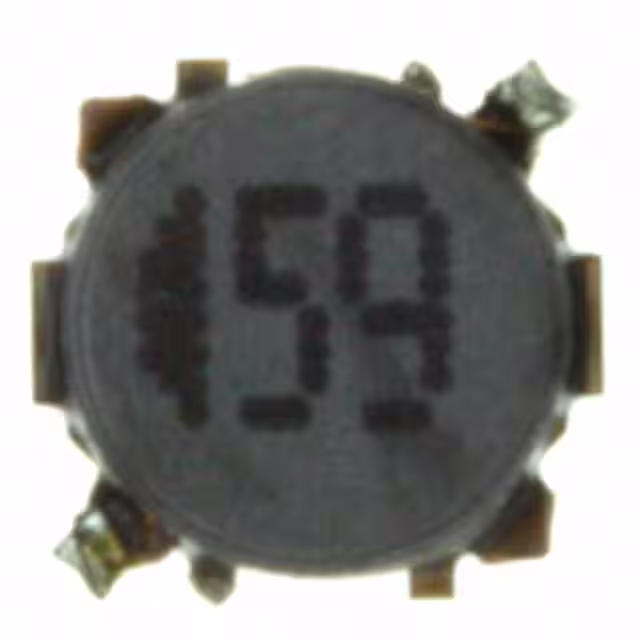

ELL-4LG151MAFIXED IND 150UH 220MA 3 OHM SMD Panasonic Electronic Components |
2,402 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 150 µH | ±20% | 220 mA | 220mA | Shielded | 3Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
